DC2509A

Gleanergy Multi-Source Energy Harvesting Demo Board with Battery Chargers and Life-Extenders for Use with DC2321A Dust Demo Board

Buy Now

Top

Overview

Product Details

Product Details

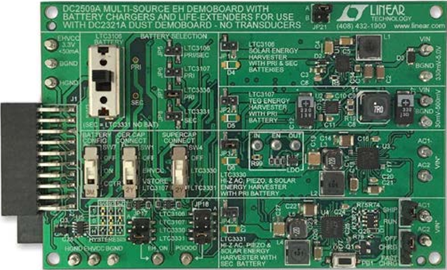

The DC2509A development platform is a versatile energy harvesting demo board that is capable of accepting solar, thermal, and piezoelectric energy sources or any high impedance AC or DC source. The board contains four independent power circuits consisting of the following EH ICs:

LTC3106 – 300 mA, Low Voltage Buck-Boost Converter with PowerPath^™ and 1.5μA Quiescent Current
LTC3107 – Ultralow Voltage Energy Harvester and Primary Battery Life Extender
LTC3330 – Nanopower Buck-Boost DC/DC with Energy Harvesting Battery Life Extender
LTC3331 – Nanopower Buck-Boost DC/DC with Energy Harvesting Battery Charger
LTC2935-2 – Ultralow Power Supervisor with Power-Fail Output Selectable Thresholds
