DC2504A

LT8630 Demo Board | Synchronous Buck, 13V ≤ V_IN ≤ 100V, V_OUT = 12V @ 600mA

Top

Overview

Product Details

Product Details

Demonstration circuit 2504A is a step-down converter featuring LT8630. The LT8630 is a monolithic, variable frequency, current mode synchronous step-down switching regulator. The demo board is designed for 12V output from a 13V to 100V input. The wide input range makes it suitable for regulating power from a variety of sources, including automotive, industrial systems and telecom supplies. The power switch, compensation and other necessary circuits are inside of the LT8630 to minimize external components and simplify design.

Applicable Parts

LT8630

Documentation & Resources

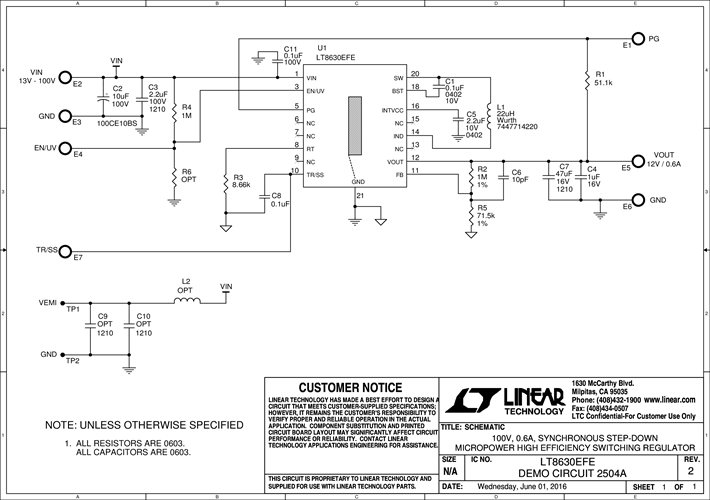

Demo Board Schematic

DC2504A - Schematic
11/14/2016

PDF

32K

User Guides

DC2504A - Demo Manual
11/14/2016

PDF

394K

Evaluation Design Files

DC2504A - Design Files
11/14/2016

ZIP

838K

Software

LTspice

ASC

3.00K

LT8630 Demo Circuit - High Efficiency µPower Buck Regulator (13-100V to 12V @ 600mA)
