DC2380A-A

LTC7851EUHH Demo Board | 4-Phase Voltage Mode Buck Controller, 7V ≤ V_IN ≤ 14V; V_OUT1 = 1.8V @ 30A, V_OUT2 = 1.5V @ 30A, V_OUT3 = 1.2V @ 30A, V_OUT4 = 1V @ 30A

Buy Now

Top

Overview

Product Details

Product Details

Demonstration circuit DC2380A features the LTC7851, a high performance 4-phase step-down, voltage mode controller. The DC2380A-A operates with a 7V to 14V input supply voltage and provides the follow four high current outputs: 1.8V @ 30A, 1.5V @ 30A, 1.2V @ 30A and 1.0V @ 30A. Since the LTC7851 does not include MOSFET drivers, its PWM outputs drive external DrMOS devices.

Applicable Parts

LTC7851

Documentation & Resources

Demo Board Schematic

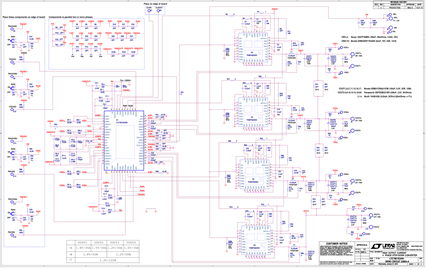

DC2380A-A - Schematic
3/29/2016

PDF

95K

User Guide

DC2380A - Demo Manual
3/29/2016

PDF

920K

Evaluation Design File

DC2380A - Design Files
5/1/2017

ZIP

2M

Software

LTpowerCAD

LTC7851-1/LTC4449 Project - Quad Output, Multiphase Step-Down Voltage Mode DC/DC Controller (7-14V to 1.8V, 1.5V, 1.2V & 1V @ 30A)

LTC7851/LTC4449 Project - Quad Output, Multiphase Step-Down Voltage Mode DC/DC Controller (7-14V to 1.8V, 1.2V & 1V @ 30A)

LTspice

ASC

20.15 K

LTC7851/LTC4449 Demo Circuit - High Current, Quad Output Synchronous Buck Converter with Discrete Gate Drivers and MOSFETs (7-14V to 1.8V, 1.5V, 1.2V, 1.0V @ 30A)
