DC2283A

LTC3884EUK Demo Board | LTC3884(×2) 4-Phase PMBus Buck, 7V ≤ V_IN ≤ 14V; 0.5V ≤ V_OUT ≤ 1.5V @ 160A

Top

Overview

Product Details

Product Details

Demonstration circuit 2283A is a high efficiency, high density, single-output Buck converter with 7V to 14V input range. The output voltage is adjustable from 0.5V to 1.5V, and can supply up to 160A of load current with a 1V output. The demo board offers the option to be configured as a dual-output converter, contact factory for details. V_OUT0 can supply a 40A maximum load current and V_OUT1 can supply a 120A maximum load current. The demo board features the LTC3884, a dual output poly phase step-down controller for ultra-low DCR sensing with digital power system management. Please see LTC3884 data sheet for more detailed information.

Applicable Parts

LTC3884
LTC3884-1

Documentation & Resources

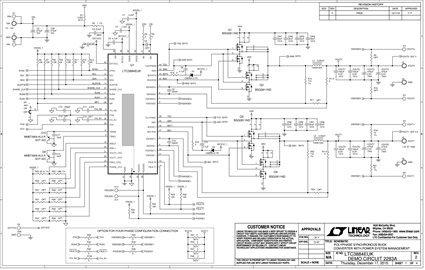

Demo Board Schematic

DC2283A - Schematic
4/27/2016

PDF

140K

User Guide

DC2283A - Demo Manual
4/27/2016

PDF

953K

Evaluation Design File

DC2283A - Design Files
4/27/2016

ZIP

6M

Software

LTpowerCAD

LTPC

18.19 K

LTC3884 Project - High Current, 4-Phase Buck Converter with Ultra-Low DCR Current Sensing and PMBus (7-14V to 1V @ 160A)
