DC2018A

LT8330 Demo Board | Dual circuits. 1) 10V to 36V input to 48V at 135mA & 2) 4V to 36V input to -12V at 270mA

Top

Overview

Product Details

Product Details

Demonstration circuit 2018A features the LT8330, a low I_Q boost/SEPIC/inverting converter with a 1A, 60V switch.

The LT8330 allows higher input and output voltages than comparable converters and also significantly reduces input current at light loads and no load. The LT8330 regulates either positive or negative outputs and has an internally programmed switching frequency of 2MHz.

Markets and Technologies

Applicable Parts

LT8330

Documentation & Resources

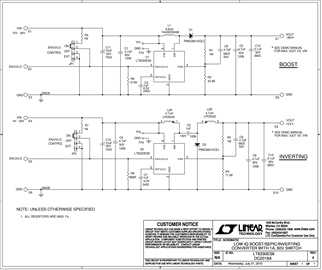

Demo Board Schematic

DC2018A - Schematic
9/4/2015

PDF

28K

User Guide

DC2018A - Demo Manual
9/4/2015

PDF

291K

Evaluation Design File

DC2018A - Design Files
9/4/2015

ZIP

849K

Software

LTpowerCAD

LT8330 Project - Boost Controller (10-36V to 48V @ 140mA)

LTspice

ASC

2.00K

LT8330 Demo Circuit - Inverting Converter (4-36V to -12V @ 270mA)

ASC

2.00K

LT8330 Demo Circuit - 48V Boost Converter (10-36V to 48V @ 135mA)
