DC2017A

LTM8055 Demo Board | Buck-Boost μModule Regulator, 5V ≤ V_IN ≤ 36V, V_OUT = 12V at 6A

Top

Overview

Product Details

Product Details

Demonstration circuit 2017A features the LTM8055, a buck-boost μModule^® regulator that accepts input voltages lower, higher or the same as the output, but is also highly efficient due to its four-switch architecture. The output for DC2017A is 12V and the input voltage range is 5V to 36V. The maximum output current is 6A and the switching frequency is 600kHz.

Markets and Technologies

Healthcare (1)
- In Vitro Diagnostics

Applicable Parts

LTM8055
LTM8055-1

Documentation & Resources

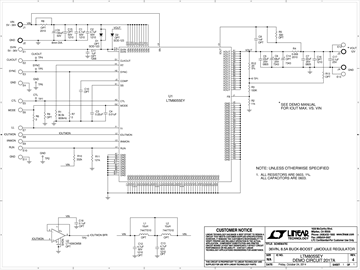

Demo Board Schematic

DC2017A - Schemtaic
2/6/2015

PDF

35K

User Guides

DC2017A - Demo Manual
2/6/2015

PDF

910K

Evaluation Design Files

DC2017A - Design Files
2/6/2015

ZIP

991K

Software

LTpowerCAD

LTM8055 Project - Buck-Boost μModule Regulator (5-36V to 12V @ 8.5A)

LTspice

ASC

5.00K

LTM8055 Demo Circuit - Paralleled Synchronous Buck-Boost Regulator with Accurate Current Limit (7-36V to 12V @ 12A)

ASC

2.00K

LTM8055 Demo Circuit - High Efficiency Buck-Boost Regulator with Accurate Current Limit & Output Current Monitor (5-36V to 12V @ 6A)
