设计、搭建、测试

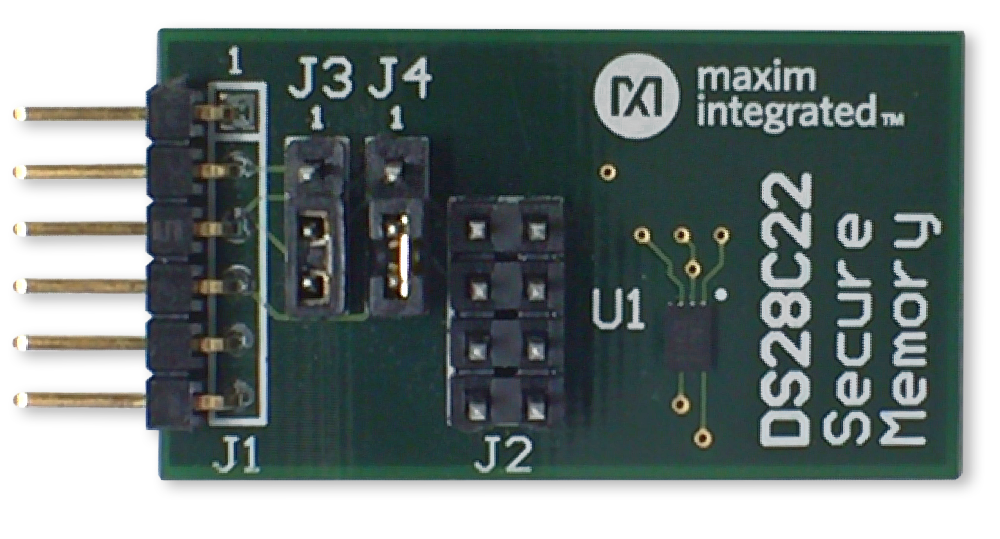

图示的电路板已装配完成且经过测试。

概览

设计资源

设计集成文件

  • Schematic
  • PCB Layout
  • PCB Gerber files
  • BOM
下载设计文件 736.88 K

评估硬件

产品型号带"Z"表示符合RoHS标准。评估此电路需要下列选中的电路板

  • MAXREFDES43# ($26.20) Secure Authentication Design with I2C SHA-256
查询库存和在线购买

描述

The MAXREFDES43# is an I2C-based authentication reference design, built to authenticate peripherals to Xilinx® FPGAs. Using the provided example code, the FPGA executes a challenge-response sequence with the DS28C22 to ensure the authenticity of a module, peripheral, or subsystem. The DS28C22 communicates on an I2C bus, providing a standard communication interface. The MAXREFDES43# is equipped with a Pmod connector for immediate testing using an Avnet ZedBoard. The simplicity of this design enables rapid adoption into any peripheral requiring security.

Refer to the Details section for more information. Design files including schematic, PCB files, and bill of materials (BOM) can be downloaded from the Design Resources section. Firmware is available upon request, following the execution of a nondisclosure agreement.

优势和特点

  • SHA-256 authentication
  • I2C interface
  • Example source code
  • Pmod-compatible form factor

Competitive Advantages

  • Crypto-strong authentication
  • Fast performance with hardware acceleration
  • 所用产品

    详情

    The proliferation of Internet-connected or Internet of Things (IoT) devices manifests itself in multiple applications including industrial, medical, and energy solutions. This increased connectedness requires enhanced security to protect IP, enable system features using software, and prevent counterfeiting. The MAXREFDES43# subsystem reference design uses the DS28C22 to immediately implement SHA-256 authentication on Xilinx FPGAs over an I2C serial bus. The MAXREFDES43# differs from the MAXREFDES34#, which uses the DS28E15 to communicate over the single-contact 1-Wire® bus. The reference code defines a SHA-256 processor on the host FPGA.

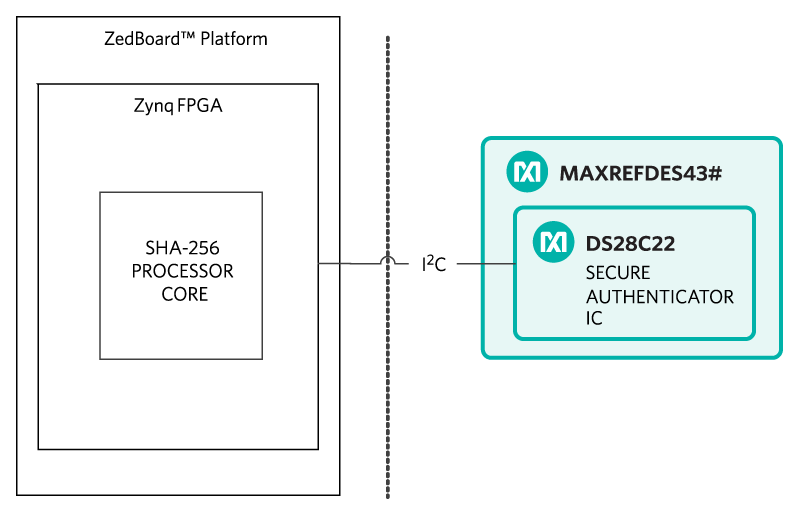

    Figure 1. The MAXREFDES43# subsystem design block diagram with development platform.

    Figure 1. The MAXREFDES43# subsystem design block diagram with development platform.

    The MAXREFDES43# interfaces with FPGA development boards using a 6-pin Pmod connector as illustrated. The MAXREFDES43# is configured with jumpers, J3 and J4, to allow for configuration with the ZedBoard and with alternate configurations. Both configurations are shown below. To interface with the ZedBoard, place jumpers between pins 2 and 3 of both J3 and J4. When plugging the MAXREFDES43# into a host board, make sure to correctly align the pins with the host Pmod connector, as shown in Figure 2 and Figure 3.

    Figure 2. Pmod connector.

    Figure 2. Pmod connector.

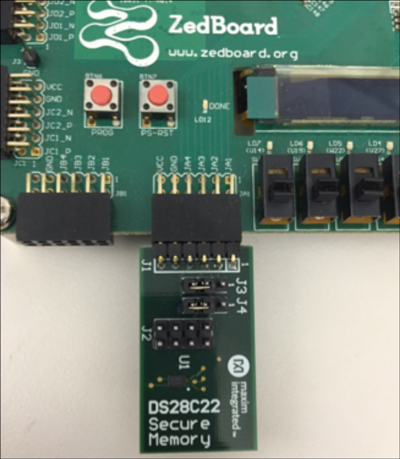

    Figure 3. The MAXREFDES43# subsystem design correctly inserted into the ZedBoard development platform. Note that the MAXREFDES43# board is plugged into the top row of the Pmod connector on the ZedBoard.

    Figure 3. The MAXREFDES43# subsystem design correctly inserted into the ZedBoard development platform. Note that the MAXREFDES43# board is plugged into the top row of the Pmod connector on the ZedBoard.


    Table 1 shows the supported platforms and ports.

    Table 1. Supported Platforms and Ports
    Supported Platforms Ports
    ZedBoard platform (Zynq®-7020) JA1

    For symmetric authentication schemes like SHA-256, protection of both the secure authenticator secret key, along with the FPGA secret key, are important. Symmetric authentication implementations with poor FPGA secret key security can be risky. To this end, the DS28C22 uses DeepCover® techniques to protect against invasive and noninvasive attacks on its secret key; the reference design spells out various techniques to protect the FPGA secret key.

    Additional detail on secret key protection techniques may be found in application note 5803, "Safeguard Your FPGA System with a Secure Authenticator."

    The MAXREFDES43# firmware design supports the ZedBoard kit and targets an ARM® Cortex®-A9 processor placed inside a Xilinx Zynq system-on-chip (SoC).

    The firmware allows for immediate interfacing to the hardware. The firmware is written in C, developed using the Xilinx SDK tool, based on the Eclipse open source standard.

    The firmware program sequence is used to compute and lock the secret (CLS), write page data to the DS28C22, and authenticate the DS28C22. The complete source code speeds customer development. Code documentation resides in the corresponding firmware platform files.

    Required equipment:

    • Windows® PC with two USB ports
    • MAXREFDES43# board
    • MAXREFDES43# supported platform (i.e., the ZedBoard kit)

    Download, read, and carefully follow each step in the appropriate MAXREFDES43# Quick Start Guide.
