优势和特点

Stand-Alone AccuCharge™ Buck Charger
- 13.7V Input Operating Voltage, up to 16V protection
- I²C or Resistor Configured Fast Charge Current 100mA to 3150mA
- I²C or Resistor Configured Charge Termination Voltage 3.45V to 4.5V
ModelGauge m5 EZ Algorithm
- Percent, Capacity, Time-to-Empty/Full, Age
- Cycle+™ Age Forecast
Full Protection Solution On-Board for Evaluation
Precision Measurement Without Calibration
On-Board I²C Communication Interface with Built-In MAXUSB Interface
Integrated USB Detection
Windows 7 or Newer Compatible Software
Proven PCB Layout
Fully Assembled and Tested

产品详情

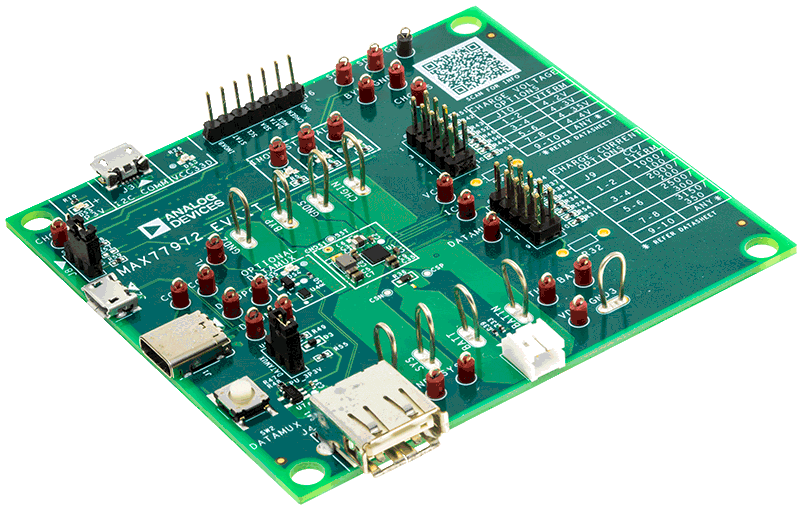

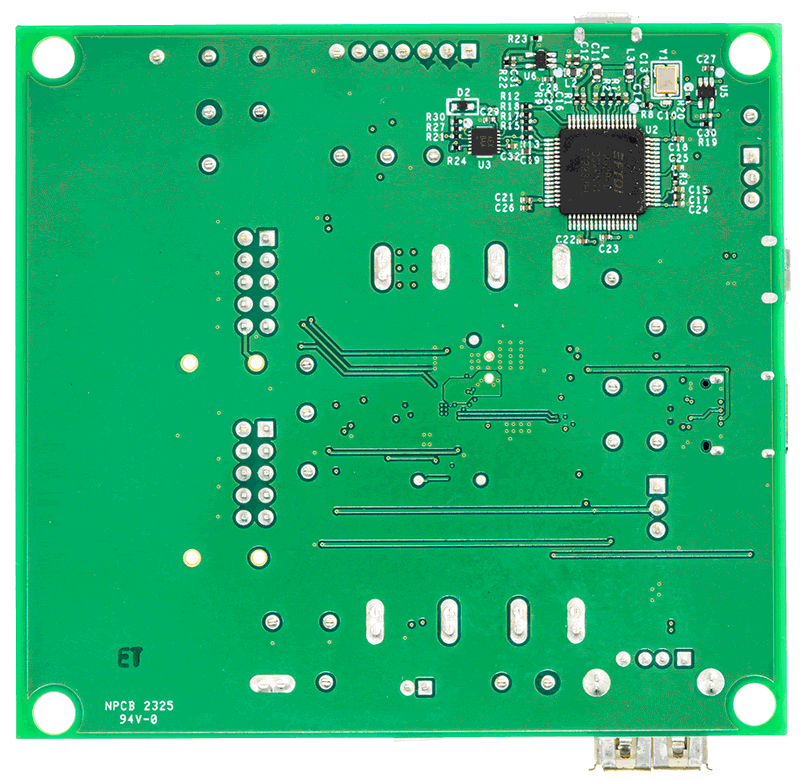

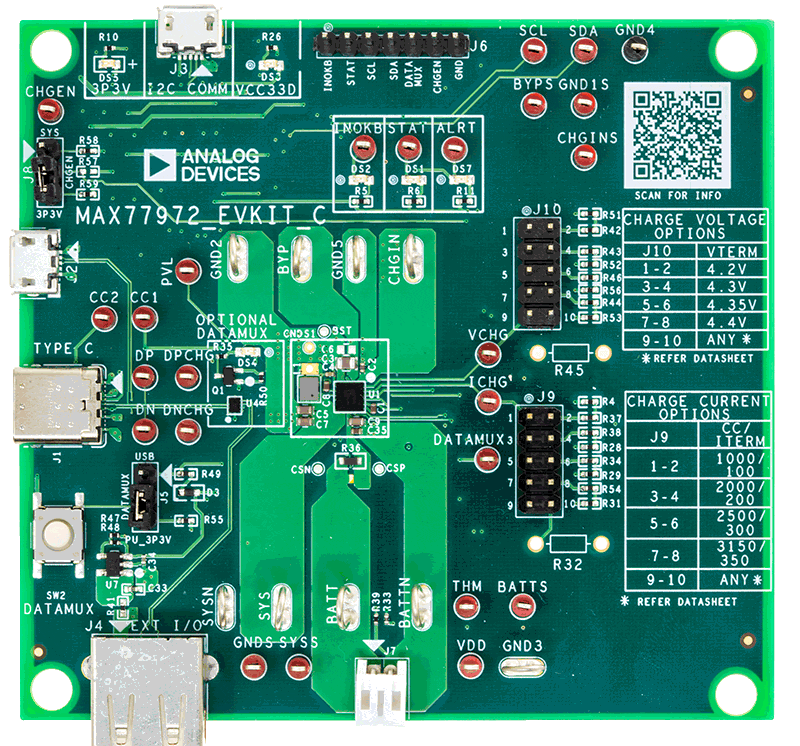

The MAX77972 evaluation kit (EV kit) is a fully assembled and tested surface-mount Printed Circuit Board (PCB) that evaluates the autonomous integrated FET charger with an integrated fuel gauge, Universal Serial Bus (USB) Type-C, and BC1.2 detection.

The EV kit includes the IC evaluation board with an integrated I²C interface and USB micro-B cable. Windows^® based graphical user interface (GUI) software is available for use with the EV kit and can be downloaded from the https://www.analog.com/products/MAX77972 product page under the Design Resources tab. Windows 7 or newer Windows operating system is required to use with the EV kit GUI software.
