概览

优势和特点

  • Operation from a Single +3V to + 5.5V Supply
  • Terminal Block Connectors for Easy RS-485/RS-422 Network Evaluation
  • Proven PCB Layout
  • Fully Assembled and Tested

产品详情

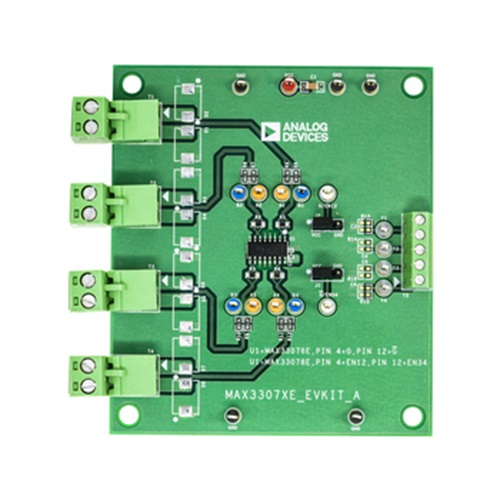

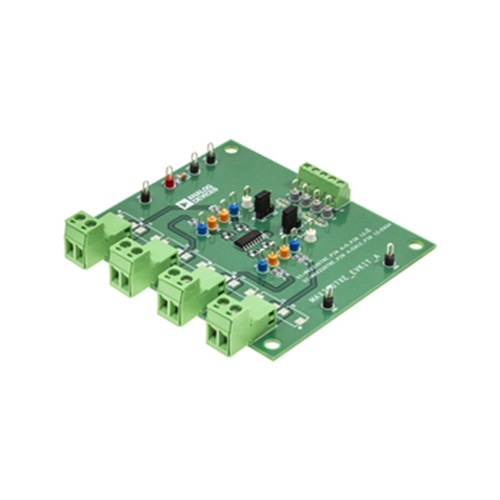

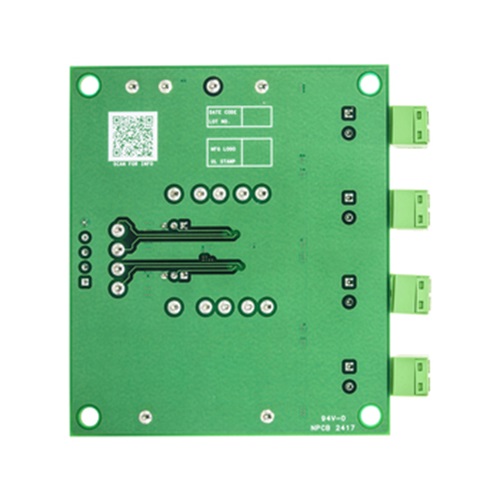

The MAX3307XE evaluation kit (EV kit) is a fully assembled and tested PCB that demonstrates the functionality of MAX33078E quad-channel RS-485/RS-422 receivers with extended ±25V input common-mode range and ±65V high fault-tolerant. Power for the MAX3307XE EV kit can be provided from a single +3V to +5.5V supply. The EV kit includes on-board terminations for easy evaluation.

The MAX3307XE EV kit is assembled with a MAX33078E in a 16-pin SOIC package. The EV kit can also be used to evaluate the MAX33076E with modification.

相关产品

使用入门

Required Equipment

  • MAX3307XE EV kit
  • +5V, 100mA power supply
  • Function/signal generator
  • Oscilloscope
