概览

优势和特点

  • Full featured evaluation board for the AD9129
  • Includes options to evaluate:
    • Baseband and standard DAC operation
    • Mix-Mode™ operation (2nd and 3rd Nyquist zones)
  • USB interface for configuration
  • Accepts external clock sources
  • Data pattern generator and SPI software interfaces
  • Rapid prototyping, custom test vectors, comprehensive testing and ease of use.

产品详情

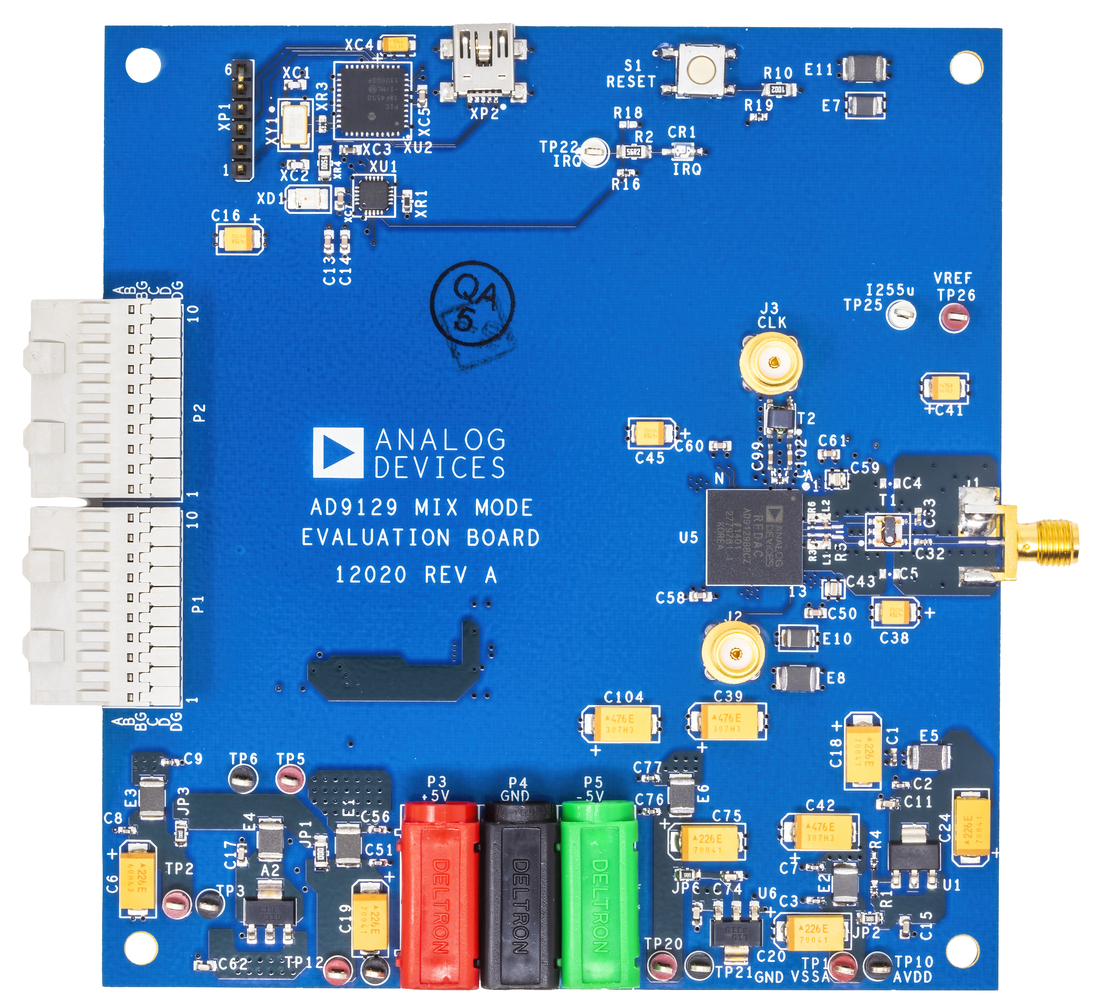

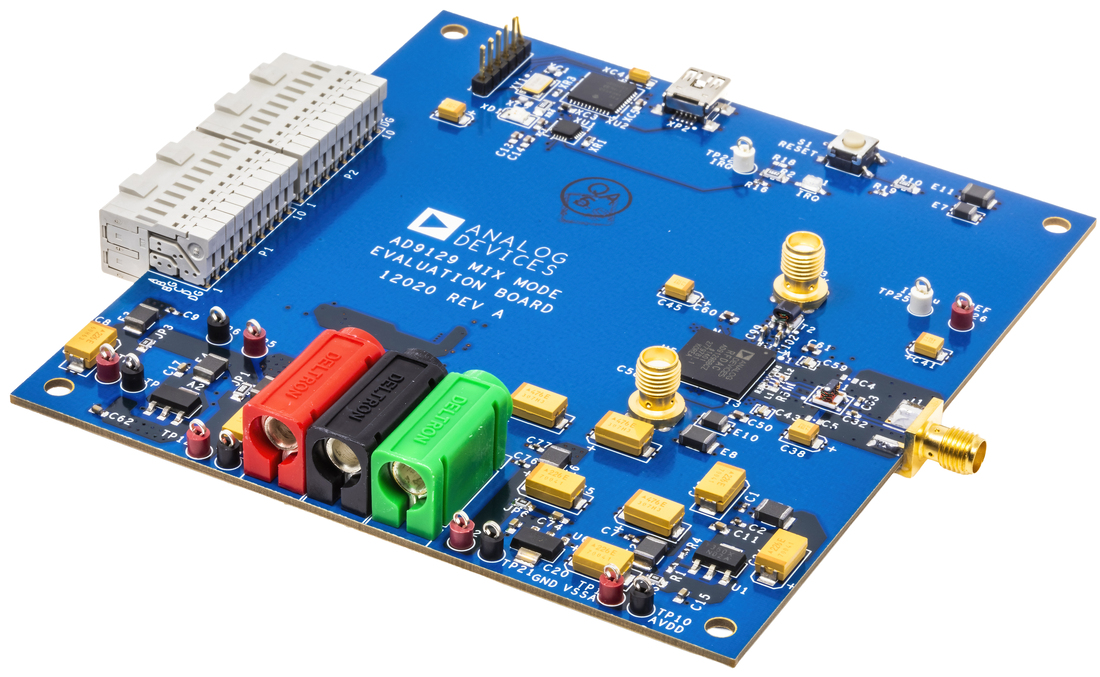

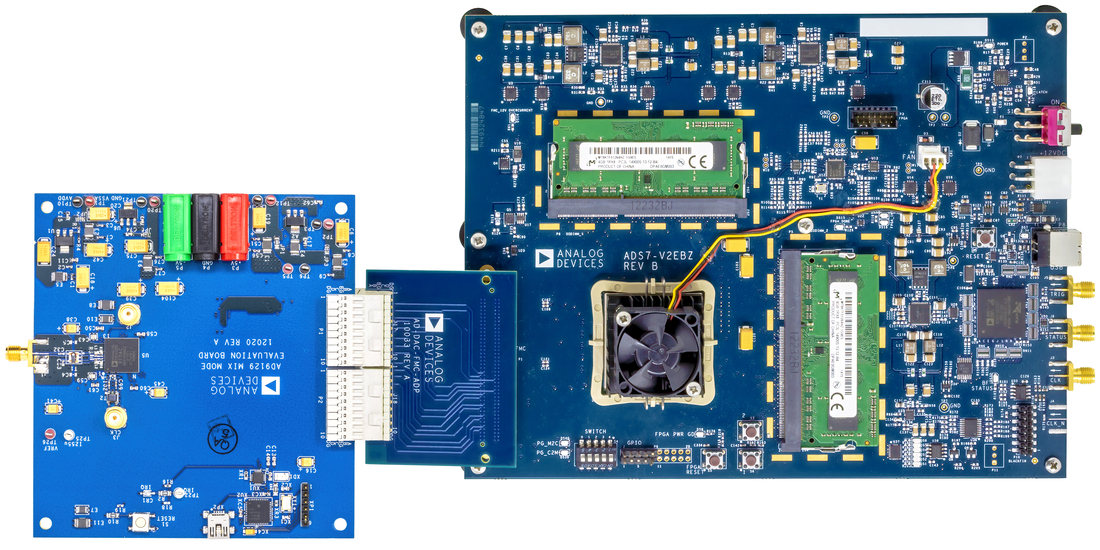

AD9129评估板连接ADI公司的数字模式发生器(DPG2)，以便快速评估AD9129。DPG2允许用户建立各种类型的数字矢量，并在任意AD9129工作模式下以该器件支持的速度传输至AD9129。AD9129评估板通过USB以及随附的PC软件进行配置。

技术与领域

相关产品

文档

  • 查看全部 (1)
  • 用户手册 (1)
    • Document Type

    软件

    ACE软件

    ZIP
    313 KB
    ACE plug-in for Board.AD9129 1.2020.4400 [1月 23 20]
    Plug-in for evaluating the AD9129 and AD9119 high-speed DACs.
    EXE
    157 MB
    ACE Installer Software 1.30.3369.1491 [7月 10 25]
    Analysis | Control | Evaluation (ACE) Software. Requires internet access. Run this executable to install ACE onto your computer. Required before installing the plug-in(s) above. Once ACE is installed, double-click on the plug-in package to install the plug-in.
    ACE 软件页面 >

    硬件 (1)

    控制器板
