DC650A
LT3010EMS8E Demo Board | Micropower Linear Regulator, 3V ≤ VIN ≤ 80V, VOUT = 3.3V/5V/Adjustable @ 50mA
顶部
概览
产品详情

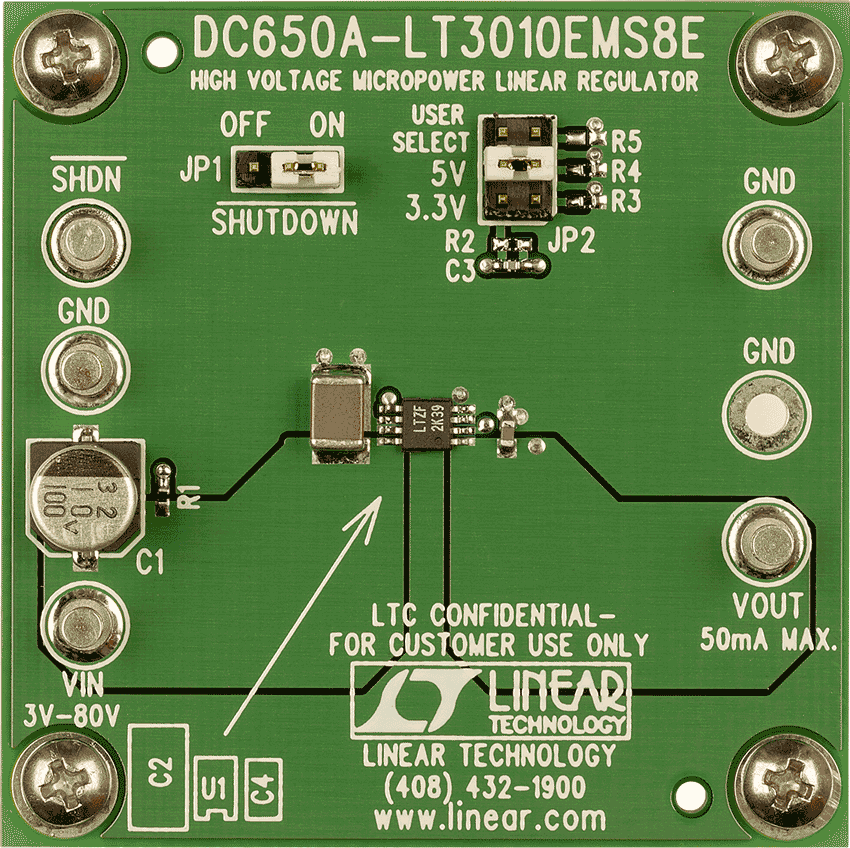

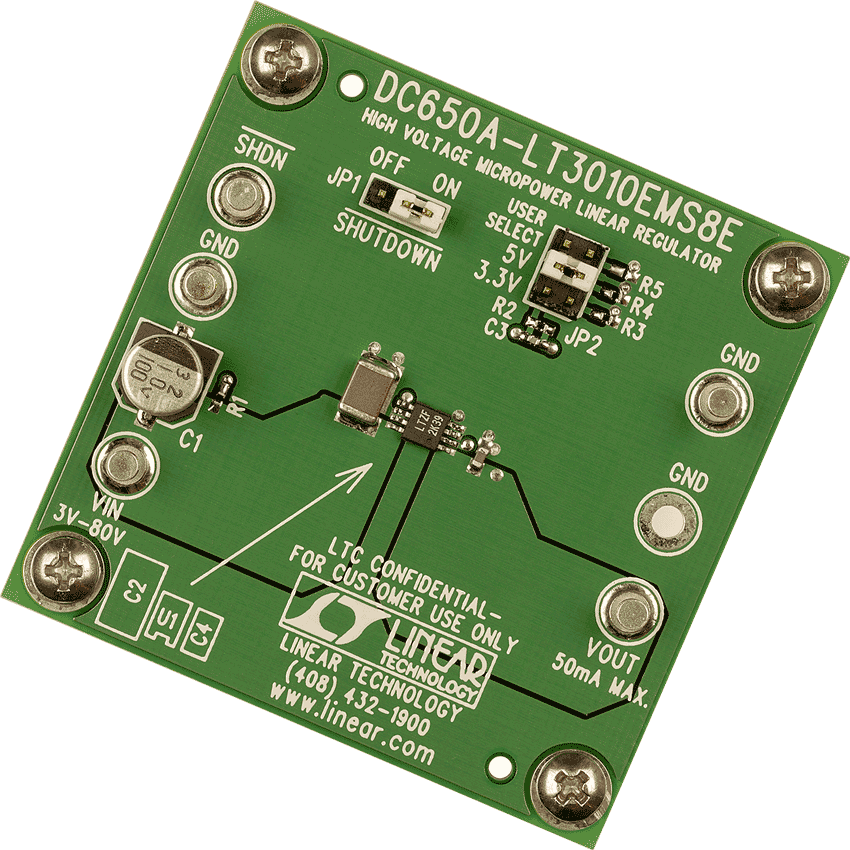

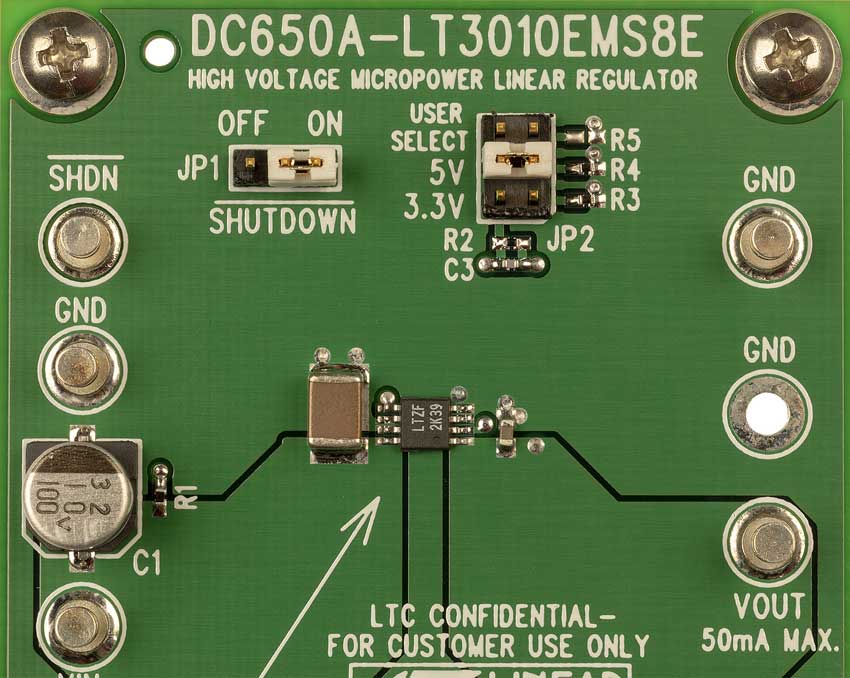

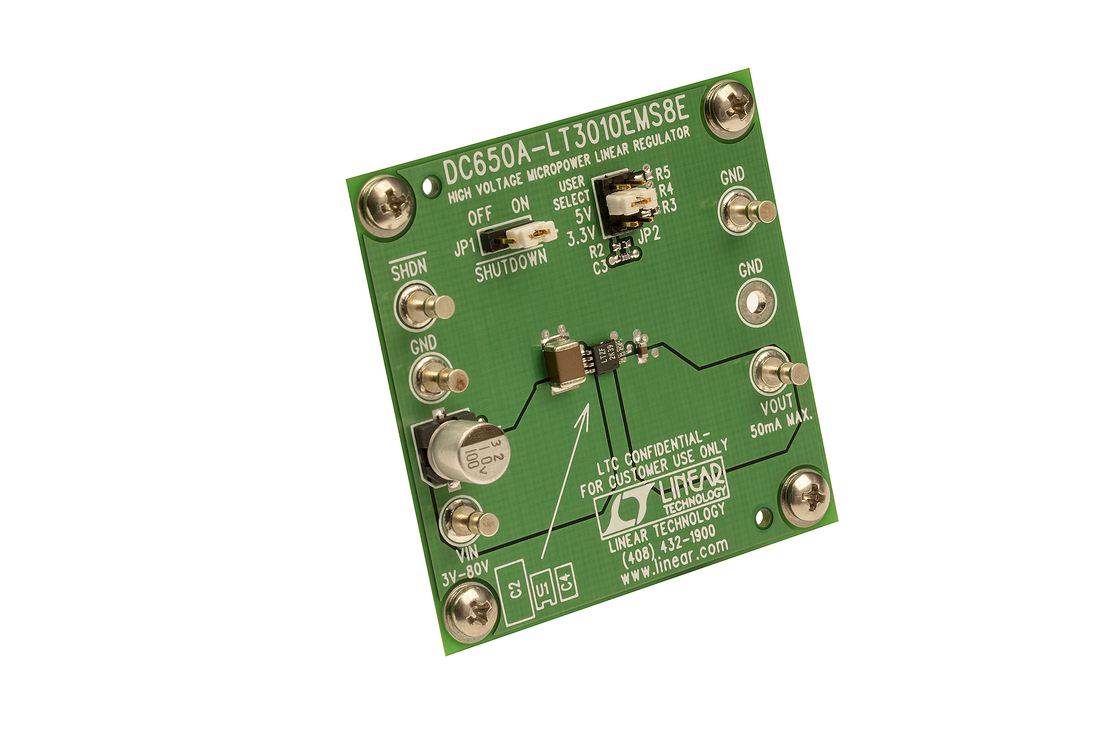

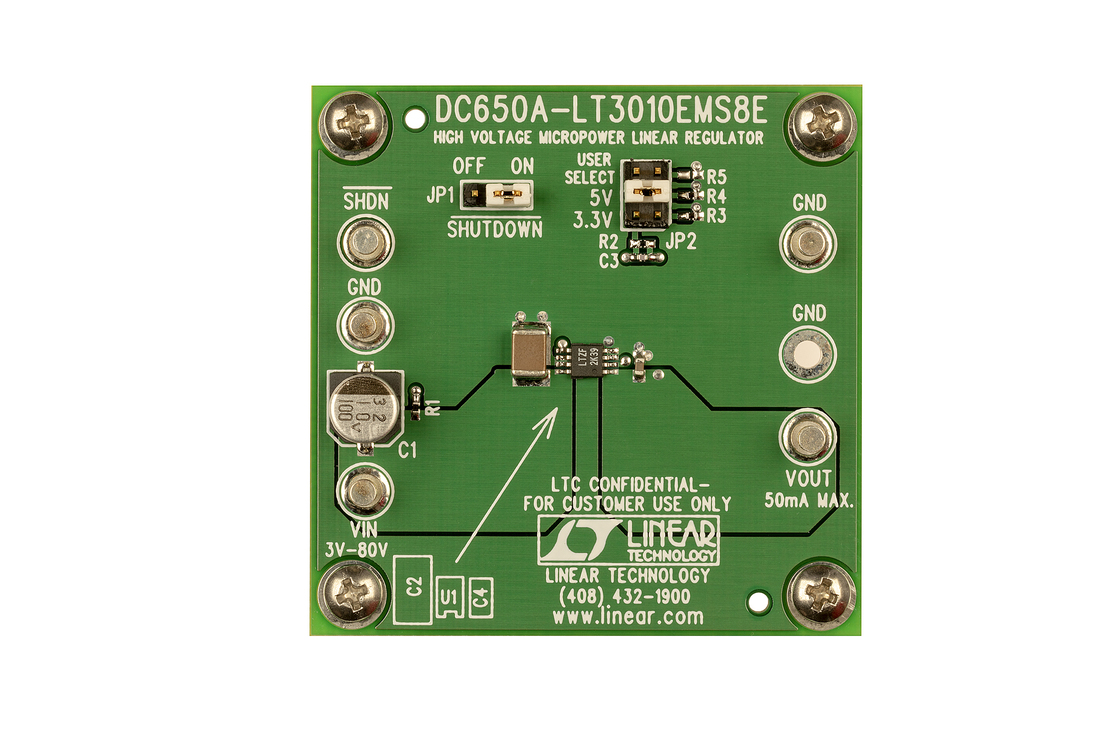

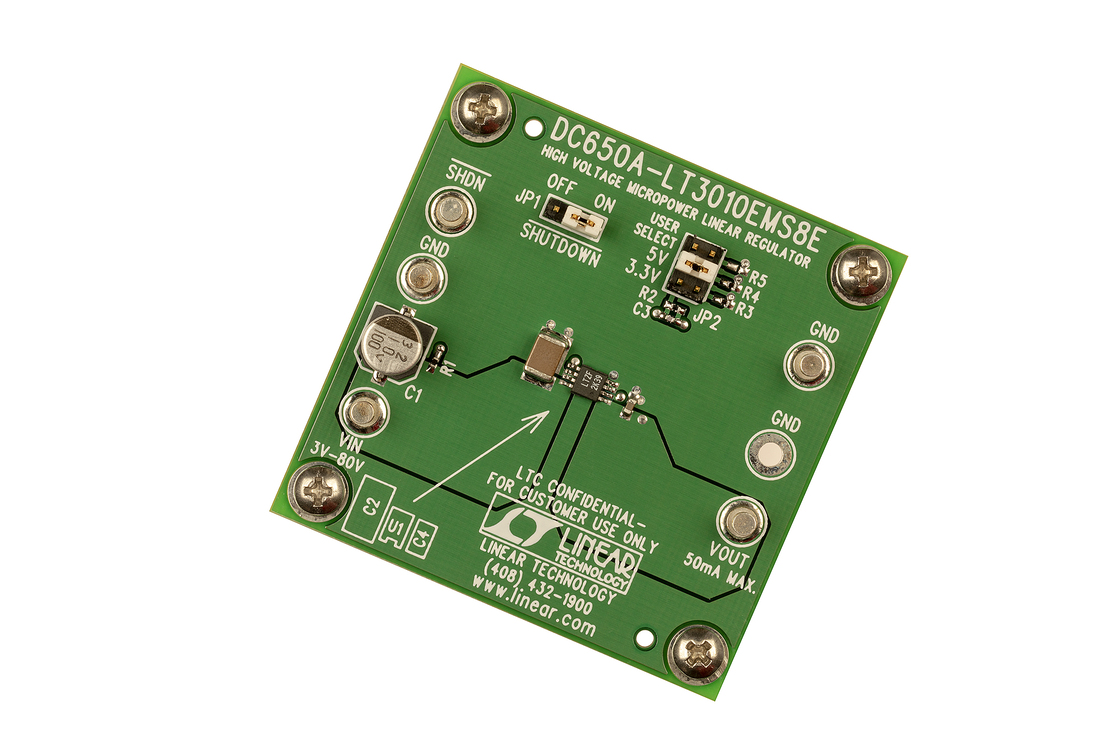

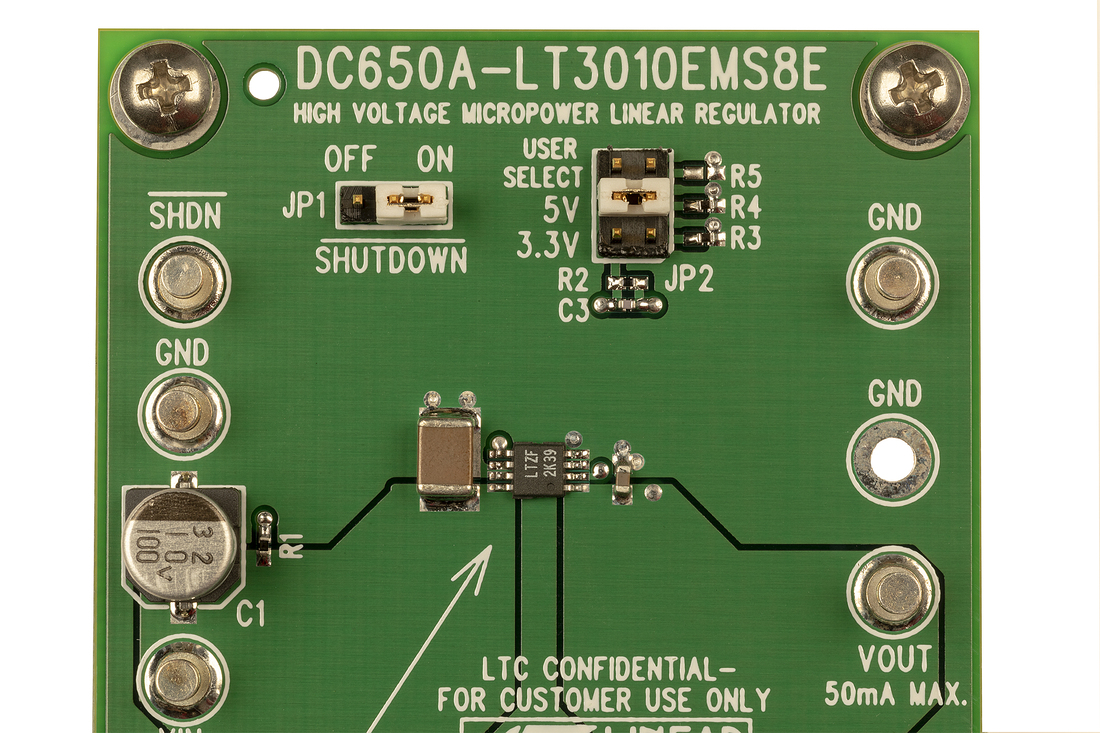

Demonstration circuit 650 is a high voltage micropower voltage regulator using the LT3010 low dropout linear regulator, which comes in a small 8-pin MS8 package. DC650 has an input voltage range from 3V to 80V. The circuit is capable of delivering up to 50mA of output current. The output voltage is jumper-selectable and can be set to 3.3V, 5V or a user-determined value between 1.22V and 60V.
文档
-

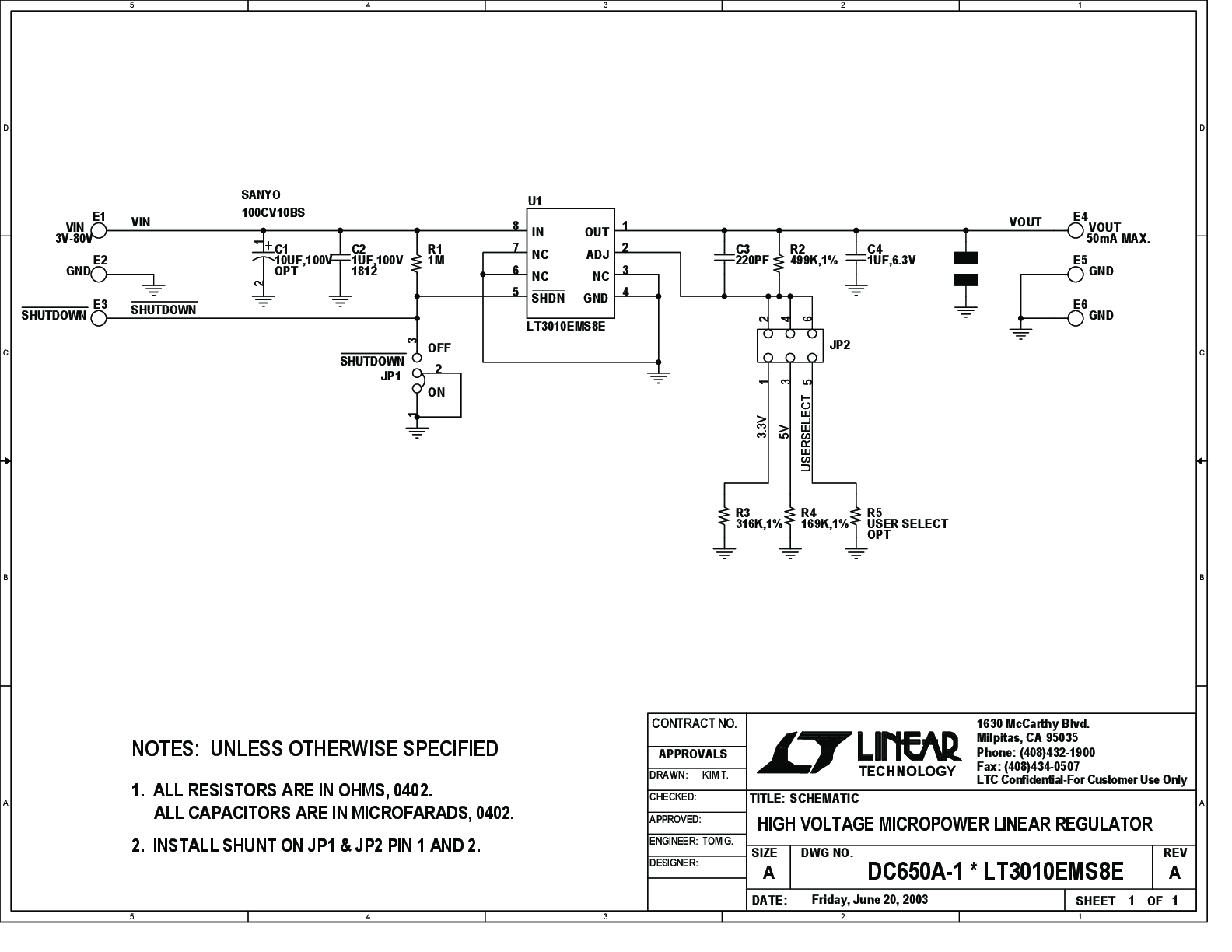

DC650A - Schematic2009/9/24PDF67K
-
DC650A - Demo Manual2009/9/24PDF220K
-
DC650A - Design File2009/9/24ZIP574K
