DC1605B
LTC2936CGN Demo Board | Programmable Hex Voltage Supervisor with EEPROM and Comparator Outputs [Requires DC1613]
顶部
概览
产品详情
The DC1605B is a demonstration system that showcases the LTC2936, a 6-channel I2C/SMBus voltage supervisor with EEPROM. The LTC2936 simultaneously monitors up to six power supply voltages and detects undervoltage and overvoltage conditions. In addition the LTC2936 monitors two GPI pins and is able to drive three GPIO pins to indicate OV, UV, system reset, system alert, or other control signal.
相关产品
文档
-

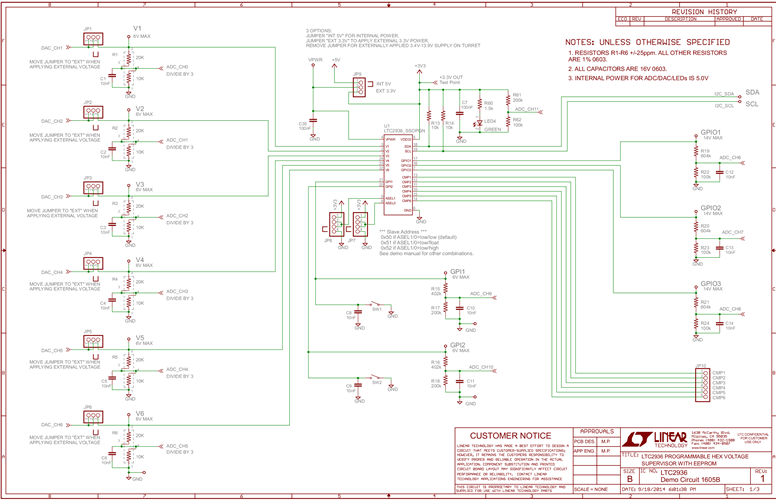

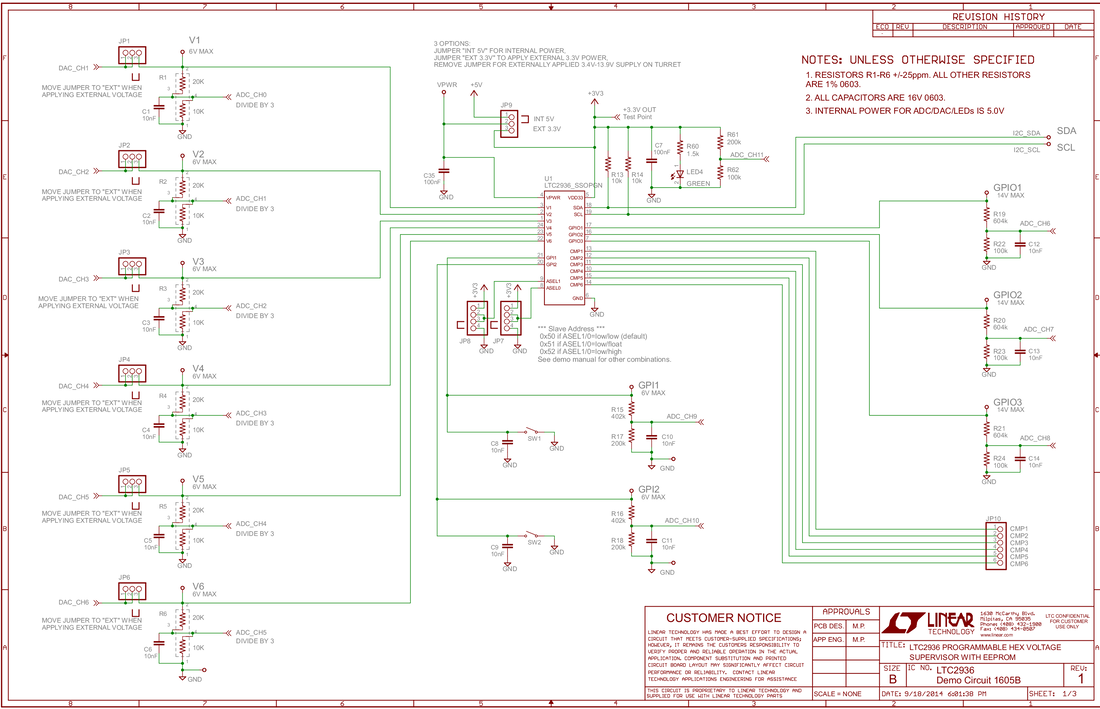

DC1605B - Schematic2015/3/25PDF145K
-
DC1605B - Demo Manual2015/3/25PDF1M
-
DC1605B - Design Files2015/3/25ZIP2M
