DC698A

LTC3445EUF Demo Board | I2C-Controllable Buck Plus Dual LDO & PowerPath, 2.5V ≤ V_IN ≤ 5.5V, V_OUT1 = 0.85 to 1.55 @ 0.6A, V_OUT2 = 1.3V @ 50mA, V_OUT3 = 1.1V @ 50mA

立即购买

顶部

概览

产品详情

产品详情

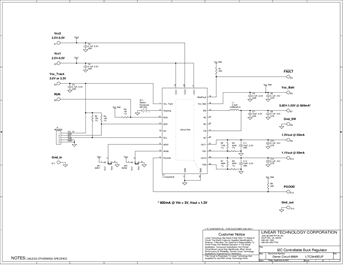

Demonstration Circuit 698 is an I2C-controlled high efficiency 600mA synchronous current mode buck regulator and two 50mA linear regulators featuring the LTC3445. The LTC3445 also features backup/main battery power path selection. The input voltage range is 2.5V to 5.5V. The buck regulator has a programmable output range of 0.85V to 1.55V and the two LDOs provide 1.3V@50mA and 1.1V@ 50mA.
