MAX66960
Obsolete-80°C Temperature Data Logger with External Thermistor Probe
Industry Leading Temperature Data Logger for Use in Dry Ice Cold Chain Distribution Applications
Overview
- Provides High-Quality Assessment of Storage Temperature Profiles
- 16-Bit Temperature Measurements with Storage for 65,536 Time-Stamped Values
- Flexibility to Monitor and Datalog Long Duration Shipments with Short-Duration Time Intervals
- Rugged IP42 Construction Survives Harsh Environments
- Meets CE EMC Directive of EN 61326-1
- Tested for Portable Electronic Devices for Use on Airplanes per RTCA/DO-160G
- Highly Configurable Options for Data Logging and Security
- Optimize Logger Operation for Specific Shipment Conditions
- Protect Settings and Data from Unauthorized Modification
- Easy to Start/Stop Logging of Missions
- Pushbuttons and LEDs for Control and Status
- Visual Indication of Logger and Battery Status

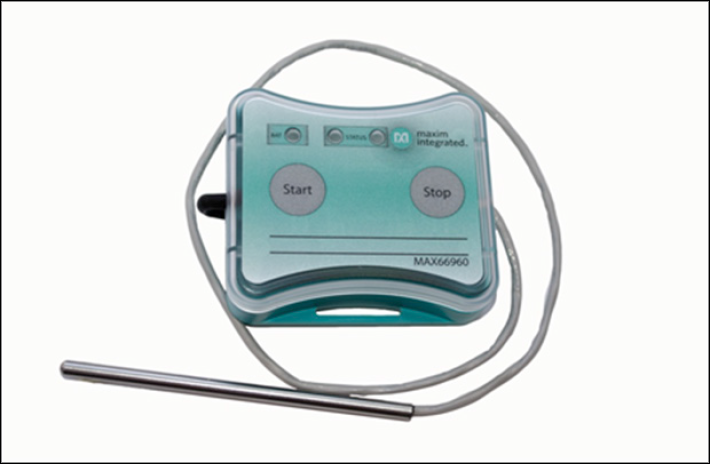

The MAX66960 is a temperature data logger that is ideally suited to monitor and log the ambient temperature of enclosures that use dry ice as a coolant. It consists of a precision logging module with a thermistor-based temperature probe that is permanently attached. In the application the temperature probe is inserted into the dry ice cooled area of a container and the logger module is placed in a container location isolated from the -78.5°C extremes created by the dry ice. An attached USB cable and connector provide the PC connection for setup of a logging mission and download of mission data.
Applications
- Dry Ice Refrigerated Cold-Chain Verification
- In-Transit Monitoring of Temperature-Sensitive Products
- Time-Stamped Recording of Time/Temperature Excursions
