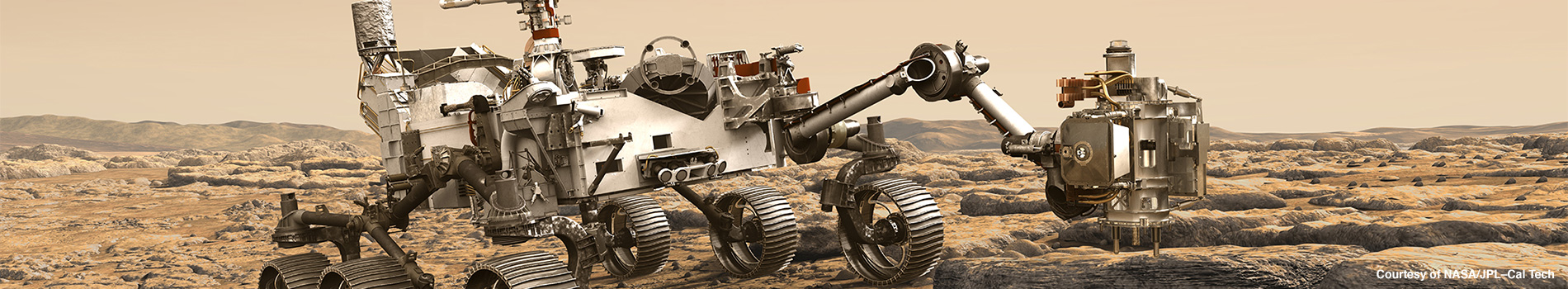

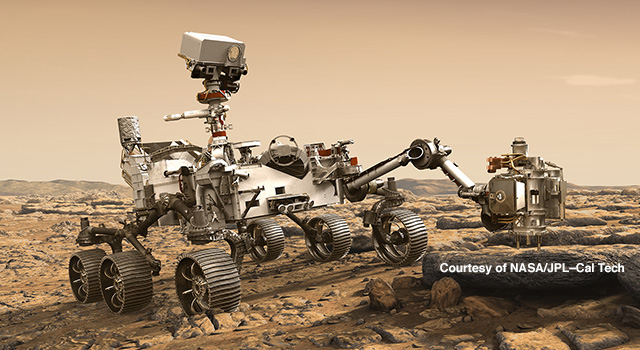

MARS PERSEVERANCE AND HARDENED TECHNOLOGY IN EXTREME ENVIRONMENTS


On a mission to search for traces of ancient microbial life, Perseverance, the most advanced planetary rover in history, will enter the Red Planet’s thin atmosphere at 11,900 mph. Transmission confirming its arrival on February 18, 2021, will take 11.5 minutes to reach Earth, 130 million miles away.

Facing the challenges of deep space high energy radiation and extreme heat and cold cycling, the robotic explorer will collect drill-core samples and perform experiments with implications limited only by one’s imagination. Perseverance, a robotic scientist weighing just under 2,300 pounds and armed with hardened technology, will help pave the way for future human exploration of our solar system.

Sending machines and humans into space serves as a testing ground for pushing the boundaries of technology on Earth to new heights. For over four decades, Analog Devices, Inc. (ADI) has drawn on the power of innovation and collaborated with NASA/JPL to develop components and systems that can withstand the extreme G-forces of launch and meet the stringent quality standards to survive in the harshest conditions of space. The Perseverance Mission is yet another technical collaboration and space milestone for NASA/JPL and ADI.

AT A GLANCE

COMPANY

Jet Propulsion Laboratory (JPL) a national research facility, helped open the Space Age by developing America’s first Earth-orbiting science satellite, creating the first successful interplanetary spacecraft, and sending robotic missions to study all of the planets.

GOAL

Push the limits of technology in the search for the biosignature of life, the presence of water, and the potential of human habitation on Mars. Transfer that technology to commercial space endeavors benefiting humanity on Earth.

CHALLENGES

Solve the toughest engineering problems to enable robotic missions to operate in the harsh conditions of space, exploring the planets and their moons, the asteroids, and beyond.

APPLICATIONS

Leverage ADI’s power management, isolation technologies, sensors, and radiation-hardened components for space probe instrumentation and mechanisms.

PERSEVERANCE AND THE SEARCH FOR ANCIENT LIFE

3D rendering of the Jezero crater on Mars
The Perseverance landing site and how it may have looked billions of years ago after a large object collided with Mars, leaving a 25-mile-wide crater filled in by river channels that once flowed across the Martian terrain.

While Mars is a frigid, almost airless desert today, scientists believe microbes may have lived in the Jezero Crater during a wetter period 3.5 billion years ago. The six-wheeled robotic rover will search for chemical, mineral, and textural evidence of ancient microbial life preserved in the crater’s sediments. Perseverance will be the first mission to collect dozens of drill-core samples, seal them in tubes, and deposit them on the surface for future missions to collect and return to Earth for in-depth analysis by researchers and sophisticated instrumentation.

Image Courtesy NASA/JPL -Cal Tech: Jezero Crater, Mars

ADI Engineer, Kristen Chong, describes her excitement for the landing of the Perseverance Rover and what we could learn.

POWERING THE MISSION

Electricity is the life-blood powering the robotic explorer’s instrumentation, communications, mobility, and scientific activities. Reliable power and battery longevity are critical to the 11-year rover mission. Perseverance runs on a high voltage battery bus for efficiency. However, the voltage output provided directly from the bus is too high for 99% of the Martian explorer’s electronic systems. Without an efficiently regulated intermediate voltage step-down, the rover would waste a significant amount of energy, and the battery would require more frequent recharging.

A POWER COLLABORATOR

NASA/JPL selected ADI as its technology provider to deliver a key power management solution. The high voltage, synchronous, current-mode controller acts as an interface to transform the high voltage supply from the central battery bus to lower voltages required to run all the rover’s components (ICs). The radiation-hardened controller offers the highest levels of conversion efficiency while wasting as little power as possible. Power loss generates heat, and excess heat is detrimental to component health. And in the thin Martian atmosphere, it’s even more challenging to get rid of any excess heat.

From your phone or tablet, tap this model’s AR 3D icon to interact with Perseverance in your own environment.


Courtesy of NASA/JPL – Cal Tech

SETTING THE STAGE FOR THE BIGGER MISSION

The Mars 2020 rover carries several experiments focused on missions yet to come. MOXIE (Mars Oxygen In-Situ Resource Utilization Experiment) is perhaps the most ambitious and will test a method for extracting oxygen from Mars’ thin atmosphere. MOXIE will demonstrate if converting Martian carbon dioxide into oxygen is within the realm of possibility. If successful, future versions of MOXIE’s technology may become staples on other Mars missions, providing oxygen for rocket fuel and breathable air for future explorers and inhabitants. Also traveling with Perseverance is Ingenuity. The solar-powered helicopter drone will test flight stability in Mars’ thin atmosphere—one-hundredth of Earth’s—and scout for the best locations for exploration and the safest rover driving routes.

Side-by-side 3D renderings of Mars Perseverance Rover and Ingenuity helicopter

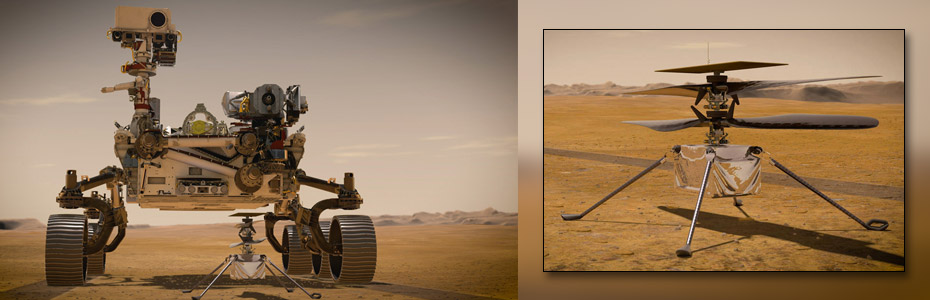

Mars Perseverance, accompanied by Ingenuity, the first helicopter designed to fly on another planet.
Courtesy of NASA/JPL – Cal Tech

CLICK HERE TO EXPERIENCE, "INGENUITY: THE MARS HELICOPTER"

X+

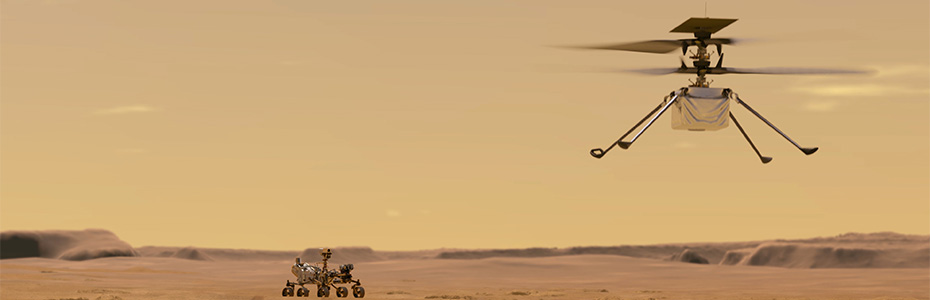

The Perseverance Mars 2020 robotic explorer carries a 4 pound solar-powered helicopter under its belly to the Red Planet. Twin-rotors spin in opposite directions at around 2,400 rpm—many times faster than helicopters on Earth. The tiny craft needs to generate enough lift to fly in Mars’ thin atmosphere, one-hundredth of Earth's. Minus 130 degrees Fahrenheit temperatures will push the limits of Ingenuity’s ability to survive the Martian nights.

Perseverance-accompanied-by-Ingenuity

Courtesy of NASA/JPL – Cal Tech

The Perseverance Mars 2020 robotic explorer carries a 4 pound solar-powered helicopter under its belly to the Red Planet. Twin-rotors spin in opposite directions at around 2,400 rpm—many times faster than helicopters on Earth. The tiny craft needs to generate enough lift to fly in Mars’ thin atmosphere, one-hundredth of Earth's. Minus 130 degrees Fahrenheit temperatures will push the limits of Ingenuity’s ability to survive the Martian nights.

From 2014 to 2019, Jet Propulsion Laboratory (JPL) engineers tested progressively more advanced and lightweight models in special space simulators. On July 30, 2019, the final version lifted off Cape Canaveral Air Force Station, Florida, on an Atlas V interplanetary flight to the Red Planet, with touchdown set for February 18, 2021—seven months and 130 million miles later.

Ingenuity will have a 30-Martian-day experimental test window to attempt up to five powered, controlled flights lasting as long as three minutes and traveling up to 1,000 feet. The data acquired during test flights will help the next generation of helicopters add an aerial dimension to Mars explorations—and the possibility of scouting for robotic explorers and human crews, transporting light payloads, and examining hard-to-reach locations.

The mission seeks to achieve a “Wright brothers” moment. A successful test flight would make this helicopter the first aircraft to fly on another world. “If we prove powered flight on Mars can work,” said Mimi Aung, Project Manager of the Mars Helicopter Mission. “We look forward to the day when Mars helicopters can play an important role in future explorations of the Red Planet.”

High school student Vaneeza Rupani of Northport, Alabama, submitted “Ingenuity” for the Mars rover naming competition. However, NASA thought “Ingenuity” more appropriate for the helicopter, given the amount of creative thinking and hard work employed by JPL engineers to get the craft off the ground.

Vaneeza Rupani wrote, “Ingenuity is what allows people to accomplish amazing things.”

The helicopter uses counter-rotating coaxial rotors about 1.2 metres (4 ft) in diameter and is topped with a solar panel for charging. On the bottom is a high resolution downward-looking camera for navigation, landing, and science surveying of the terrain.

Courtesy of NASA/JPL – Cal Tech

A HISTORY OF HARDENED TECHNOLOGY

Sixty-three ADI components critical to the Mars mission lie aboard the Perseverance. “The parts span the realm of RF/μW to op amps, power management to data conversion, and everything in between,” said Kristen Chong, Marketing Manager and Applications Engineer, ADI. “We continue to work with NASA/JPL on challenging new space programs.”

With a working relationship dating back to the early 1980s, ADI has been pushing the limits of technology and developing critical components, custom programs, and hardened technology with NASA/JPL. Regardless of its function or mission, each component encounters the harshest conditions, including extreme G-forces, vibration, temperature fluctuation, and radiation.

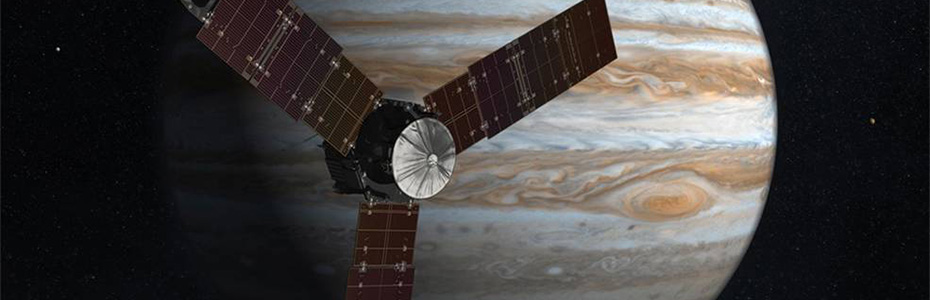

NASA's Juno space probe flying in space in front of Jupiter

Launched on August 5, 2011, NASA/JPL’s Juno space probe traveled for almost five years across the extreme environment of deep space to reach orbital insertion around Jupiter on July 4, 2016. Juno’s mission: discover how the giant gas planet and other planets came to be. “Of all of the harsh radiation environments in our solar system, Jupiter is probably one of the worst,” said Kristen Chong of ADI. “Jupiter’s magnetosphere traps a significant amount of radiation in its Van Allen belts, quantities far greater than the Van Allen belts around our planet or any other within our solar system. That makes Juno a daring mission that requires extreme rad hardening of its electronics.”

ADI’s AD590S, a radiation-hardened temperature sensor, was incorporated on the Juno mission. Temperature can range wildly from one moment to the next as a spacecraft comes out of the shadow of the planet it’s orbiting and emerges into the direct rays of the Sun. Even as it’s brought into the sunlight, the temperature differentials within the spacecraft itself can be quite large between the side facing the sun and the one facing away from it. These temperature swings can have significant yet predictable effects on the ICs inside the space probe. Information from the temperature sensor can be used to adjust and compensate for the temperature variation aboard the spacecraft.

After almost 20 years in service, ADI’s AD590S continues to gather temperature data. As a testament to its operation record, the AD590S was selected by NASA/JPL for the 2020 Perseverance mission.


Image Courtesy of NASA/JPL – Cal Tech: Juno Space Probe

RADIATION’S DELETERIOUS EFFECTS

Spacefaring vehicles that travel beyond the protection of Earth’s magnetic field are subjected to the harmful effects of radiation emitted by the Sun. Radiation can produce random errors, reset processing devices, and even destroy components. Radiation’s effects include:

  • Single-event effects (SEE): a single ion or particle hitting a specific region of a device that results in a variety of odd phenomenon and errors.
  • Total ionizing dose (TID): long-term cumulative effects that ionizing radiation has on parts throughout their operating lives. TID may result in offset shifts such as increased supply current on some components.
  • Displacement damage (DD): large particles such as neutrons that can break down a silicon chip’s crystal structure, causing physical damage.

RADIATION TESTING

Linear Technology Corporation (LTC), renowned for its high-performance power management systems, was acquired by ADI in 2017. LTC engineers traveled to facilities such as the Cyclotron Institute at Texas A&M University to work together with NASA/JPL to identify parts to bring into the space market. They employed a variety of processes designed to either mitigate or enhance radiation tolerance.

“They reach out to us with challenging problems when an IC is not functioning correctly. We send people to College Station, TX as part of the radiation qualification process,” said John Guy, Staff Field Applications Engineer, ADI. “In one instance, we brought the original component designer and an FAE to check to see if there was any upset behavior displayed during the radiation testing.” At this point, the designer and FAE worked together with NASA/JPL engineers to focus on the problem to be solved, run tests, determine if it was an application-level issue or a core design issue, and develop the final radiation-hardened product.

QUALITY CONTROL, PERFORMANCE, AND LONGEVITY

For over 40 years, ADI has collaborated with NASA/JPL to develop hardened technology to withstand space’s harshest environments. These components have not only performed flawlessly, but in many cases, exceeded all expectations, lasting years or even decades longer than prescribed by mission requirements.

The relationship's longevity speaks to a continued trust by NASA/JPL in the products we build, our testing rigors, and the quality and standards we uphold. It also gives testament to ADI’s on-site services, deep domain expertise, and technologies that cross generations of space missions.

ADI’s standards and values represent proof points to our terrestrial-based customers with less demanding applications as well. Knowing that specific components are qualified to endure decades in the harshest space environments adds a level of reliability and trust that they will function faultlessly on Earth—whether it’s in a manufacturing plant, an electric vehicle, or a hospital surgical suite.

PARTNERS WITH EYES ON TOMORROW

Like NASA/JPL, we look to the future with a hunger to be at the epicenter of innovation—staying curious, learning to adapt, and thinking unconventionally. If ADI’s history in the past 50 years teaches us anything, it’s that tomorrow’s new technological breakthroughs will send industries on new paths and shape our world in ways we can’t even dream of today. Our vision is to solve the most complex, meaningful, and impactful challenges and stay ahead of what’s possible.

Hubble telescope colorized image of space matter with stars

The Perseverance rover mission, and the many missions to follow, are only one small part of a grander program. NASA is charged with returning astronauts to the Moon by 2024, with a plan to establish a sustained human presence by 2028 in preparation for human exploration of Mars. It is ADI’s resolve to be part of that great exploration.

“We will be on the moon. We will be on Mars. We will be on the moons of planets in the outer solar system. We will be on comets. We will be tiptoeing from comet to comet, off to the stars.”

Dr. Carl Sagan

Astronomer, cosmologist, author, poet, and science communicator
