This application note explains how an 8bit microcontroller (µC) and a MPASM free assembler can be used to implement a 12bit digital thermometer. This design is ideal for processcontrol fabs, hospitals, and foodstorage areas.
This application note explains how to implement a 12bit digital thermometer using a lowcost, 8bit microcontroller (µC) and the MPASM free assembler. The thermometer displays temperature in the range of 0°C to 70°C with ±1°C accuracy (Figure 1). Typical applications include processcontrol fabs, hospitals, and foodstorage areas.

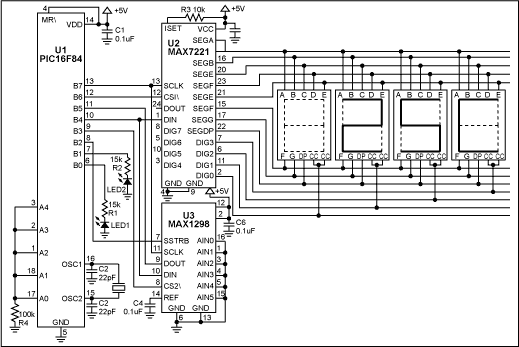

Figure 1. With an assemblylanguage routine and the free assembler, this circuit allows an 8bit µC to implement a 12bit digital thermometer.
U1 is a lowcost, 8bit flash µC with only 35 instructions. Unlike more expensive, multiplyfriendly 16bit µCs, this one has no multiply, divide, or even 16bit math instructions. The result is a more challenging implementation of the thermometer! The µC (U1) receives a serial data word (Kcode) from the temperature sensor (U3). Using the following equations, it then converts Kcode to a binary representation of the temperature in degrees Celsius:
K = Kcode x 0.125, where K = temperature in degrees Kelvin.
°C = K  273, where °C = degrees Celsius.
Table 1 shows the data as it appears after each of five steps in the conversion process, using the decimalequivalent number 2384 as an example for Kcode. The first step reads both halves of the Kcode value from U3 (high byte and low byte), and stores that data in separate 8bit file registers. The second step aligns the Kcode data by rotating the bits in both 8bit file registers two places to the right, checking the carry flag each time to properly shift the LSB of the high byte to the MSB of the low byte. The third step multiplies Kcode by 0.125. Multiplying by 0.125 is a bit complicated, but the equivalent operation of division by 8 is much easier. Because 8 is the third power of 2, division by 8 can be accomplished (with our limited instruction set) by three consecutive right shifts.
To convert to degrees Celsius, the fourth step subtracts 273 from the Kelvin temperature K. Eightbit arithmetic, however, supports integers only to 255. Because 273 exceeds the 8bit boundary, a code routine for 16bit subtraction was used to produce a binary representation of the temperature in degrees Celsius.
To take full advantage of the BCD register map internal to U2, the last (fifth) step converts the binary representation of temperature in degrees Celsius to the BCD data format. A 16bit routine for binarytoBCD conversion allows temperature to be displayed using the LED display driver U2.
An assemblylanguage program for the µC is can be downloaded from the Maxim website.
Table 1. Five steps allow an 8bit µC to support 12bit temperature data and display it.
µC's
8bit File Register #1 (high byte)

µC's
8bit File Register #2 (low byte)


Step 1: The Kcode value is serially read out of U3. For example, Kcode = 2,384 decimal below.
X

X

MSB
D12
D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

LSB
D1
0

0

X

X

1

0

0

1

0

1

0

1

0

0

0

0

0

0

Step 2: The Kcode is byte aligned. Kcode is still equal to 2,384 decimal below.
0

0

0

0

MSB
D12
D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

LSB
D1
0

0

0

0

1

0

0

1

0

1

0

1

0

0

0

0

Step 3: Shifting the data right three places is equivalent to multiplying by 0.125 to obtain the Kelvin temperature. For example, K = 298 below.
0

0

0

0

MSB
D12
D11

D10

D9

D8

D7

D6

D5

D4

D3

D2

LSB
D1
0

0

0

0

0

0

0

1

0

0

1

0

1

0

1

0

Step 4: A 16bit subtraction code routine must be used to subtract 273 from K, because 273 exceeds 8 bits. For example, °C = 25 below.
See code listing for the 16bit subtraction code
routine.

D8

D7

D6

D5

D4

D3

D2

LSB
D1

0

0

0

1

1

0

0

1


Step 5: A 16bit binarytoBCD conversion routine must be used because that is the format used by the LED display driver. For example, 25C below. See code listing for the 16bit binary to BCD conversion code routine.
LED 0

LED 1

LED 2

LED 3


CURRENTLY BLANK

D8

D4

D2

D1

D8

D4

D2

D1

Permanent "C" is displayed to represent " °C
"


CAN BE NEGATIVE SIGN

0

0

1

0

0

1

0

1
