製品概要
機能と利点
- CoolStep™
- SpreadCycle™
- StealthChop2™
- StallGuard4™
- MicroPlyer™
- 1 to 256 Microsteps
- 2ARMS, 28V
製品概要

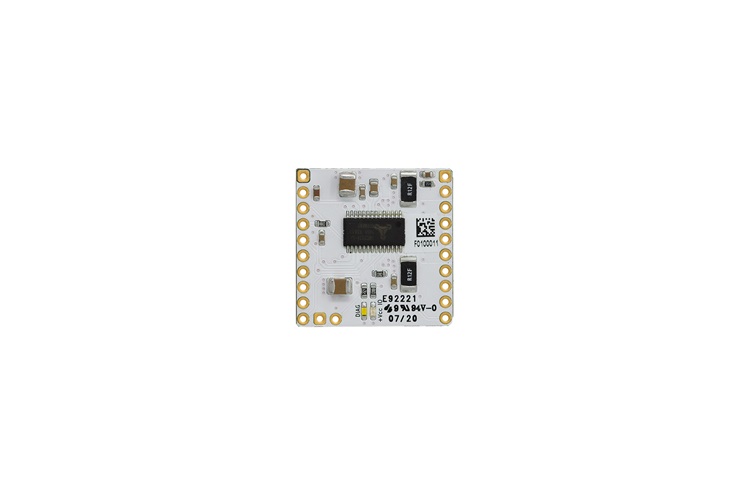

The TMC2226 breakout board is a development board with the dedicated TMC2226-SA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.
対象となる製品
関連資料
-
TMC2226 BOB Data Sheet (Rev. 1.00)2021/02/11PDF758K
-
Tmc2226 Bob - Design Files (Rev. 1.1)2020/04/20ZIP3M
-
AN-047: How to replace DRV8824 by TMC22242023/08/09
