製品概要

機能と利点

  • 2-phase stepper motor up to 1.35A coil current (2A peak)
  • Supply Voltage 4.75 to 36V DC
  • UART
  • 1 to 256 microsteps
  • Step/Dir interface
  • StealthChop™ silent PWM mode
  • SpreadCycle™ smart mixed decay
  • 1 to 256 Microsteps
  • 1.35A RMS, 36V

製品概要

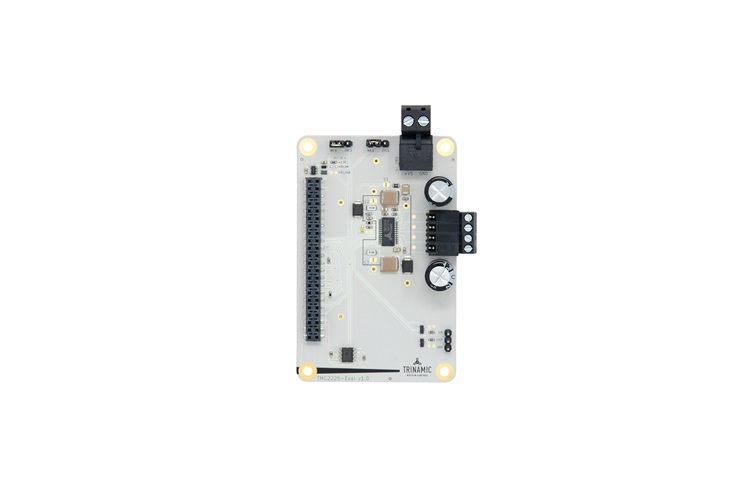

The TMC2225-EVAL allows you to explore all functions of the TMC2225-SA.

The TMC2225-EVAL-KIT is a set of MCU board Landungsbruecke, one Eselsbruecke bridge board and one TMC2225-EVAL driver board. It allows for a quick and simple start within only minutes to make your motor turning, while still providing full access to all registers and full functionality and diagnostics.

For diagnosis, all signals between MCU and TMC2225 are accessible with probes on the bridge board. TMC2225-EVAL can be used with or without the Landungsbrücke MCU board.
