製品概要
機能と利点
- Connect up to 4 PMOD boards (2- SPI and 2-I2C)
- Connect 1 QuikEval™ and 1 LTpowerPlay® board
- Redefinable pin mapping for advanced prototyping
- Mates directly with the Raspberry Pi 40-Pin GPIO header
- Powered directly from the Raspberry Pi
製品概要

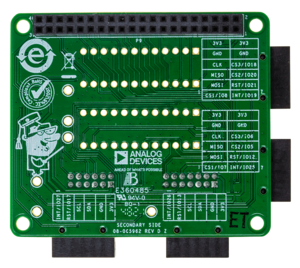

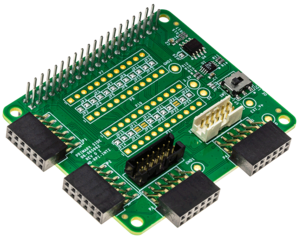

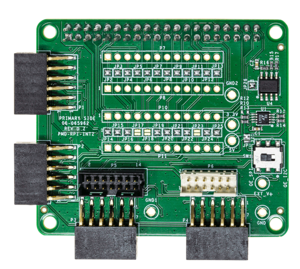

The PMD-RPI-INTZ is an add-on adapter board for the Raspberry Pi that allows interfacing with up to 4 Pmod boards (2 SPI devices, 2 I2C devices), 1 QuikEval™ demonstration board and 1 LTpowerPlay® demonstration board.
The PMD-RPI-INTZ follows the standard Raspberry Pi HAT mechanical specifications, minus the cutouts for the camera and display flexis. An ID EEPROM is also included on the board to allow auto-configuration.
パッケージの内容
- PMD-RPI-INTZ
関連資料
-
PMD-RPI-INTZ Design & Integration Files2023/03/08ZIP2 M
-
PMD-RPI-INTZ User Guide2022/03/08WIKI
-
ラピッド・プロトタイピングを実現するためのソリューション2024/04/15PDF4 M
