EVAL-ADRF5292
Evaluation of the ADRF5292 High Isolation, Silicon SP4T, Nonreflective Switch, 0.1GHz to 13GHz
トップへ
製品概要
機能と利点
- Full-featured evaluation board for the ADRF5292
- Easy connection to the test equipment
- Thru line for calibration
製品概要
The ADRF5292 is a SP4T switch manufactured in the silicon process.

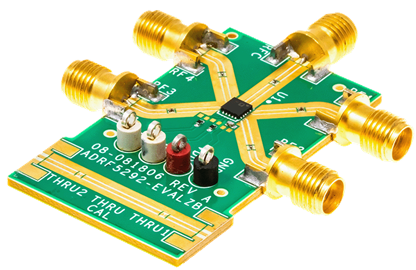

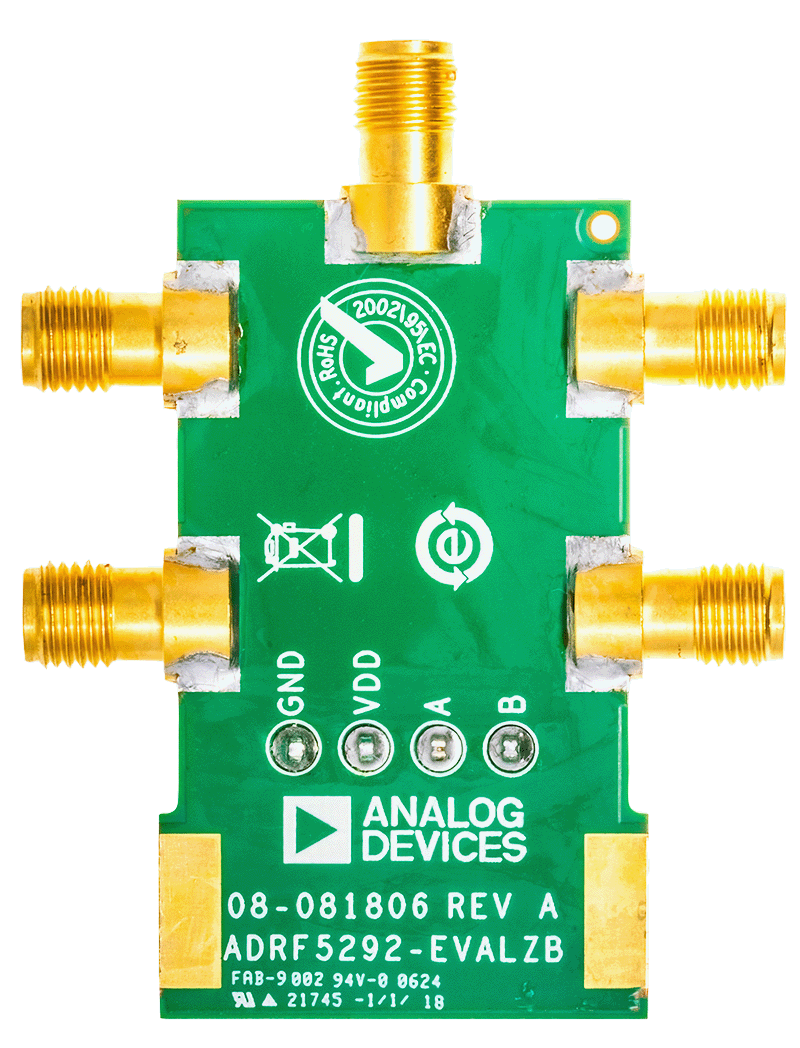

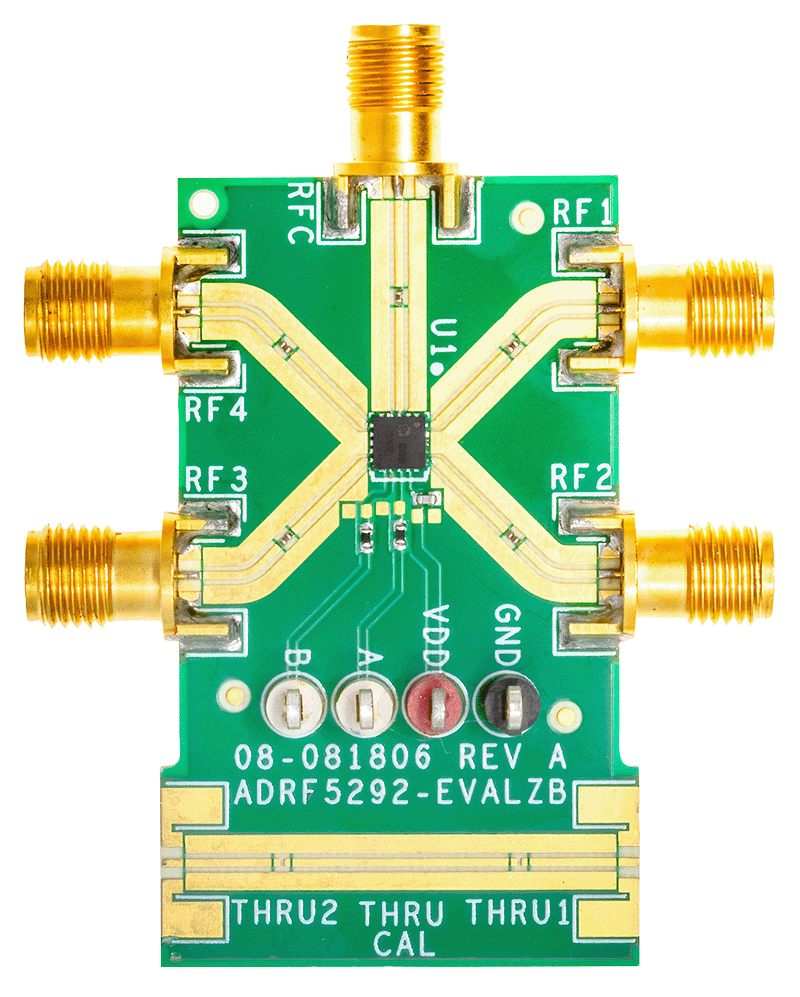

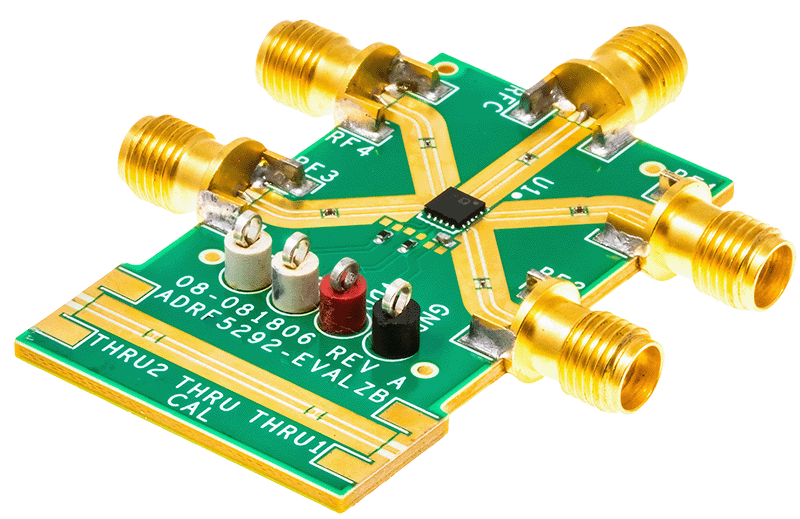

This user guide describes the ADRF5292-EVALZ evaluation board, designed to evaluate the features and performance of the ADRF5292. Figure 1 in the User Guide shows a photograph of the evaluation board.
Full specifications on the ADRF5292 are available in the ADRF5292 data sheet from Analog Devices, Inc. Consult the data sheet with this user guide when using the ADRF5292-EVALZ evaluation board.
対象となる製品
はじめに
EQUIPMENT NEEDED
- DC power supplies
- Network analyzer
