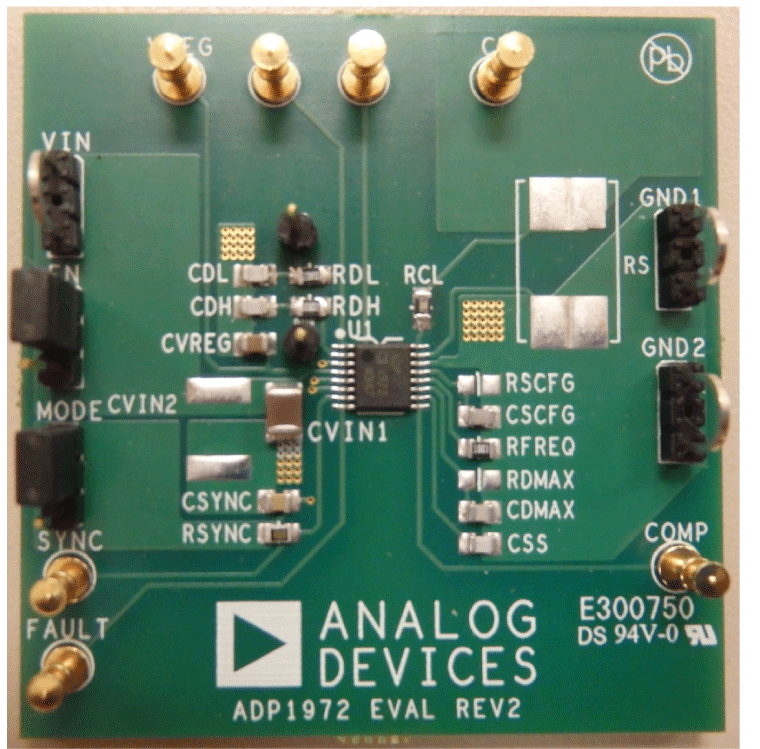

The user guide includes I/O descriptions, setup instructions, the schematic, and the PCB layout drawings for the ADP1972 evaluation board.

Complete specifications for the ADP1972 are available in the ADP1972 data sheet.


Features
  • Input voltage range: 6 V to 60 V
  • On-board 5 V low dropout regulator
  • Selective buck or boost mode
  • FAULT input compatible with AD8450
  • COMP input compatible with AD8450
  • Adjustable frequency from 50 kHz to 300 kHz
  • Synchronization output or input with adjustable phase shift
  • Programmable maximum duty cycle
  • Maximum internal duty cycle: 98%
  • Programmable soft start
  • Peak hiccup current limit protection
  • Input voltage UVLO protection
