製品概要
機能と利点
- Full featured evaluation board for the ADL6346-EVALZB
- Single-supply operation
製品概要

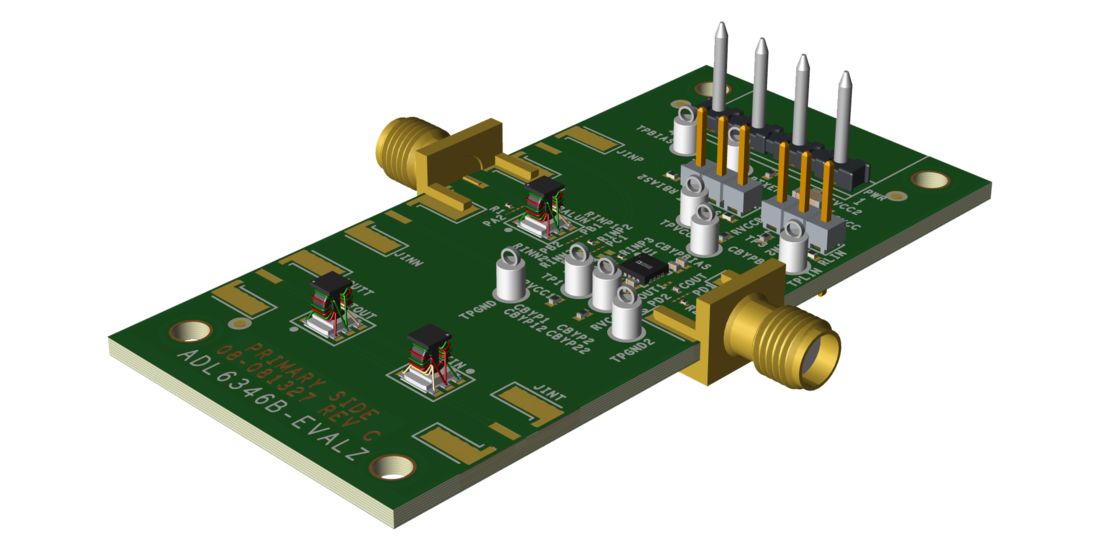

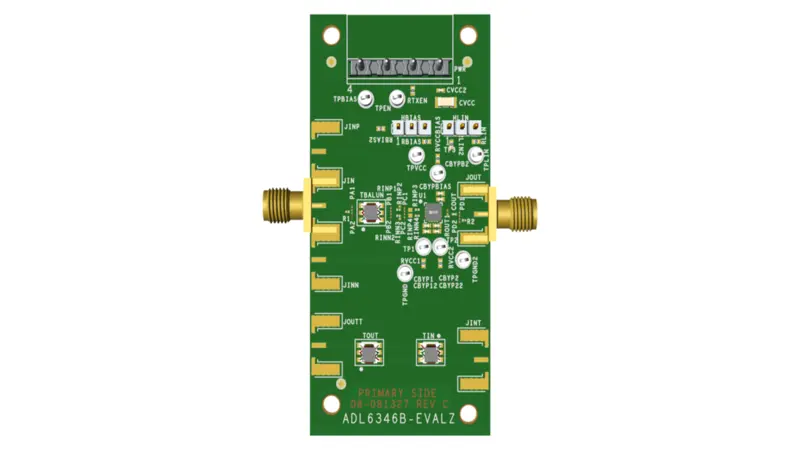

The ADL6346-EVALZB is designed to evaluate the features and performance of the ADL6346B, 40.0dB gain transmit amplifier, which has a frequency range of 1500MHz to 2700MHz.
Additional information on the ADL6346B is provided in the ADL6346B data sheet. Consult the data sheet in conjunction with this user guide when using the ADL6346-EVALZB evaluation board.
対象となる製品
はじめに
EQUIPMENT NEEDED
- 5V DC power supply
- 1.8V DC power supply
- Signal generator
- Spectrum analyzer
- Network analyzer (option)
