EVAL-AD9915

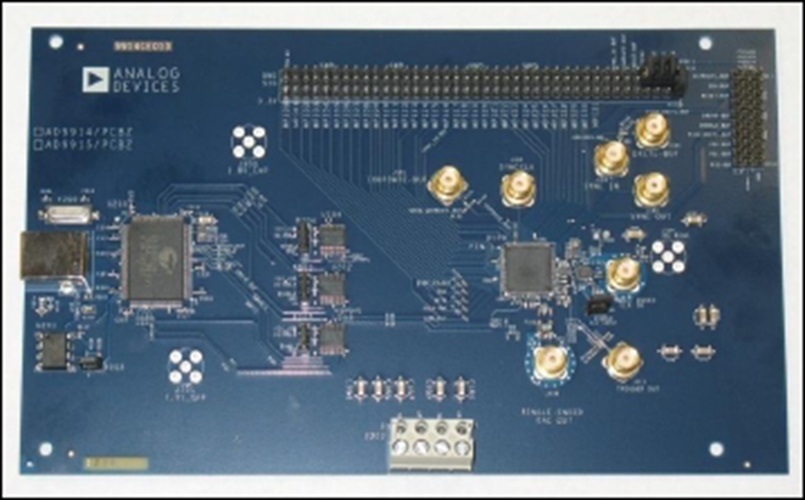

AD9915 Evaluation Board
トップへ
製品概要
製品概要
The user guide describes how to set up and use the AD9915 evaluation board. The AD9915 is a 2.5 GSPS DDS with a 12-bit DAC.The evaluation board provides a graphical user interface (GUI) for easy communication with the device along with many user friendly features such as the mouse-over effect.
The user guide is intended for use in conjunction with the AD9915 data sheet.
関連資料
-
AD9915 Schematic2013/02/01PDF217 kB
-
AD9914/AD9915 Evaluation Board User Guide2013/10/01WIKI
-
AD9915 Bill of Materials2013/02/01XLS44 kB
-
AD9915 Gerber Files2013/02/01ZIP1128 kB
