製品概要

機能と利点

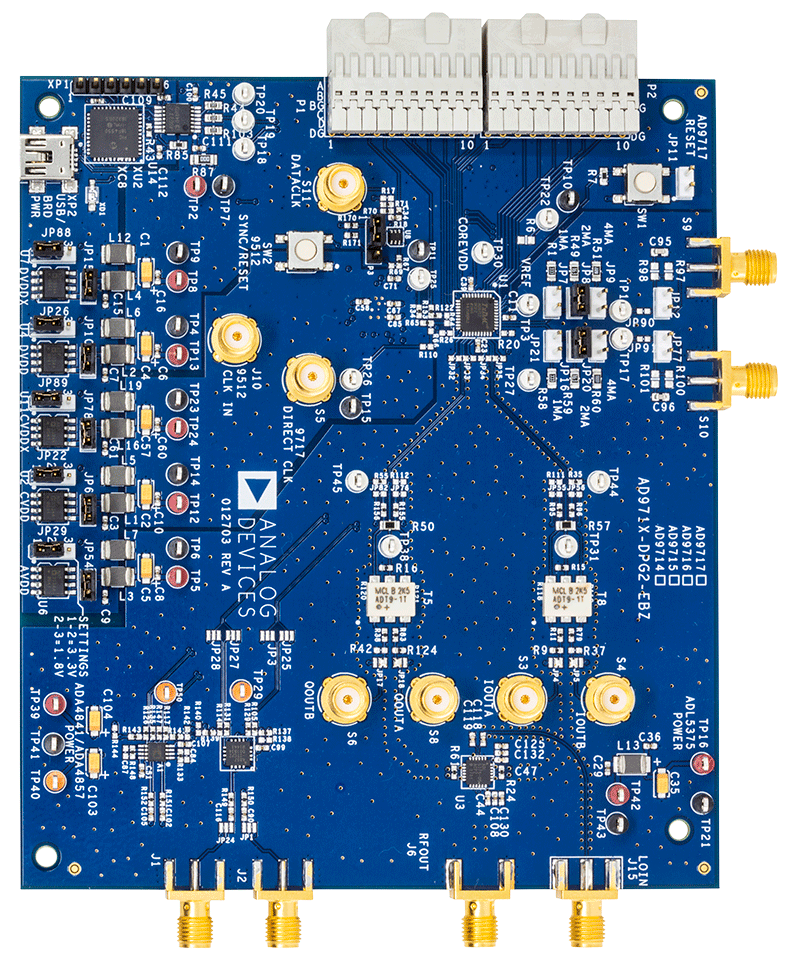

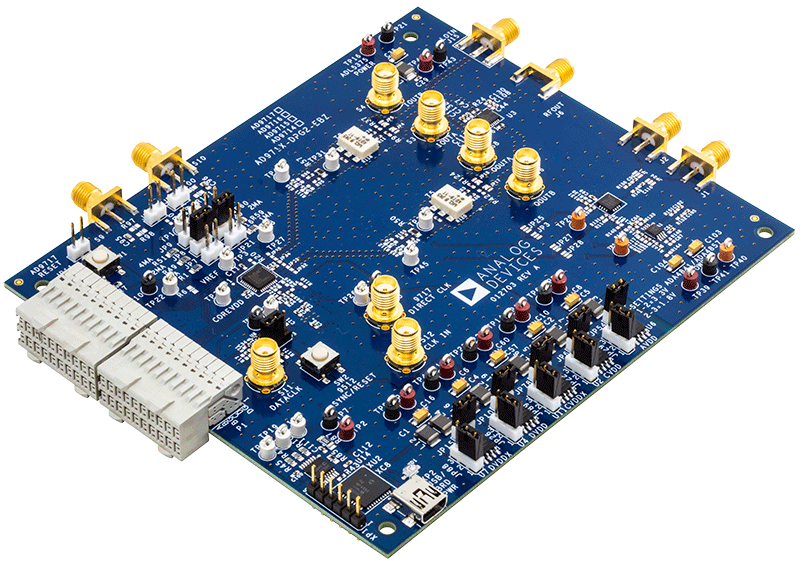

  • Full featured evaluation board for the AD9114/AD9115/AD9116/AD9117 (AD911x) and AD9714/AD9715/AD9716/AD9717 (AD971x)
  • Includes options to evaluate
    DAC only
    DAC and ADL5375 quadrature modulator
    DAC and op amp performance
  • USB interface for configuration
  • Internal or external power supply regulation
  • On-board or external clock distribution
  • Data pattern generator and SPI software interfaces

製品概要

This page contains evaluation board documentation and ordering information for evaluating the AD9714.

対象となる製品

関連資料

  • すべてを表示 (3)
  • ユーザ・ガイド (3)
    • Document Type

    ソフトウェア

    ACE Software

    ZIP
    296 KB
    ACE plug-in for Board.AD971x 1.2019.44300 [1 14 20]
    Plug-in to evaluate the AD9717, AD9716, AD9715 and AD9714 high-speed DACs.
    EXE
    157 MB
    ACE Installer Software 1.30.3311.1463 [4 24 24]
    Analysis | Control | Evaluation (ACE) Software. Requires internet access. Run this executable to install ACE onto your computer. Required before installing the plug-in(s) above. Once ACE is installed, double-click on the plug-in package to install the plug-in.
    ACE software page >

    ハードウェア (3)

    コントローラ・ボード
