機能と利点
- Full featured evaluation board for the AD3532R
- Various link options
- PC control when used in conjunction with the Analog Devices, Inc., SDP board
製品概要

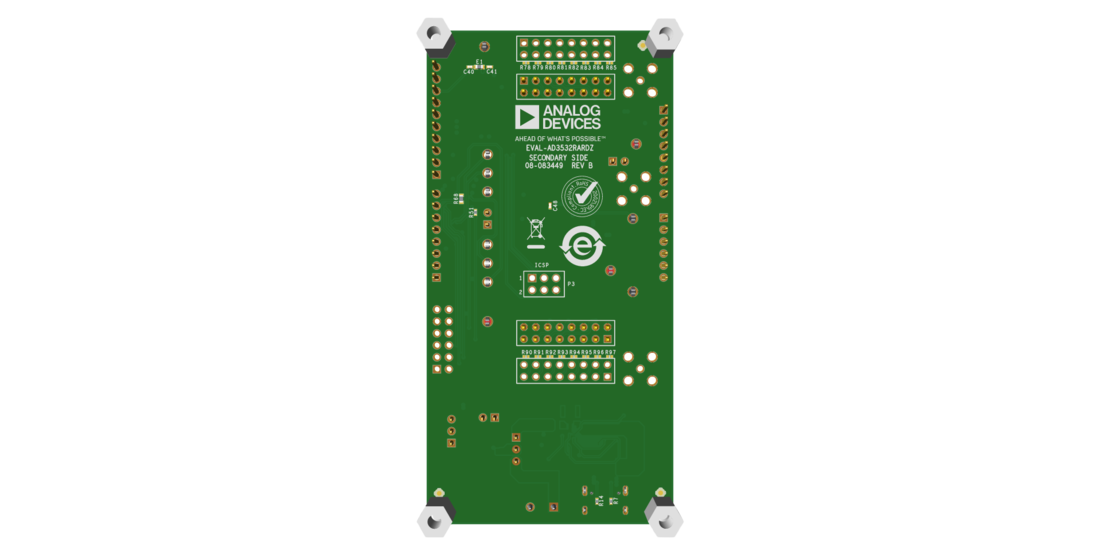

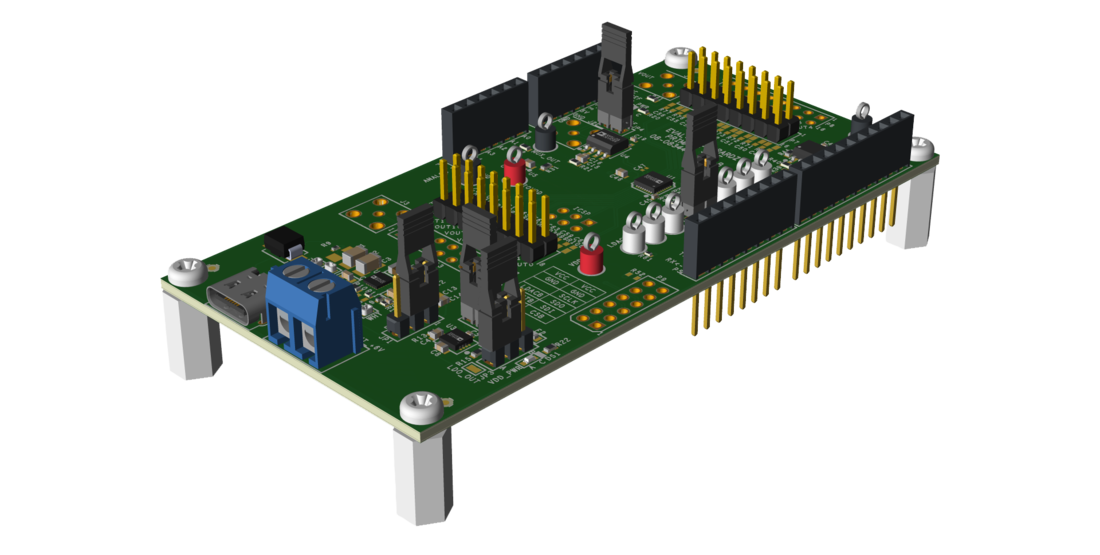

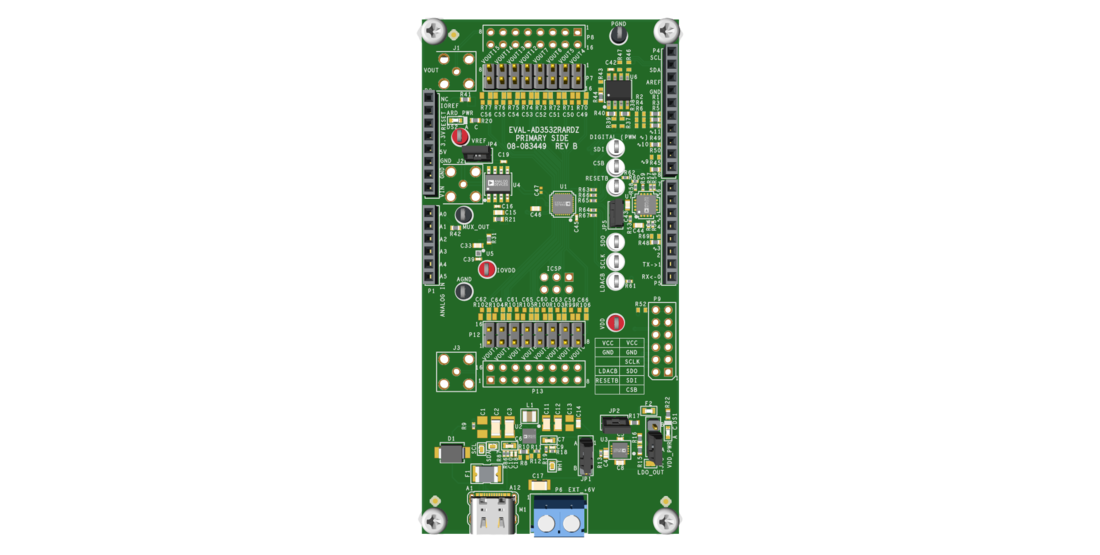

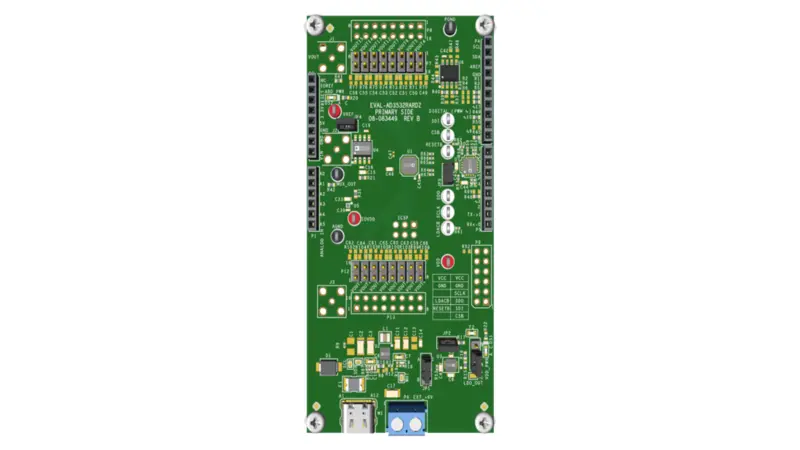

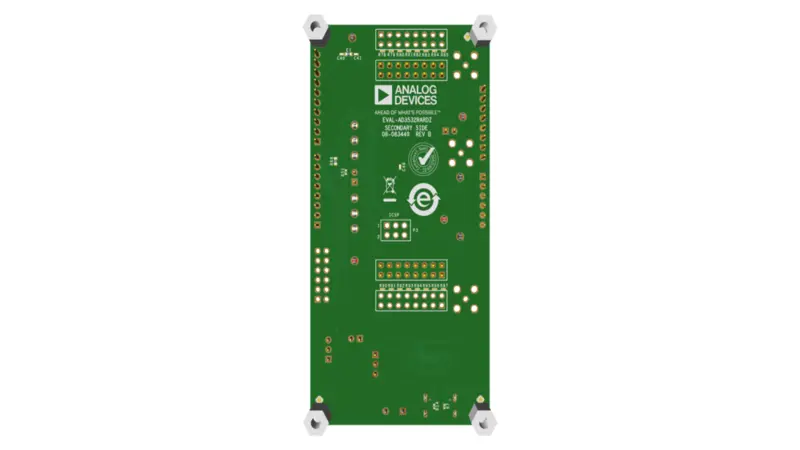

This user guide details the operation of the EVAL-AD3532RARDZ for the AD3532R 16-bit, 16-channel, voltage output, digital-to-analog converter (DAC).
The EVAL-AD3532RARDZ allows users to quickly prototype the AD3532R circuits and reduce design time. The AD3532R operates from single 2.7V to 5.5V supply ranges. The AD3532R incorporates internal 2.5V references to give output voltages of 2.5V or 5V. The EVAL-AD3532RARDZ also incorporates an additional on-board voltage reference, the ADR4525.
The EVAL-AD3532RARDZ interfaces to the USB port of a PC via a system demonstration platform (SDP-K1) board. The Analysis |Control | Evaluation (ACE) software is available for download from the EVAL-AD3532RARDZ product page to use with the evaluation board to allow the user to program the AD3532R device. A peripheral module interface (PMOD) connection is also available to allow the connection of microcontrollers to the evaluation board without the SDP-K1 board. When a microcontroller is used through the PMOD connection, the SDP-K1 board must be disconnected, and the user is unable to operate the ACE software.
The EVAL-AD3532RARDZ is compatible with Analog Devices, Inc., SDP-K1 board, which must be purchased separately.
For full details, see the AD3532R data sheet, which must be used in conjunction with this user guide when using the EVALAD3532RARDZ.
