DC860A
LTC3422EDD Demo Board | 1.8V ≤ VIN ≤ 3V, VOUT = 3.3V @ 600mA (Max)
トップへ
製品概要
製品概要
Demonstration circuit 860 is a 1.5A, 1MHz synchronous boost converter featuring the LTC3422EDD, which features true output disconnect in shutdown. The demo board produces 3.3V at 600mA (max) from a 1.8V to 3V input voltage range.
対象となる製品
関連資料
-

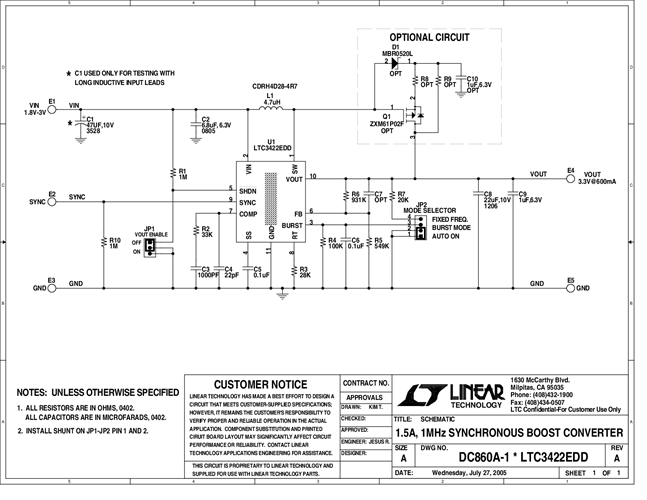

DC860A - Schematic2009/09/24PDF30K
-
DC860A - Demo Manual2009/09/24PDF657K
-
DC860A - Design File2009/09/24ZIP673K
