DC836A
LTC3772EDDB Demo Board | VIN = 2.75V to 8V, VOUT = 1.8V/2.5V/3.3V @ 2A
トップへ
製品概要
製品概要
Demonstration circuit 836 is a No RSENSE™ constant frequency step-down DC/DC converter featuring the LTC3772 Burst-Mode capable, nonsynchronous controller in a 3mm × 2mm DFN package. The demo board has an input voltage range of 2.75V to 8V and provides 2A at one of the three jumper-selectable output voltages: 1.8V, 2.5V or 3.3V.
対象となる製品
関連資料
-

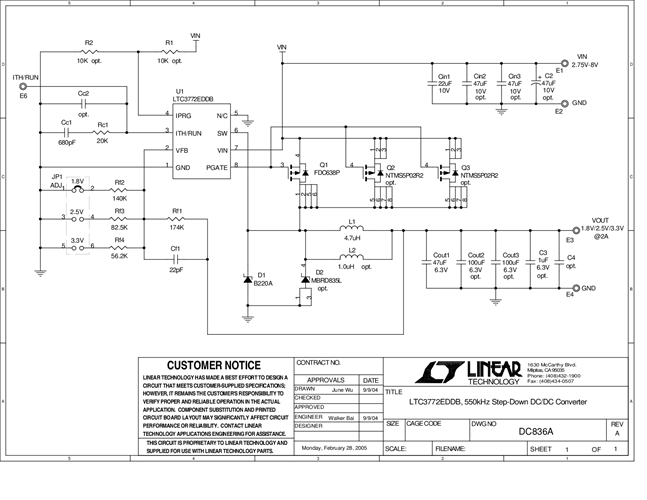

DC836A - Schematic2009/09/24PDF26K
-
DC836A - Demo Manual2009/09/24PDF122K
-
DC836A - Design File2009/09/24ZIP439K
