DC683A
LT1935ES5 Demo Board | 3.3V to 5.5V Input, VOUT = 12V at up to 600mA
トップへ
製品概要
製品概要
Demonstration circuit DC683 features LT1935 1.2MHz boost DC/DC converter with a 2A switch. The demo board is designed to generate 12V output from a 3.3V to 5.5V input voltage range and can provide 600mA at 12V from a 5V input.
対象となる製品
関連資料
-

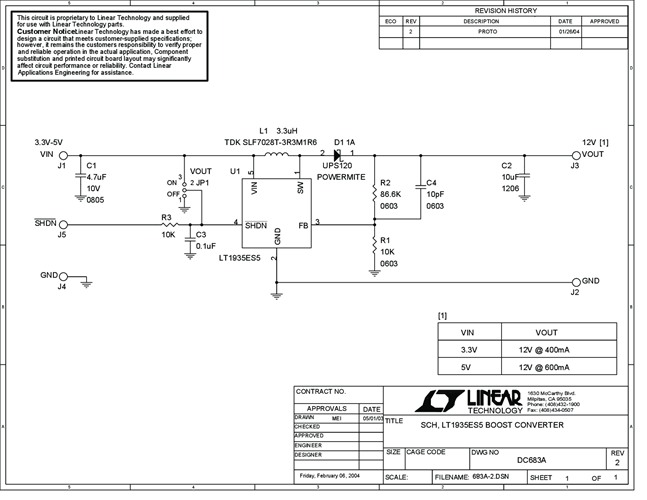

DC683A - Schematic2009/09/24PDF51K
-
DC683A - Demo Manual2009/09/24PDF146K
-
DC683A - Design File2009/09/24ZIP620K
