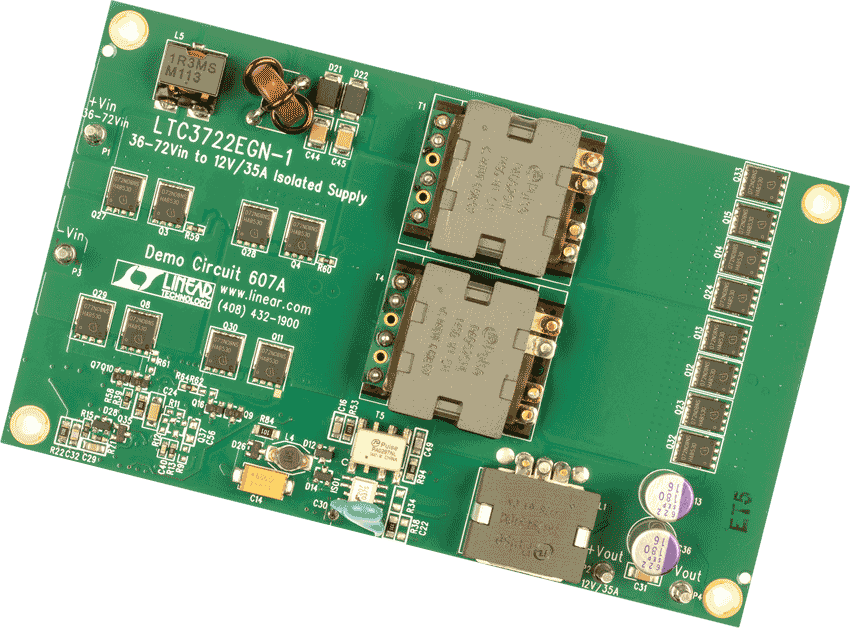

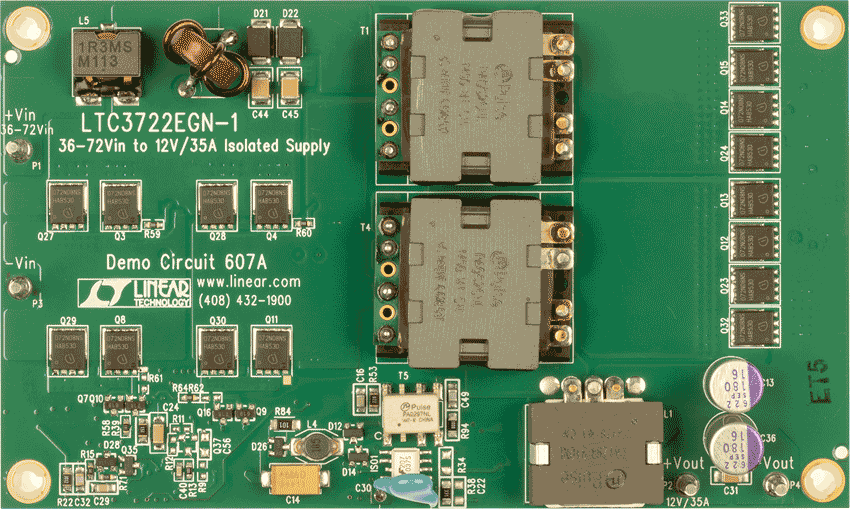

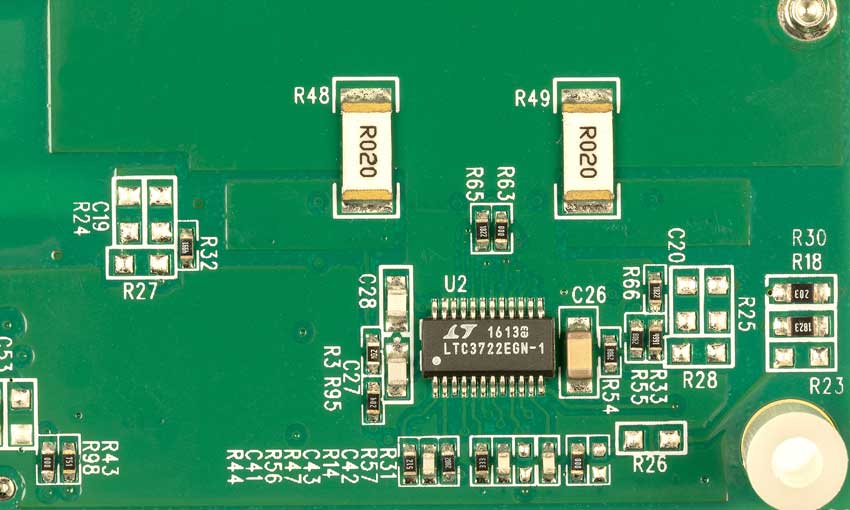

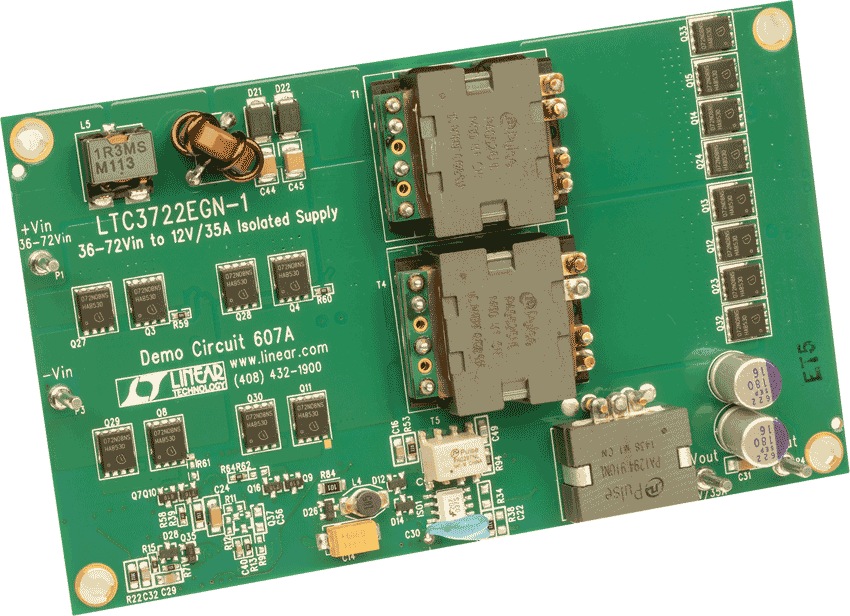

DC607A
LTC3722-1 Demo Board | Isolated Full-Bridge, 36V to 72V Input, VOUT = 12V @ 35A
トップへ
製品概要
製品概要
Demonstration circuit 607 is an Isolated Full-Bridge Converter featuring the LTC3722, LTC4440, LTC3901, and LT1431. This circuit was designed to demonstrate the phase-shifted full bridge power supply to generate 12V at 35A from a typical telecom input voltage range of 36 to 72V. Isolation voltage is 1500VDC.
対象となる製品
関連資料
-
DC607A - Schematic2015/05/27PDF52K
-
DC607A - Demo Manual2017/04/24PDF801K
-
DC607A - Design File2015/05/27ZIP1M
