DC385A
LTC1778EGN Demo Board | IMVPII I/O Power Supply, VIN = 5V-25V, VOUT = 1.2V @ 6A
トップへ
製品概要
製品概要
Demonstration circuit DC385 is a high density synchronous step-down (buck) regulator using the LTC1778 No RSENSE switching regulator controller. This controller uses a valley current control architecture to deliver very low duty cycles without requiring a sense resistor. The demo board input voltage range is 5V to 25V and it provides 1.2V@6A at the output.
対象となる製品
関連資料
-

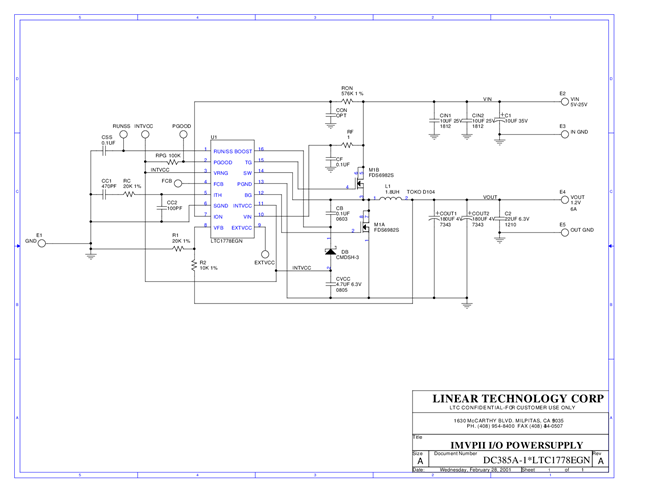

DC385A - Schematic2009/09/24PDF19K
-
DC385A - Demo Manual2009/09/24PDF122K
-
DC385A - Design File2009/09/24ZIP874K
