DC2154A

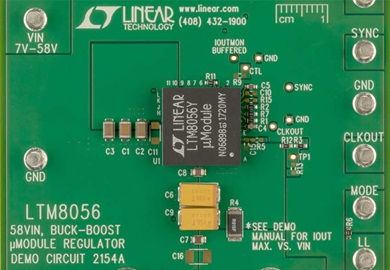

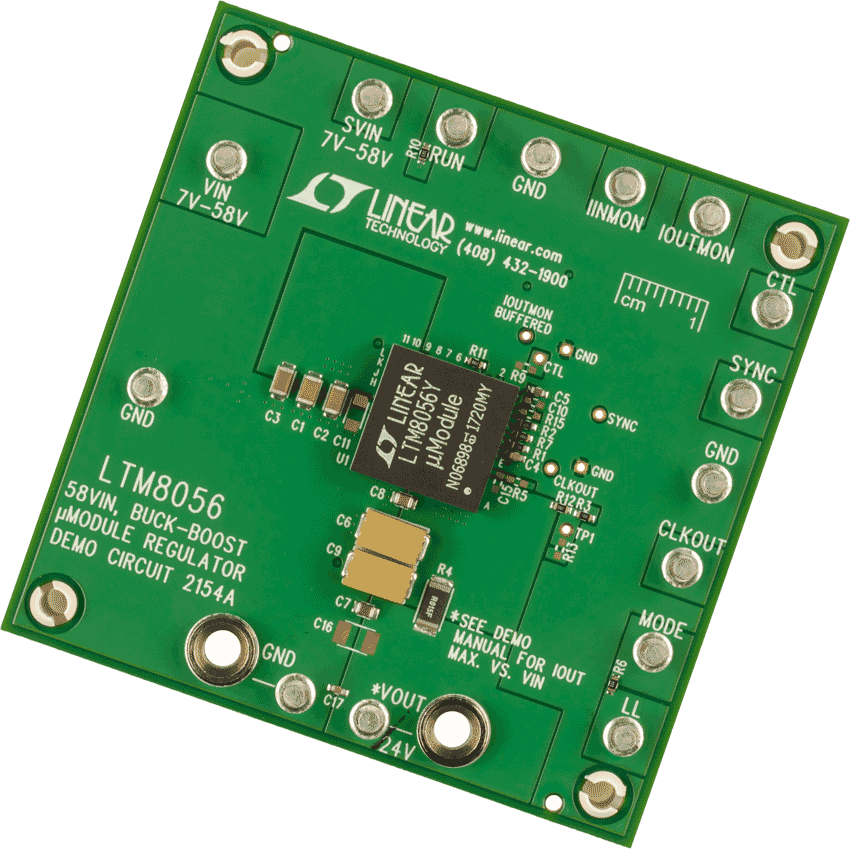

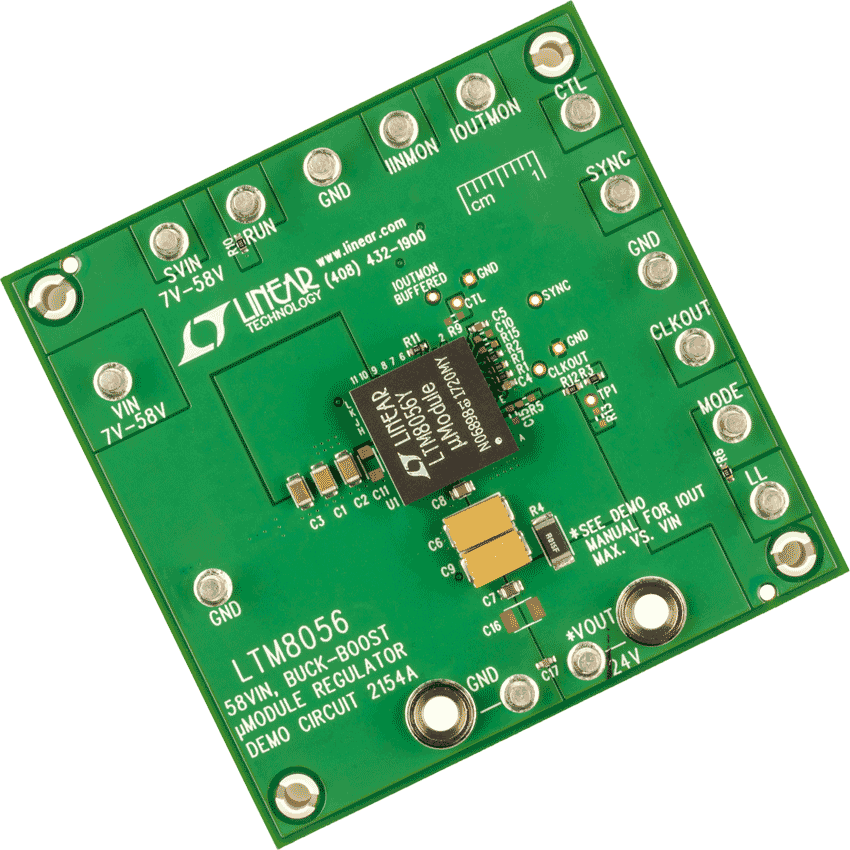

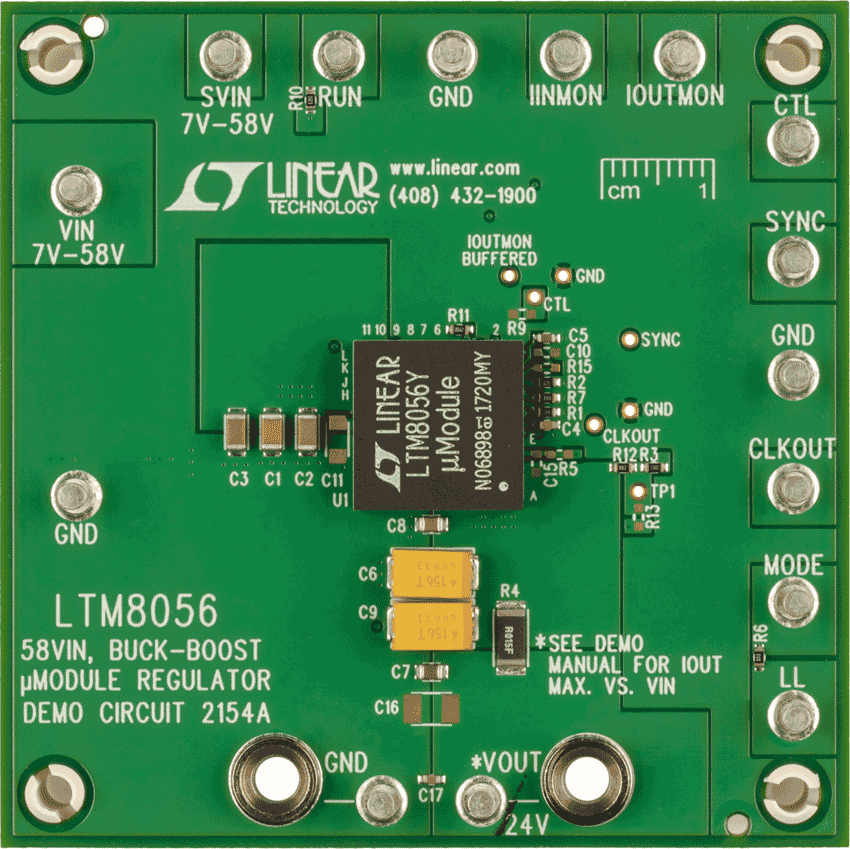

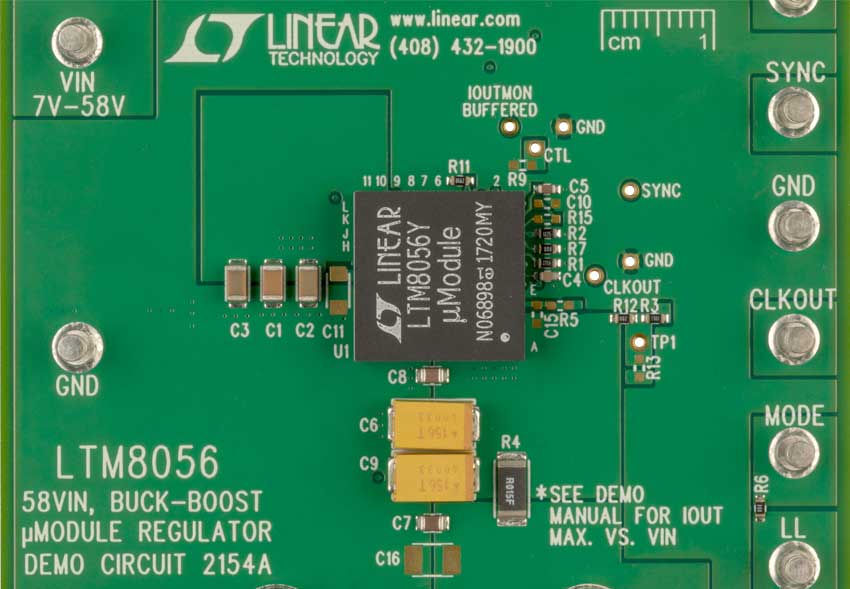

LTM8056EY Demo Board | Buck-Boost μModule Regulator, 7V ≤ VIN ≤ 58V, VOUT = 24V @ 3A
トップへ
製品概要
製品概要
Demonstration circuit 2154A features the LTM8056, a buck-boost μModule® regulator that accepts input voltages lower, higher or the same as the output, but is also highly efficient due to its four-switch architecture. The output for DC2154A is 24V and the input voltage range is 7V to 58V. The maximum output current is 3A and the switching frequency is 525kHz.
関連資料
-

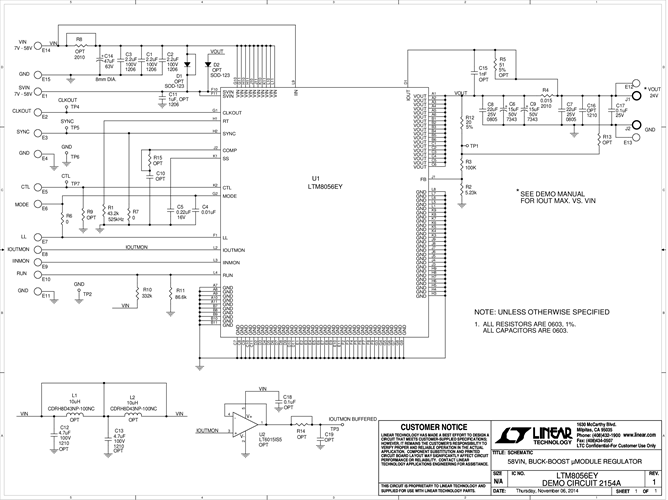

DC2154A - Schematic2015/02/13PDF35K
-
DC2154A - Demo Manual2015/02/13PDF706K
-
DC2154A - Design Files2015/02/13ZIP995K
