DC2087A
LTM4676 Demo Board | Buck µModule, 4.5V ≤ VIN ≤ 16V, VOUT = 1V @ 26A
トップへ
製品概要
製品概要
Demonstration circuit 2087A is a single-output, high efficiency, high density, μModule® regulator with 4.5V to 16V input range. It can supply 26A maximum load current. The demo board has a LTM4676 μModule regulator, which is a dual 13A or single 26A step-down regulator with PMBus power system management. Please see LTM4676 data sheet for more detailed information.
対象となる製品
関連資料
-

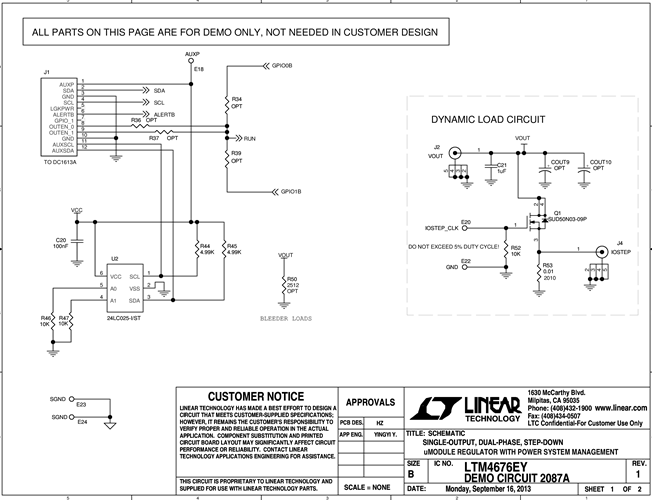

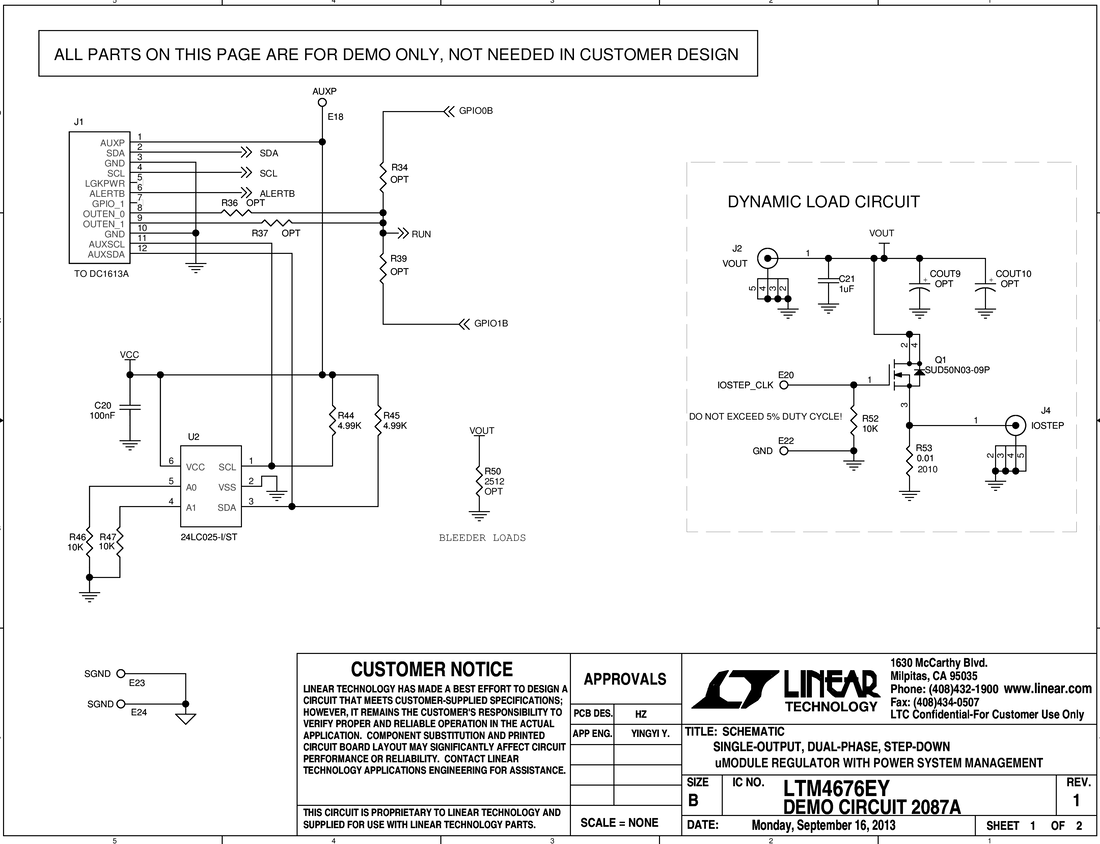

DC2087A - Schematic2014/02/10PDF101K
-
DC2087A - Demo Manual2014/02/10PDF2M
-
DC2087A - Design Files2014/02/10ZIP1M
