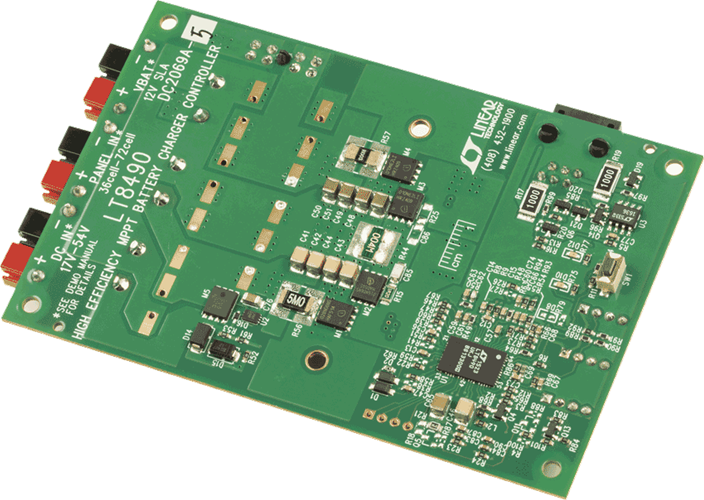

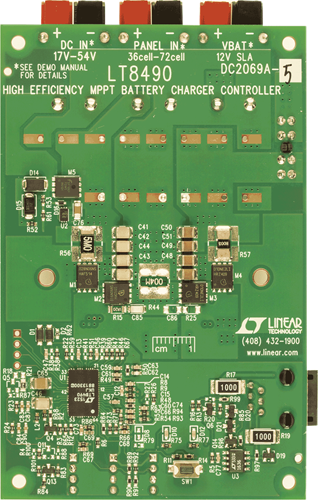

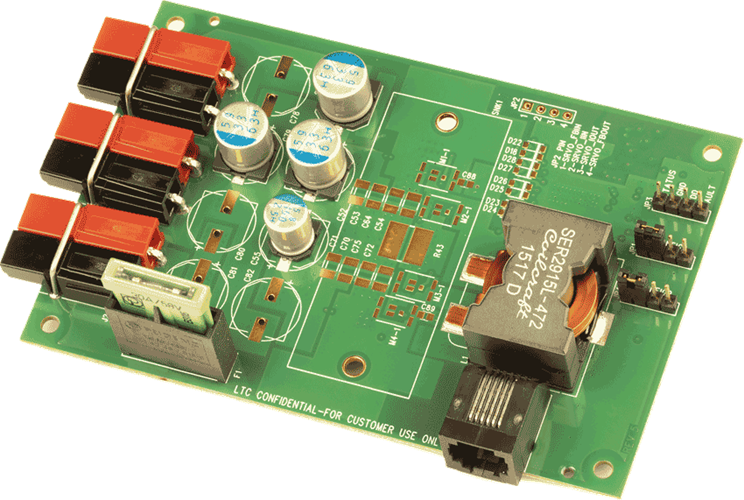

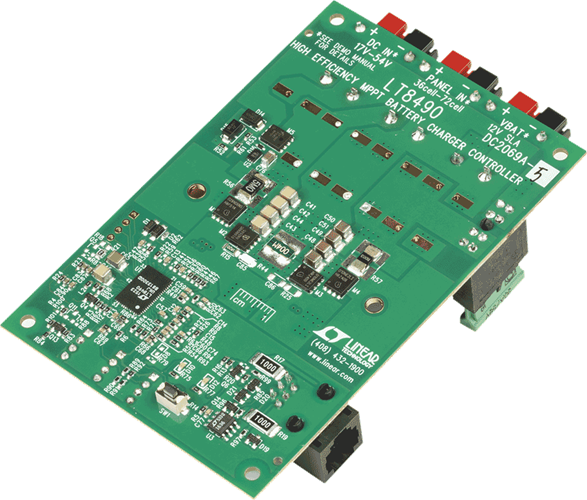

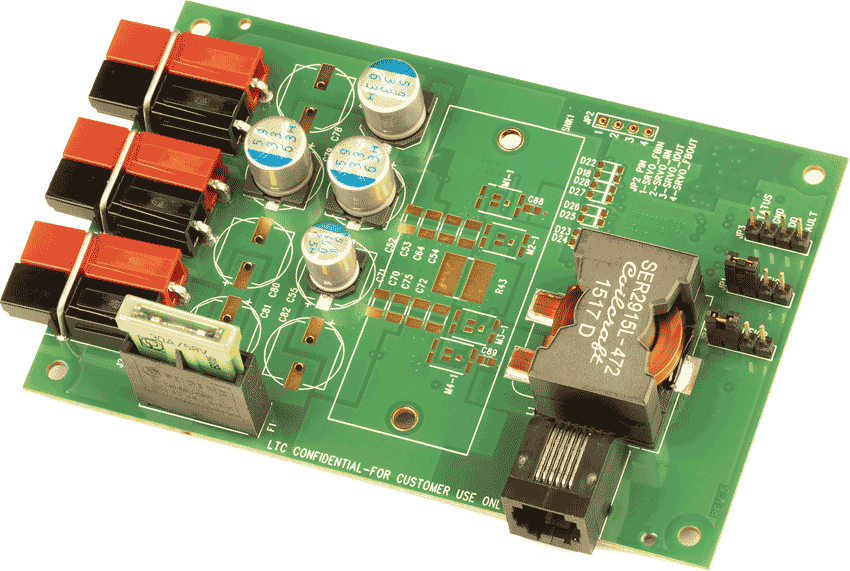

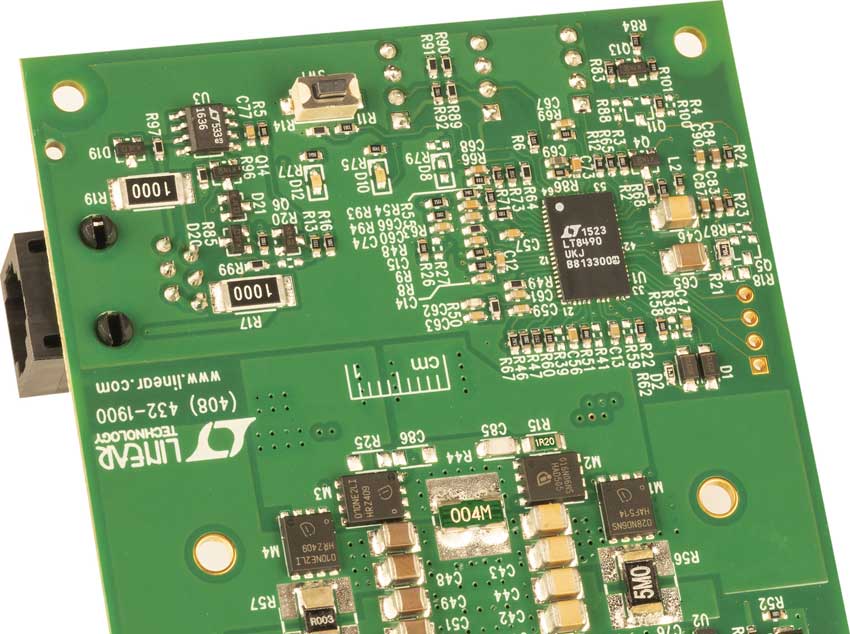

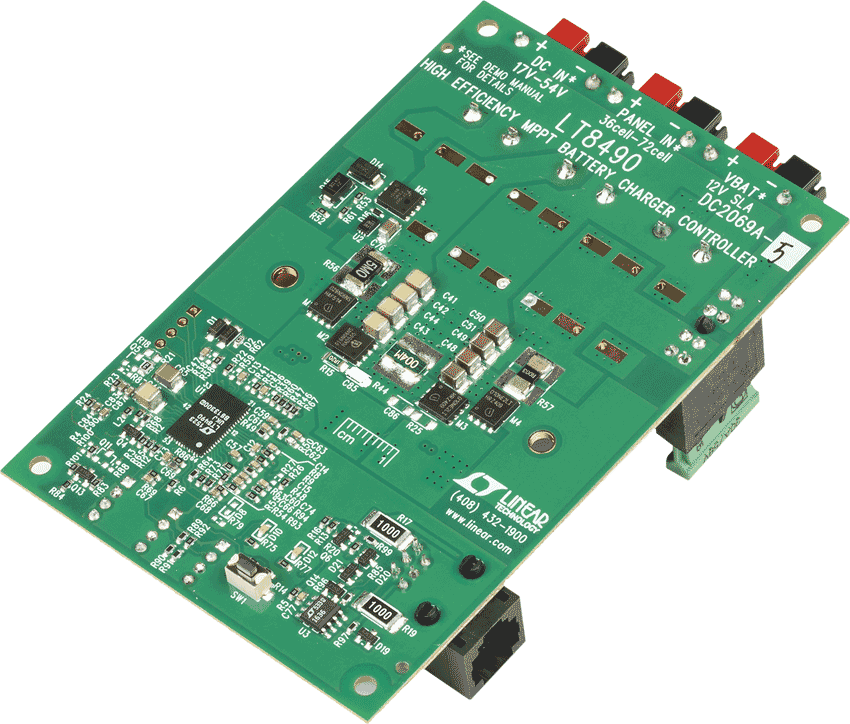

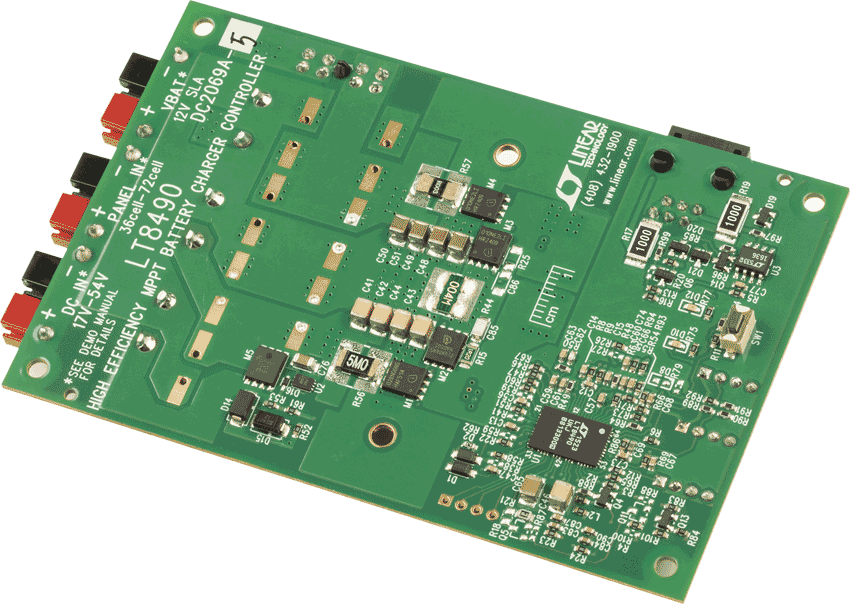

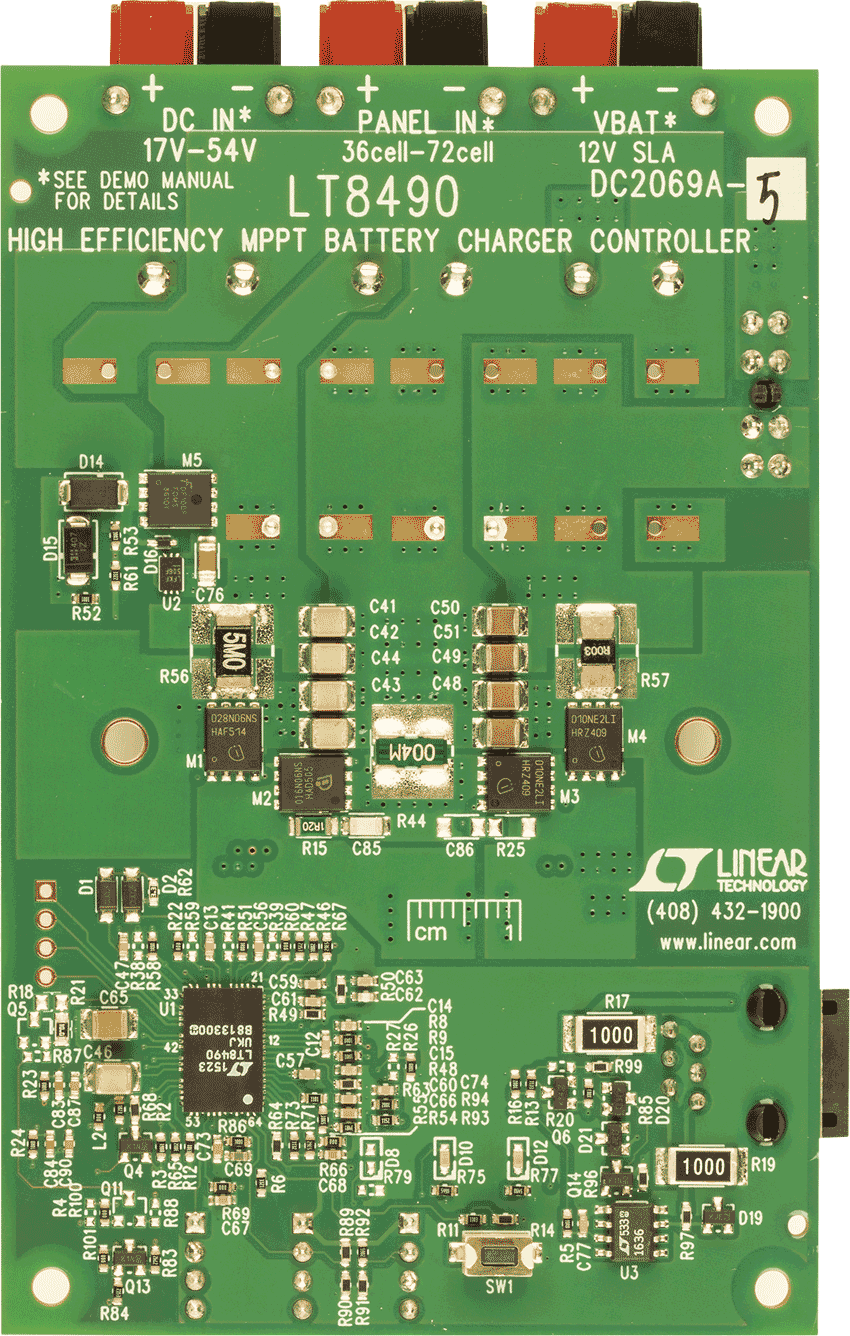

DC2069A
LT8490 Demo Board | High Efficiency MPPT Buck-Boost Battery Charger Controller 17V To 54V Up To 200W Solar Panel VIN. 12V SLA Battery @ Up To 16.6A Charge Current
トップへ
製品概要
製品概要
Demonstration circuit 2069A features LT8490, a high performance buck-boost converter that implements an MPPT function and flexible charging profiles suitable for most battery types such as flooded and sealed lead acid batteries and Lithium-Ion batteries, and can operate from input voltages above, below or equal to the battery voltage.対象となる製品
関連資料
-

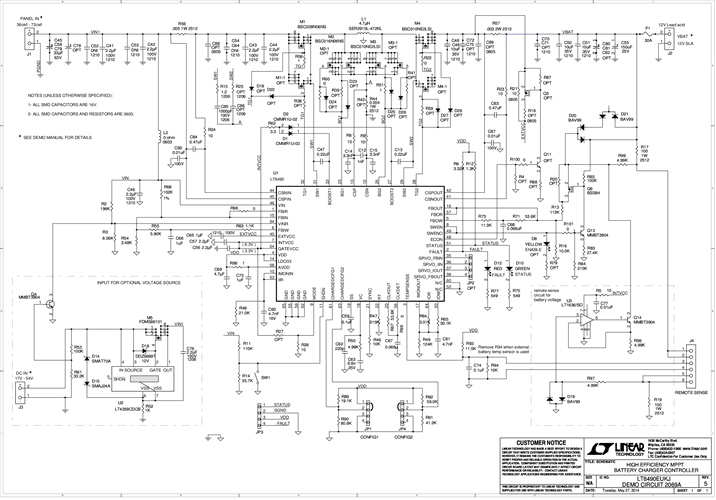

DC2069A - Schematic2014/05/29PDF60K
-
DC2069A - Demo Manual2015/09/22PDF408K
-
DC2069A - Design Files2015/05/20ZIP1M
