DC2001A

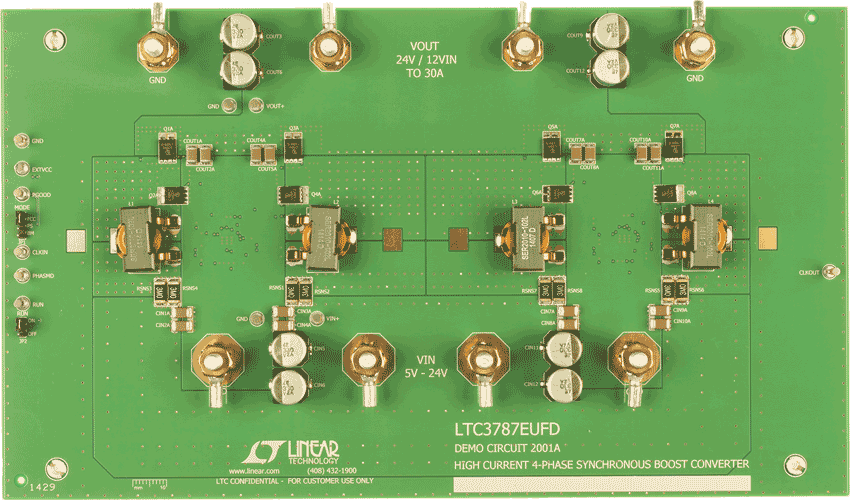

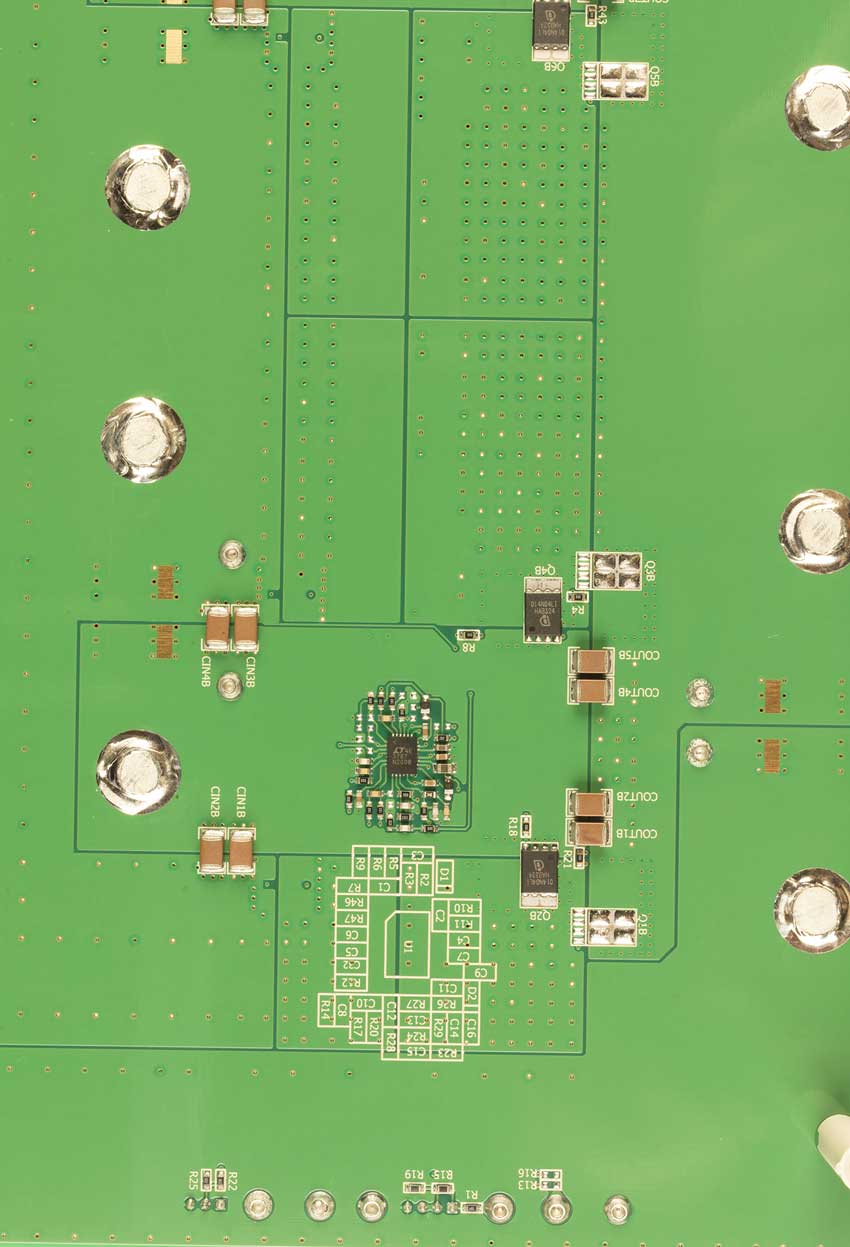

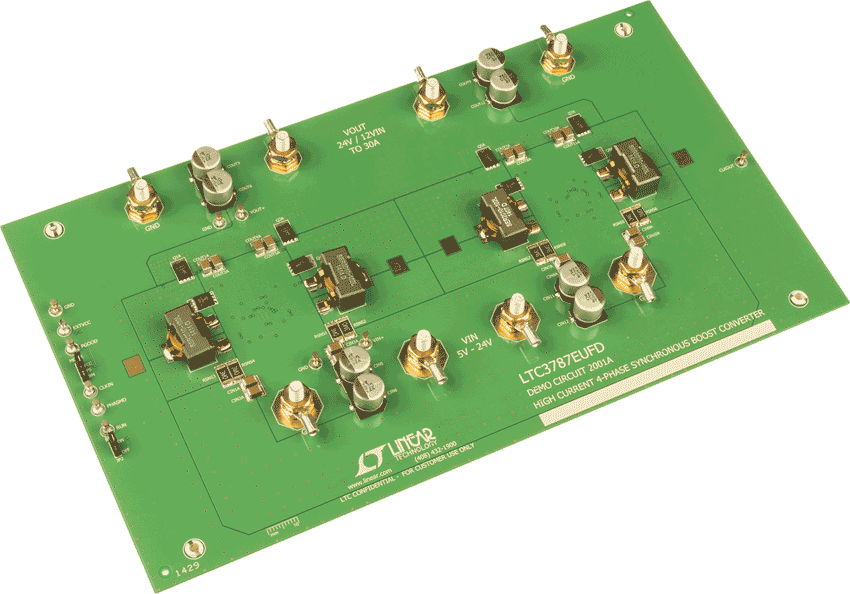

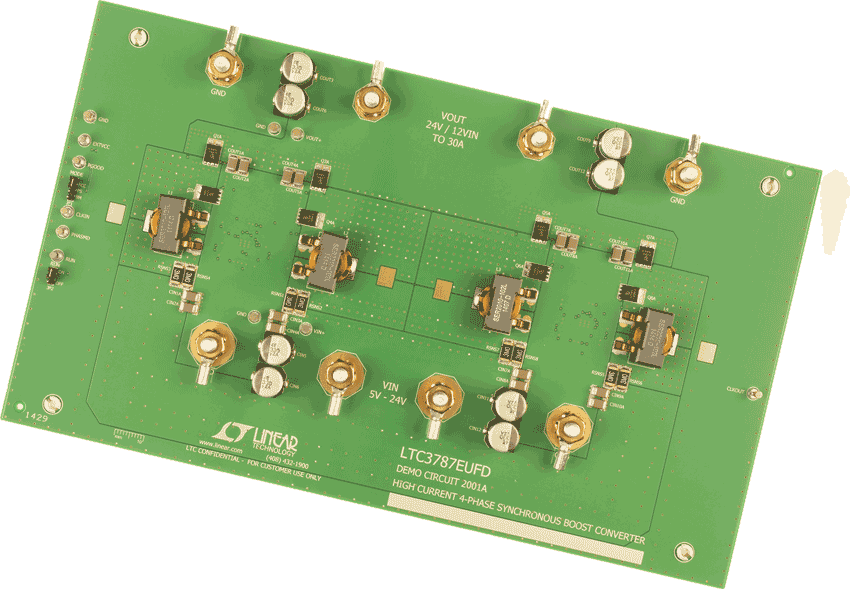

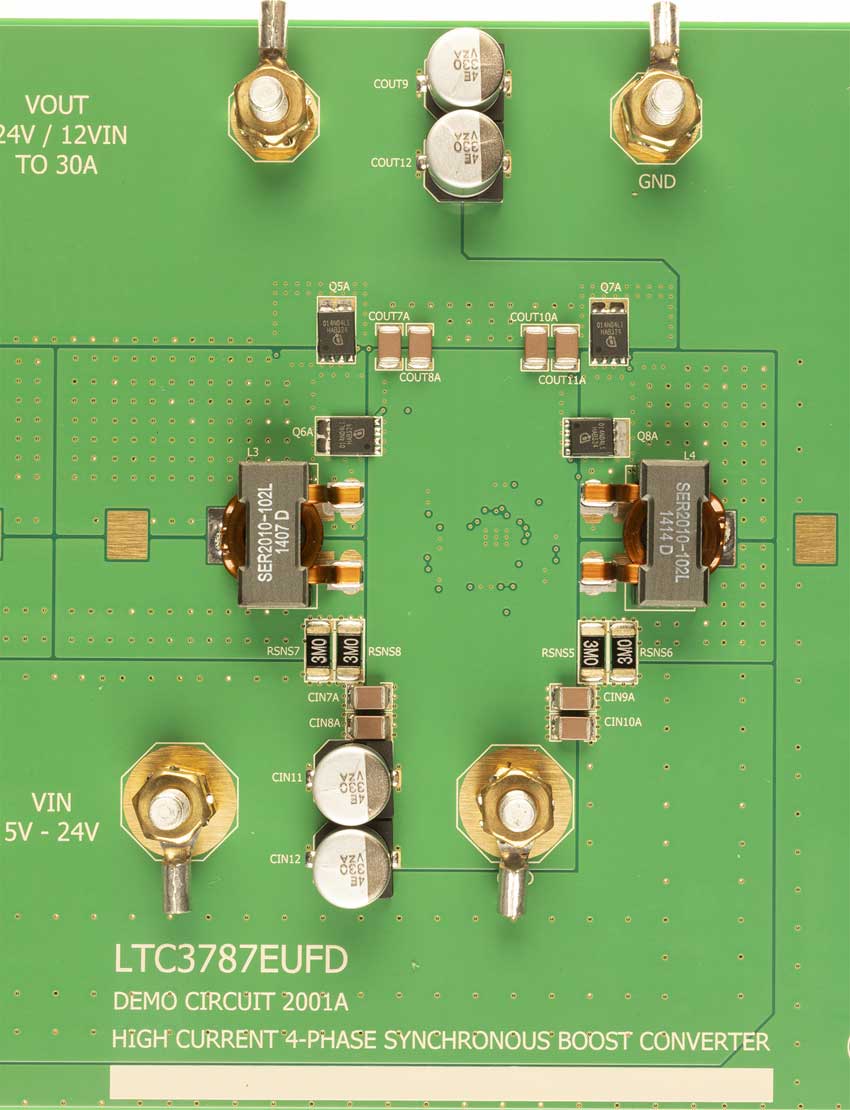

LTC3787EUFD Demo Board | LTC3787(x2) Paralleled Boost Controllers, 6V ≤ VIN ≤ 24V, VOUT = 24V @ Up to 30A
トップへ
製品概要
製品概要
Demonstration circuit 2001A is a step-up DC/DC converter using two LTC3787EUFD dual-phase synchronous boost controllers in a parallel configuration for high current, high power 4-phase operation. The DC2001A has an input supply voltage range from 6V to 24V. The converter provides an output voltage of 24V, with a very high efficiency output of 25A to 30A.
対象となる製品
関連資料
-

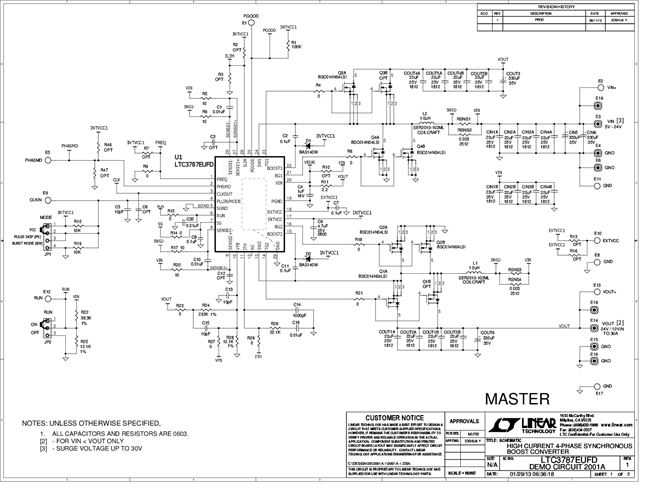

DC2001A - Schematic2013/05/31PDF121K
-
DC2001A - Demo Manual2013/03/21PDF810K
-
DC2001A - Design Files2013/05/31ZIP5M
