DC1898A

LTC3899EFE Demo Board | Triple Buck/Buck/Boost Controller, V_OUT3 Powers V_OUT1/V_OUT2; 2.5V ≤ V_IN ≤ 60V; V_OUT1 = 5V @ 5A, V_OUT2 = 8.5V @ 3A, V_OUT3 = 10V @ 5.5A

トップへ

製品概要

製品概要

製品概要

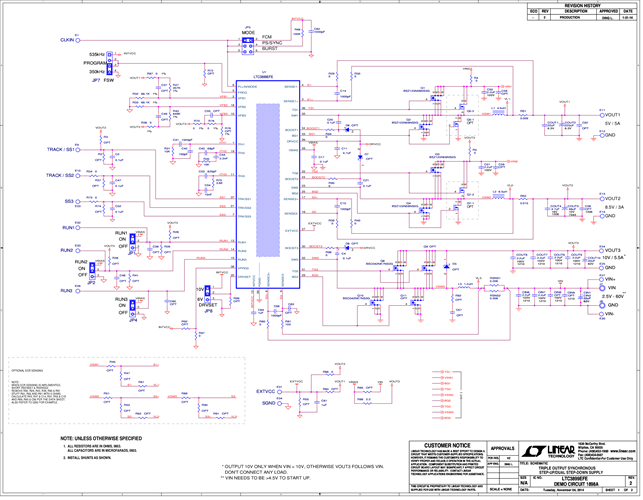

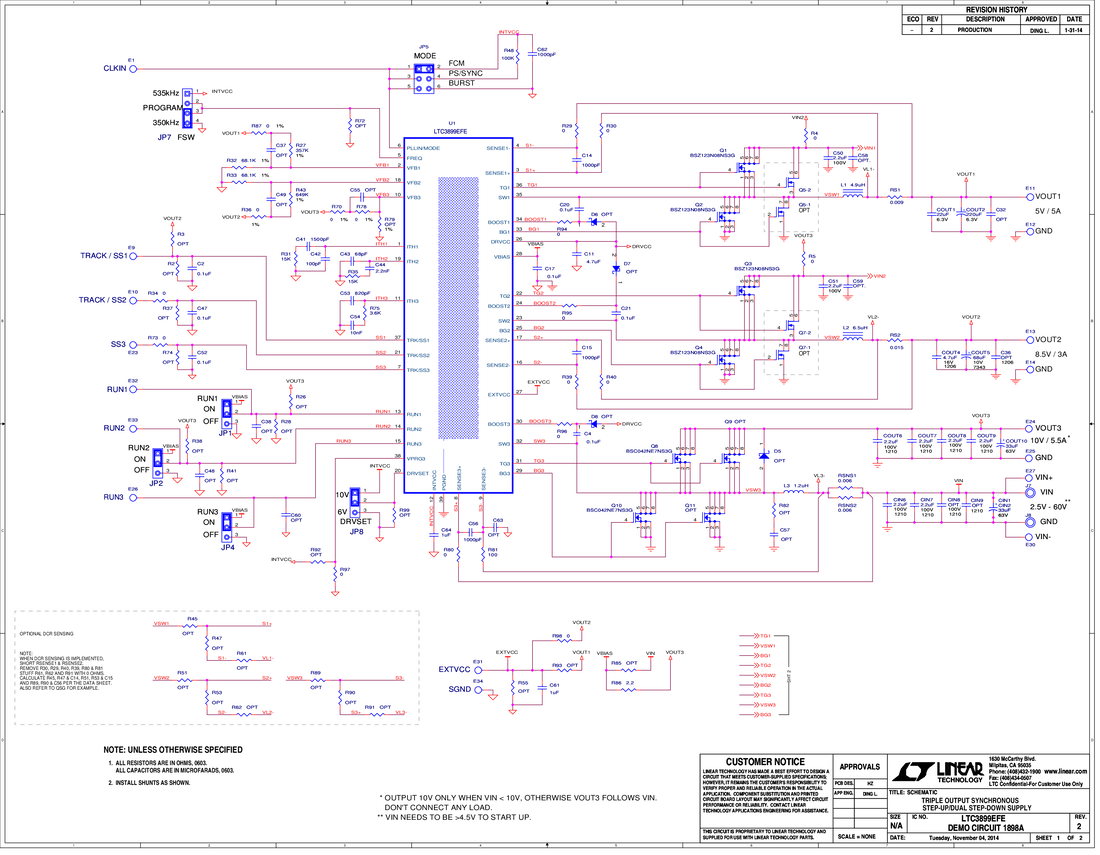

Demonstration circuit 1898A is a triple output synchronous step-up/dual step-down supply featuring the LTC3899EFE. The circuit is using a drop-in layout: the main buck circuit components fit in an area of ¾˝ × 1½˝, while the main boost circuit area is ¾˝ × 1¾˝. The package style for the LTC3899EFE is a 38-pin exposed pad TSSOP package.
