DC1891A
LTC3862EFE-2 Demo Board | 2-Phase SEPIC, 6V ≤ VIN ≤ 60V; VOUT = 12V @ 6A
トップへ
製品概要
製品概要
Demonstration circuit 1891A is a 2-phase high efficiency nonisolated SEPIC (Single Ended Primary Inductor Converter) converter featuring the LTC3862-2 switching controller. The DC1891A converts a 6V to 60V input to a 12V output and provides 6A of output current. The DC1891A can be easily modified to generate output voltages in the range from 0.8V to 48V.
対象となる製品
関連資料
-

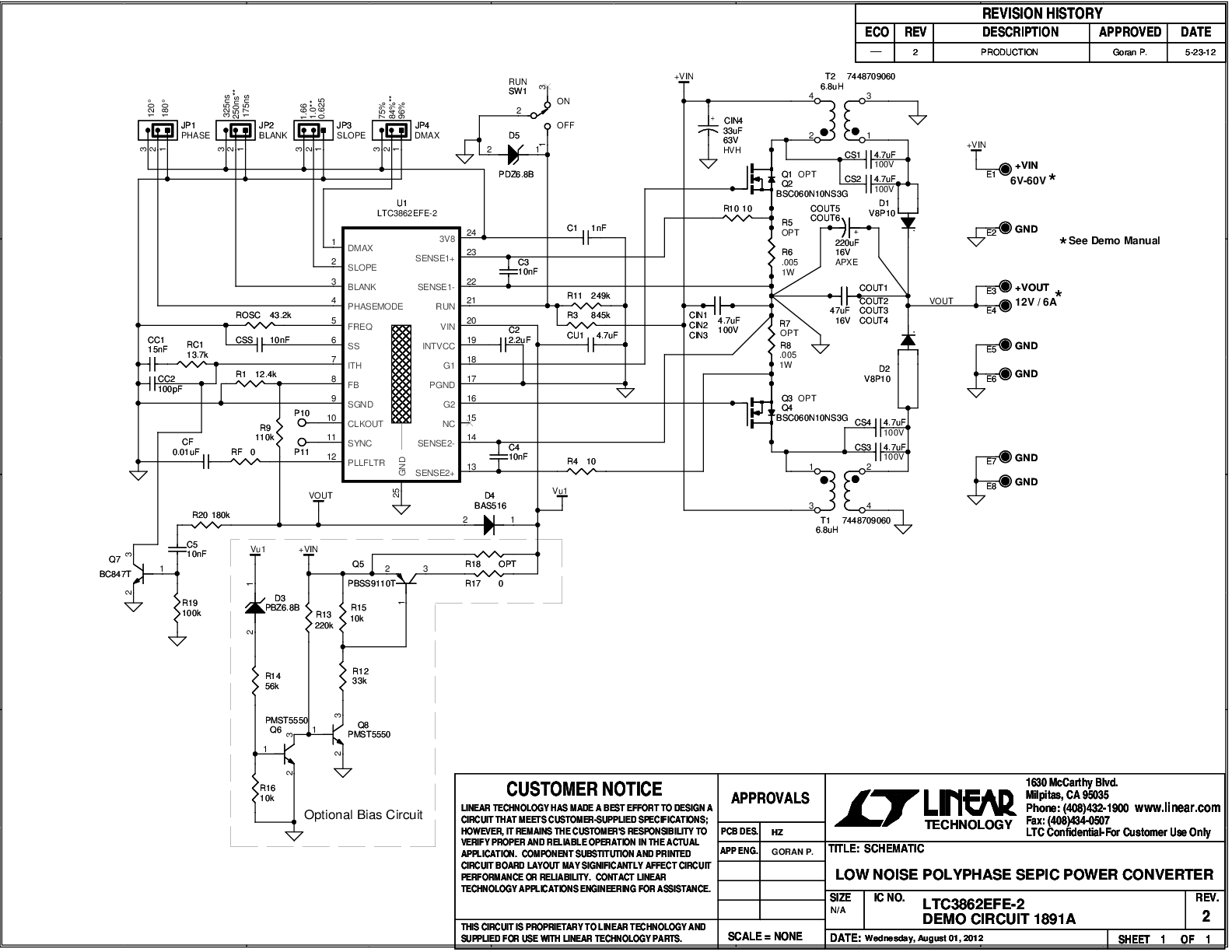

DC1891A - Schematic2012/10/03PDF62K
-
DC1891A - Demo Manual2012/10/03PDF1M
-
DC1891A - Design Files2012/10/03ZIP1M
