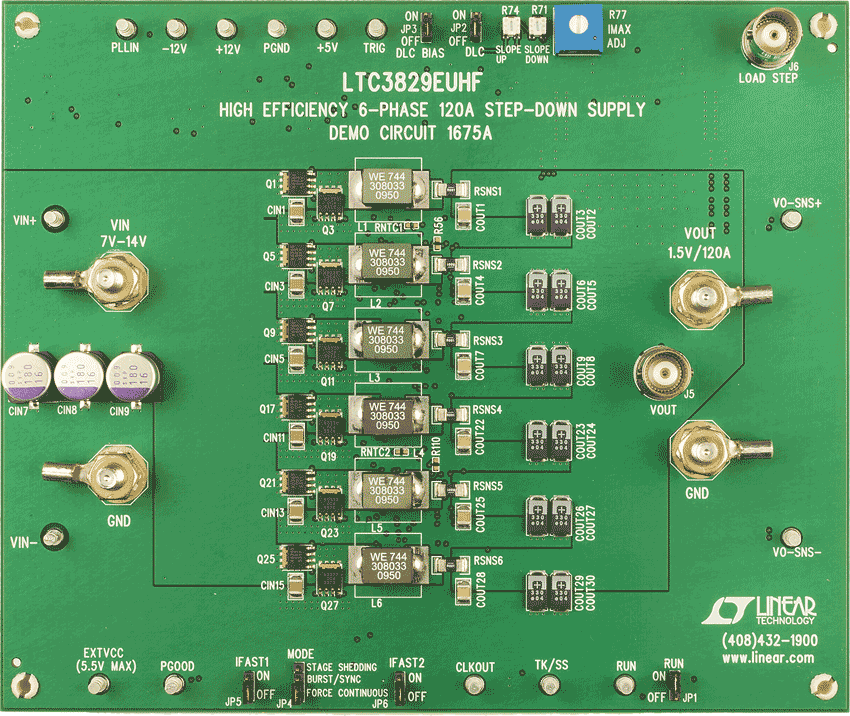

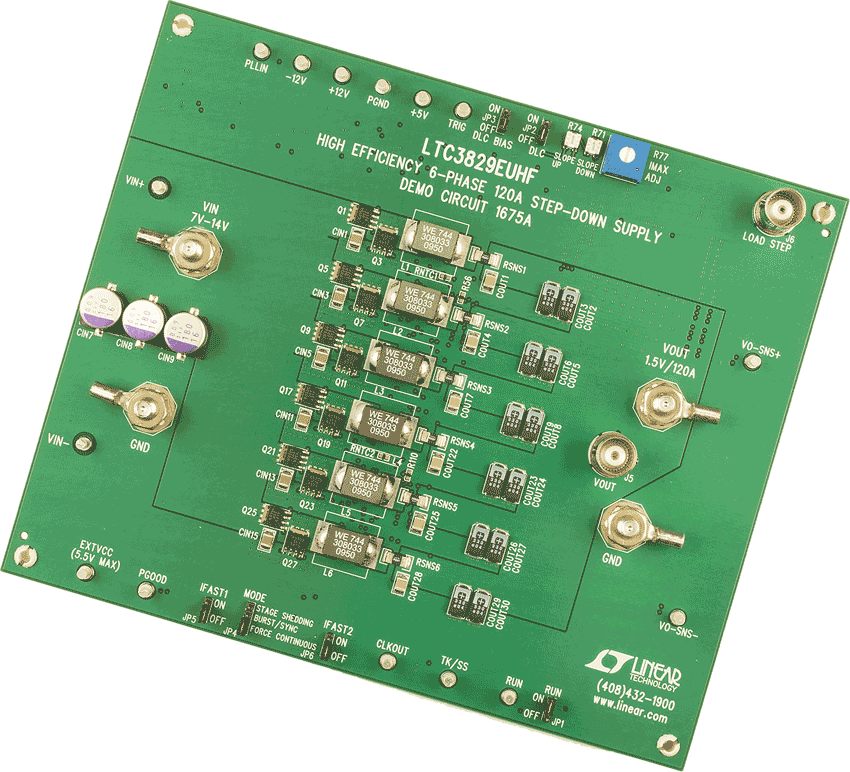

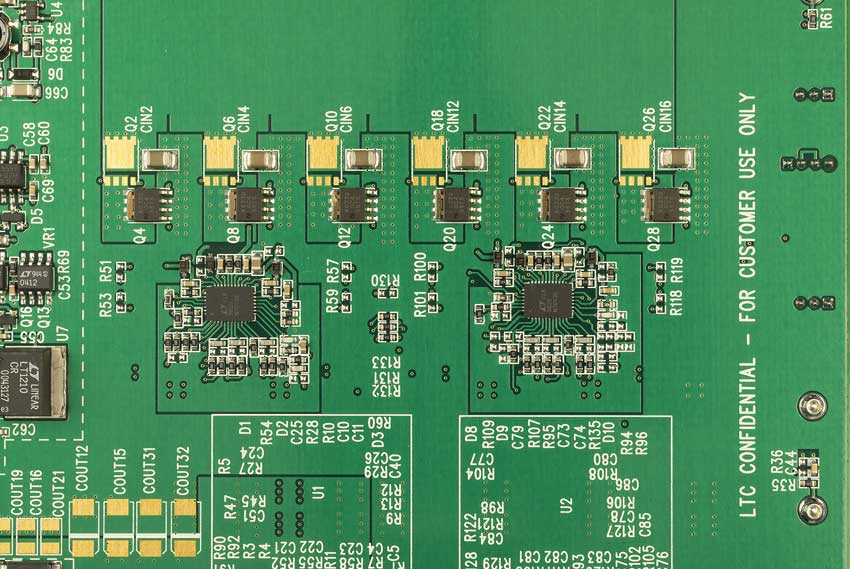

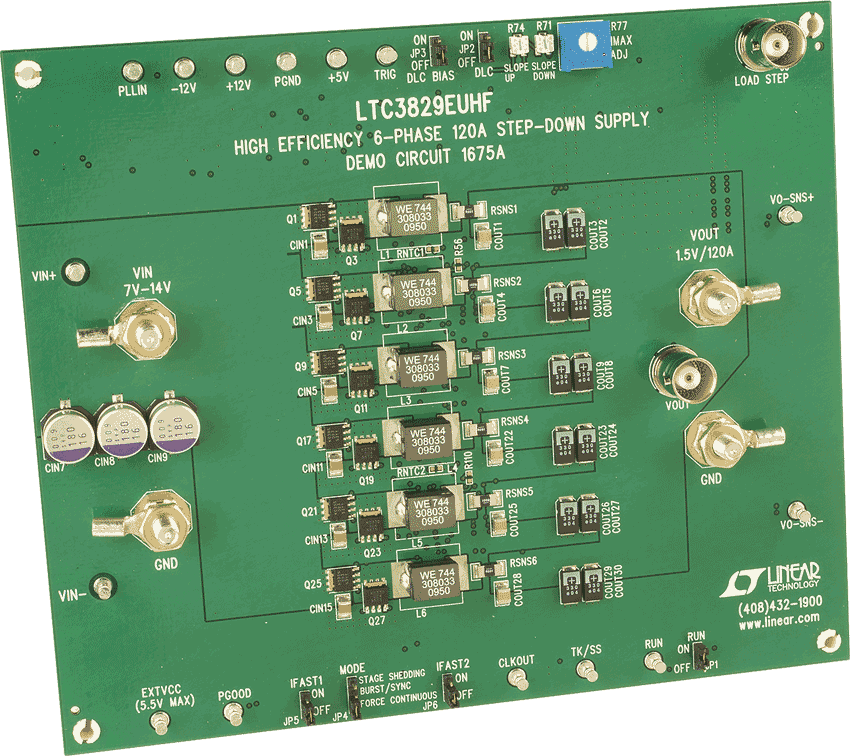

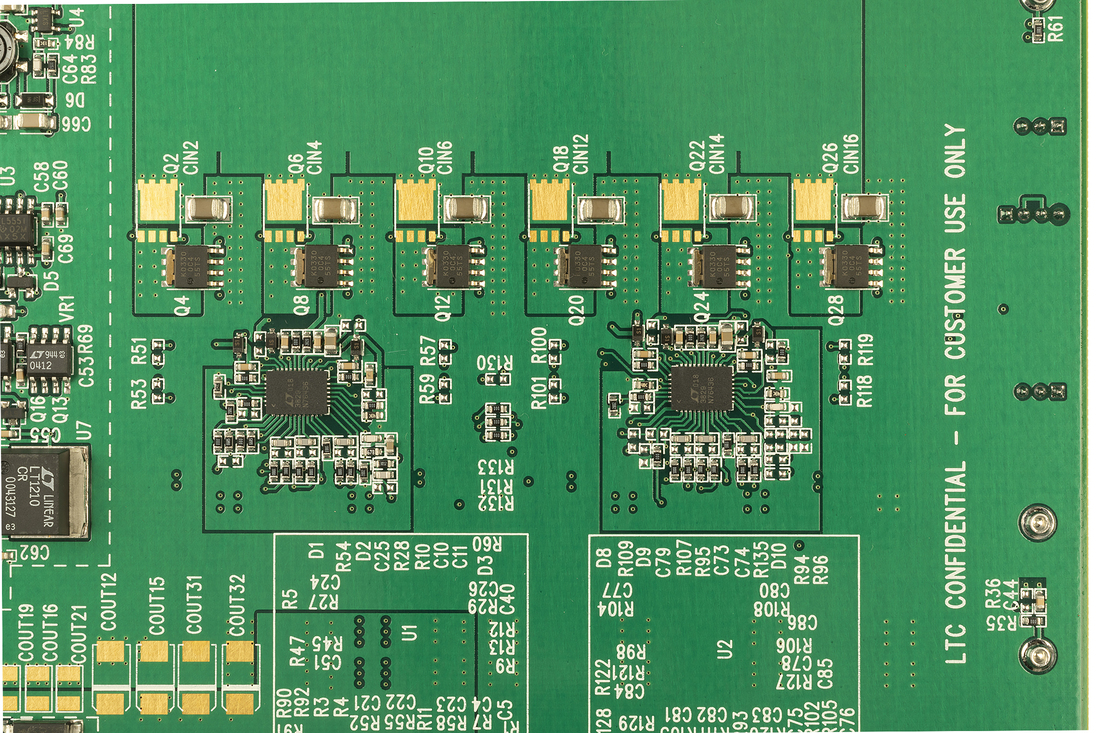

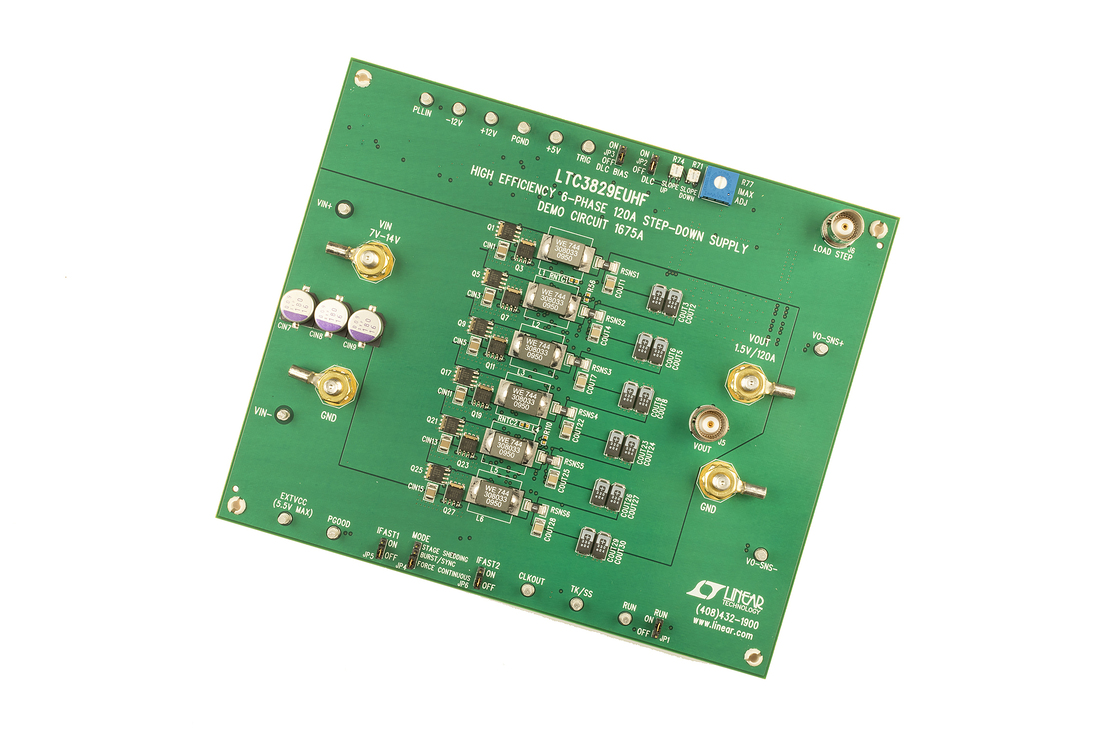

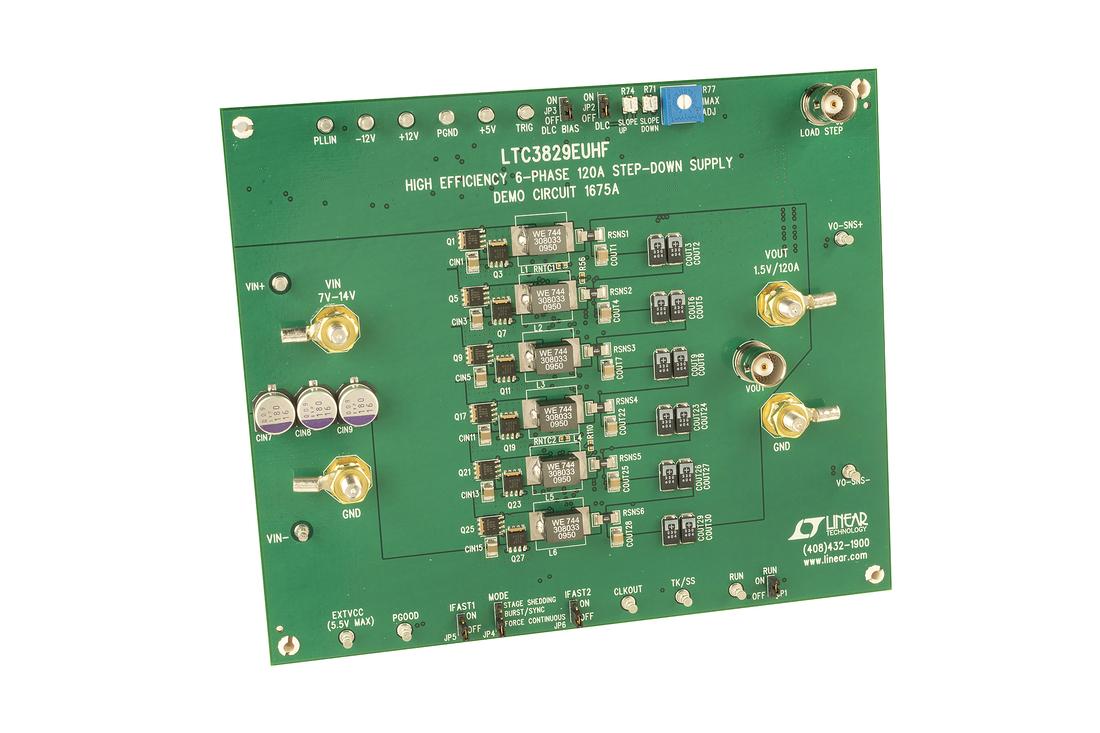

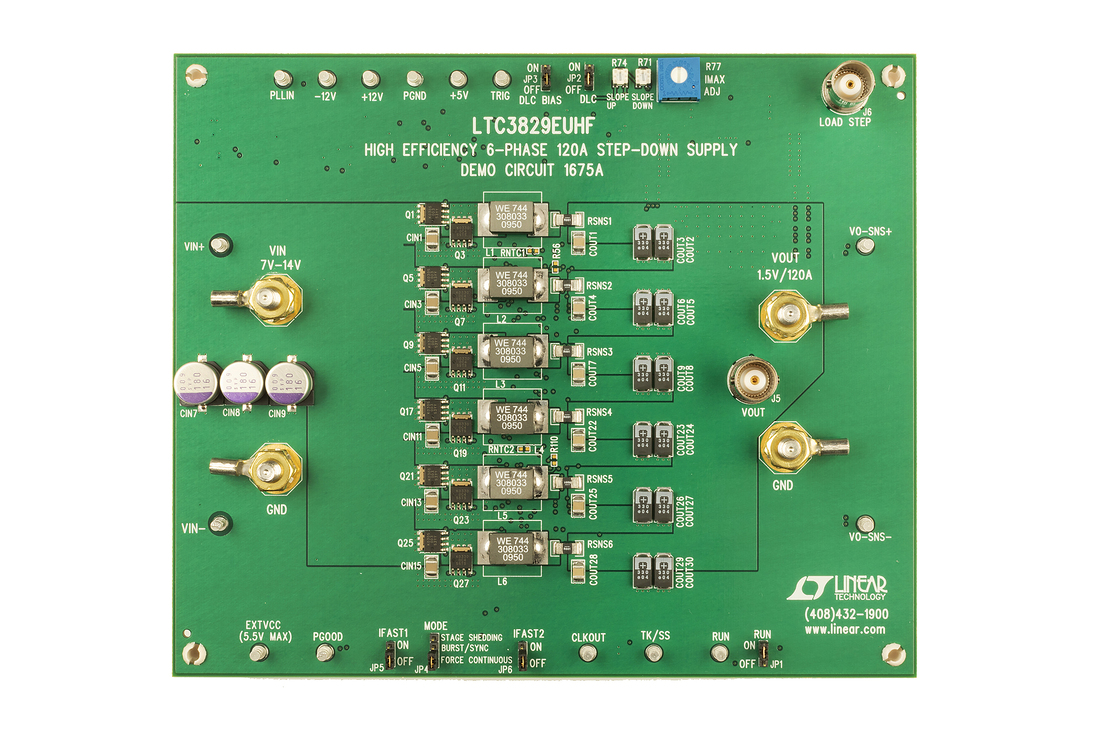

DC1675A
LTC3829EUH Demo Board | LTC3829(×2) 3-Phase Buck, 7V ≤ VIN ≤ 14V, VOUT= 1.5V @ 120A
トップへ
製品概要
製品概要
Demonstration circuit 1675A is a high efficiency, 6-phase, synchronous buck converter with a 7V to 14V input range that utilizes two LTC3829 controllers. It can supply 120A maximum load current with a 1.5V output voltage. The LTC3829 is a feature-rich single-output 3-phase synchronous buck controller with on-chip drivers and remote output voltage sensing.
対象となる製品
関連資料
-

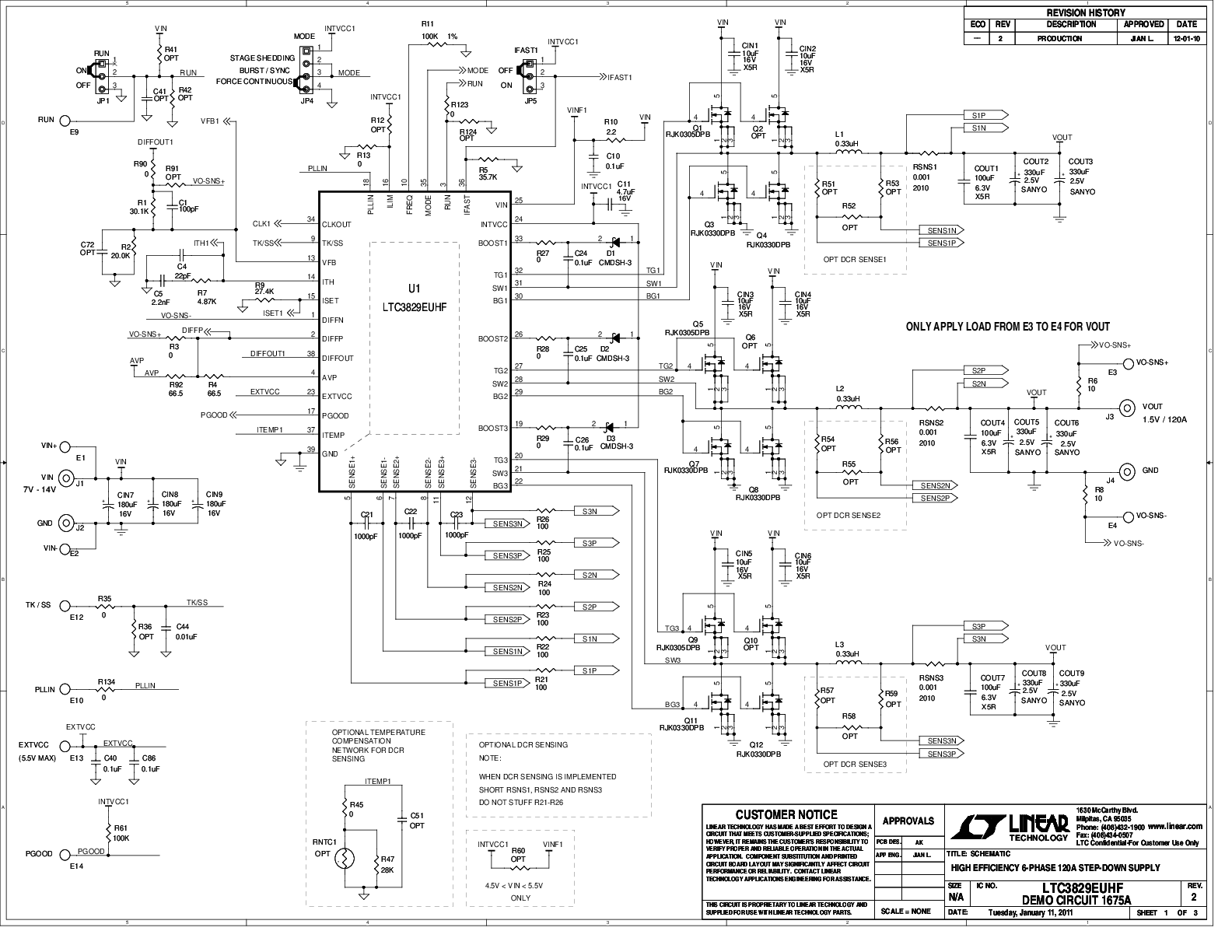

DC1675 - Schematic2012/03/06PDF191K
-
DC1675A - Demo Manual2011/03/30PDF1M
-
DC1675A - Design Files2011/03/30ZIP2M
