DC1562B-L
LTC6994-2 Demo Board | 100ms, Output Rising Edge Delayed from Trigger Rising Edge
トップへ
製品概要
製品概要

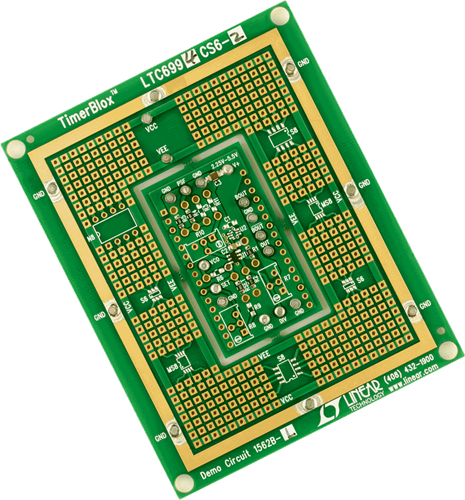

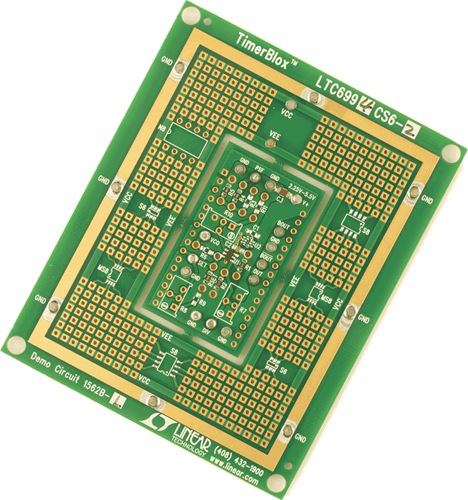

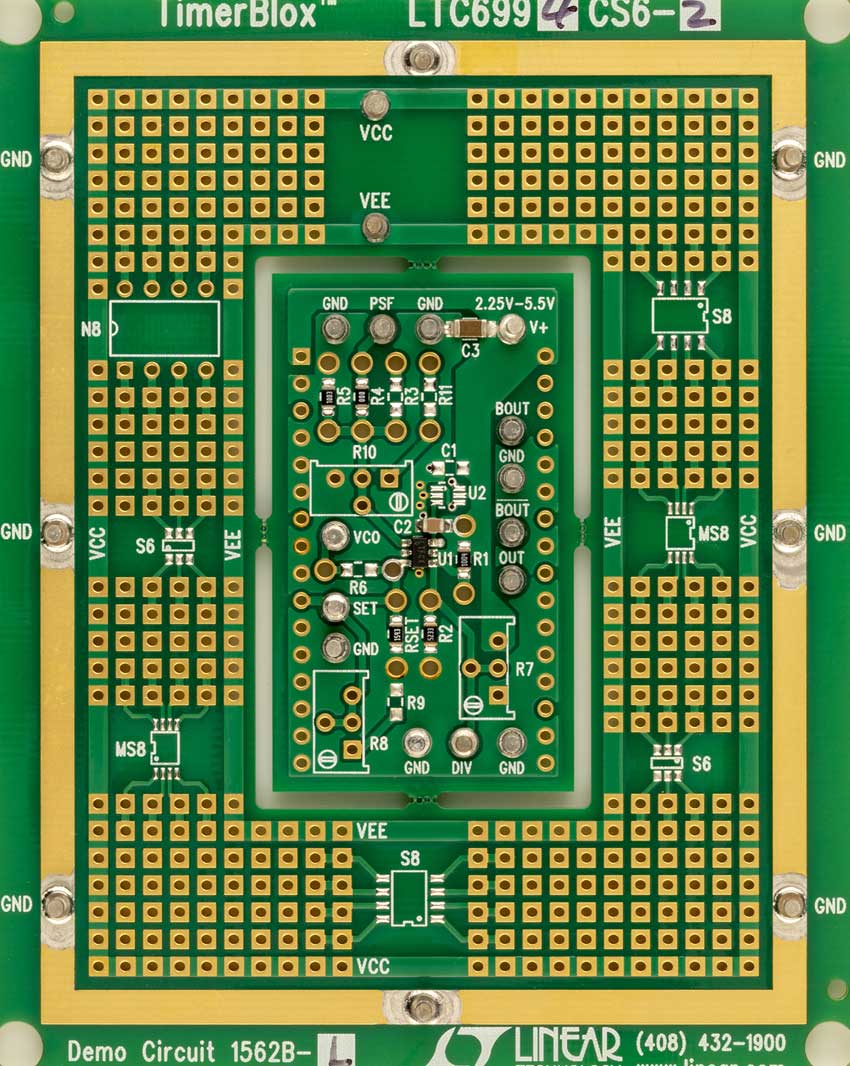

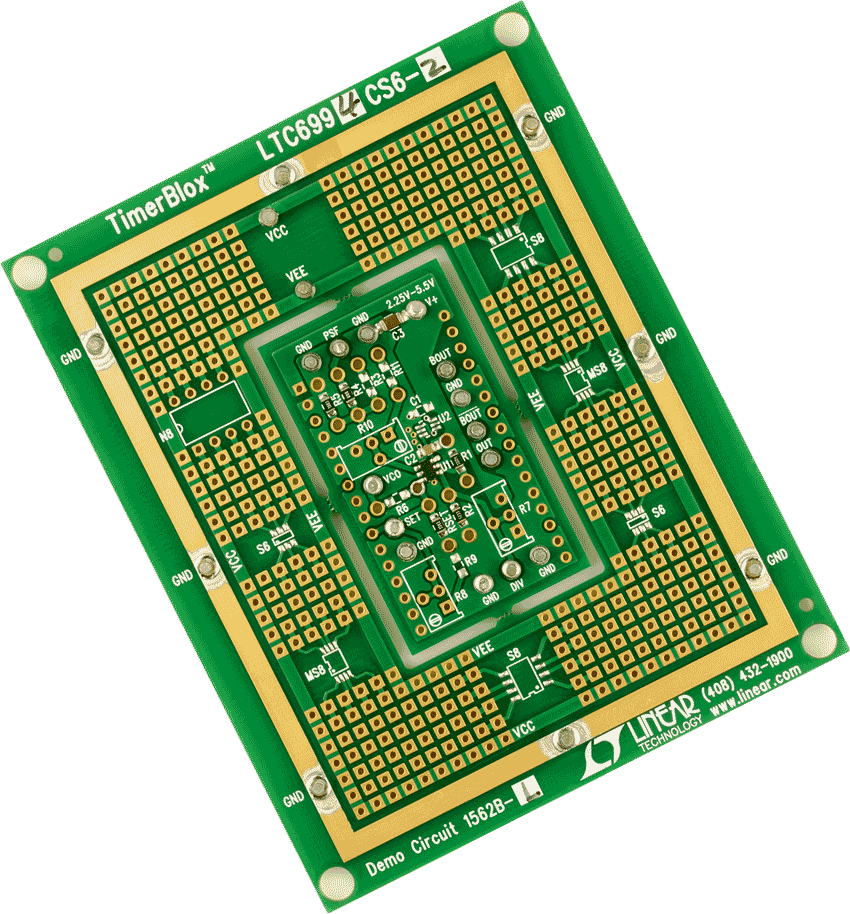

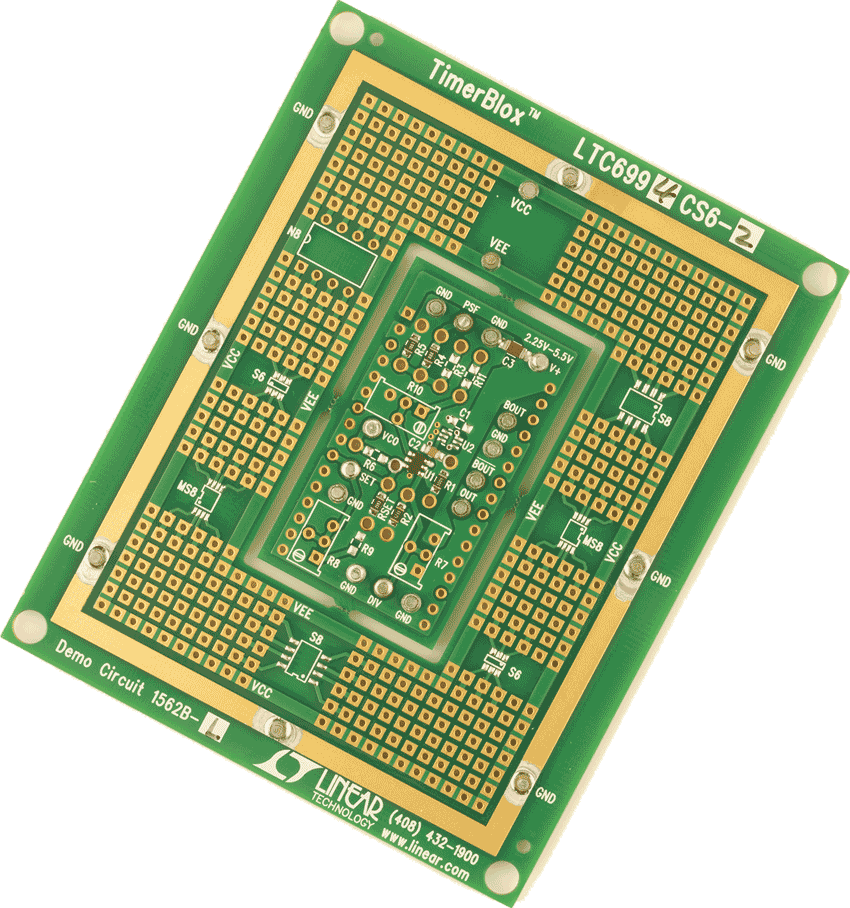

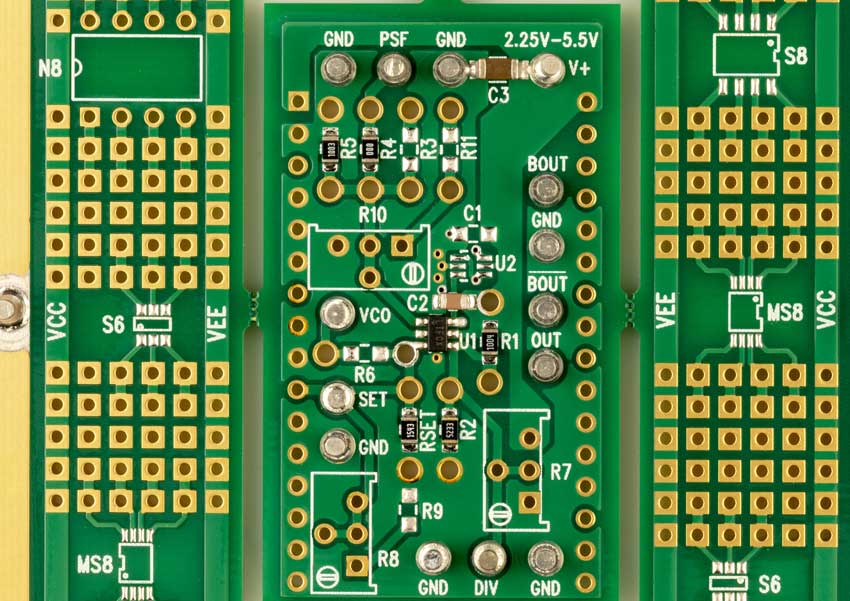

Demonstration circuit 1562B is an engineering tool to design and evaluate the LTC699X-X family of TimerBlox® circuits. The center section of the board contains a preconfigured TimerBlox function. DC1562B comes in twelve timing function variations.
対象となる製品
関連資料
-
DC1562B - Schematic2013/08/22PDF50K
-
DC1562B - Demo Manual2013/08/22PDF392K
-
DC1562B - Design Files2013/08/22ZIP899K
