DC1487A
LTC3854EMSE Demo Board | 4.5V ≤ VIN ≤ 34V, VOUT = 2.5V @ 12A
トップへ
製品概要
製品概要
Demonstration circuit 1487A is a small foot print, wide input voltage range, high efficiency synchronous buck converter with 4.5V to 34V input range. It can supply 12A maximum load current at 2.5V output. The demo board features the LTC3854EMSE controller. The controller features a 400kHz constant frequency current mode architecture and allows RSENSE or DCR inductor current sensing. The demo board is configured using RSENSE.
対象となる製品
関連資料
-

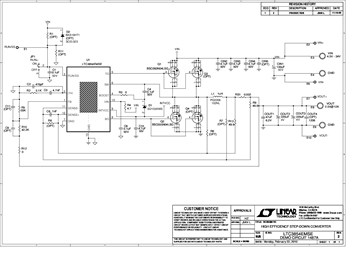

DC1487A - Schematic2010/04/01PDF51K
-
