DC1458A
LT3972EMSE Demo Board | 6.3V ≤ VIN ≤ 33V (62V Transients), VOUT = 5V @ 3.5A
トップへ
製品概要
製品概要
Demonstration circuit 1458 is a monolithic step-down DC/DC switching regulator featuring nonsynchronous LT3972. The demo board is designed for 5V @ 3.5A output from a 6.3V to 33V input with transients up to 62V.
対象となる製品
関連資料
-

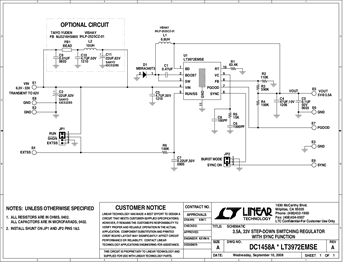

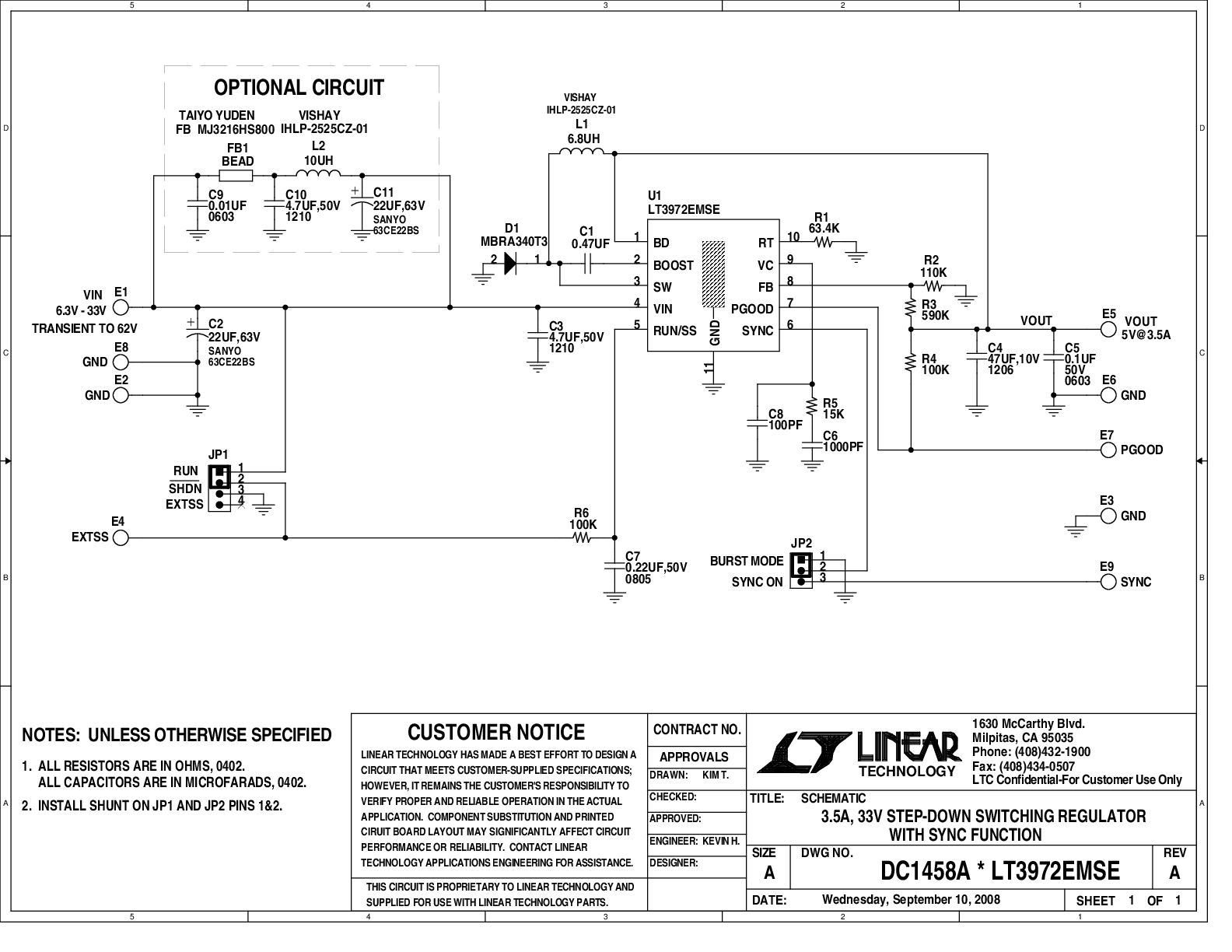

DC1458A - Schematic2009/09/24PDF30K
-
DC1458A - Demo Manual2009/09/24PDF462K
-
DC1458A - Design File2009/09/24ZIP788K
