DC1403A
LT3692A Demo Board I 7V to 36V Input, VOUT1 = 5V @ 3A, VOUT2 = 3.3V @ 3A
トップへ
製品概要
製品概要
Demonstration circuit 1403A is a dual current mode PWM step-down DC/DC converter featuring the LT3692A. The demo circuit is designed for 5V and 3.3V outputs from a 7V to 36V input. The current capability of each channel is up to 3A. Though the LT3692A has over-voltage protection to 60V, the demo board is not designed to highlight this feature.
対象となる製品
関連資料
-

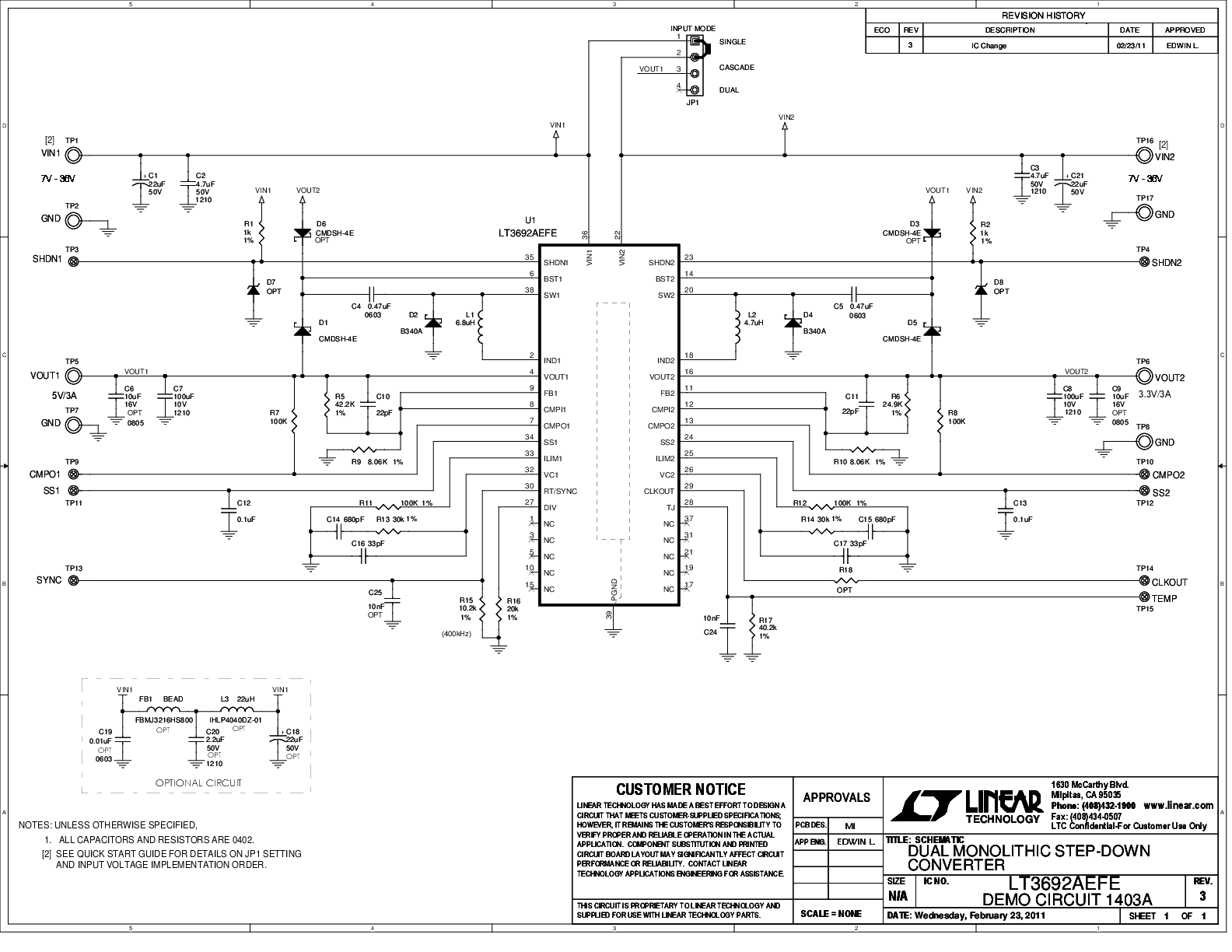

DC1403A - Schematic2011/12/15PDF71K
-
DC1403A - Demo Manual2011/10/30PDF341K
-
DC1403A - Design Files2011/10/30ZIP3M
