LTC3521EUF Demo Board | Buck-Boost Plus Dual Buck, 2.4V ≤ VIN ≤ 5V, VOUT1 = 3.3V @ 0.8A, VOUT2 = 1.2V @ 0.6A, VOUT3 = 1.8V @ 0.6A
トップへ
製品概要
製品概要
Demonstration circuit 1389A is high efficiency triple output DC/DC power supply featuring the LTC3521. The IC includes a 4-switch synchronous Buck-Boost DC/DC converter with a 1A switch rating and two synchronous 600mA Buck converters. The demo board accepts an input voltage between 2.4V and 5V, and provides fixed output voltages of 3.3V @800mA for the Buck-Boost converter and 1.2V & 1.8V @600mA for the Buck converters.
対象となる製品
関連資料
-

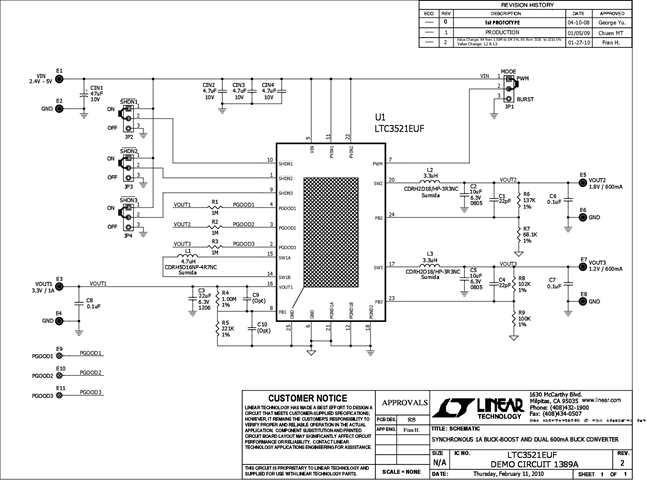

DC1389A - Schematic2010/04/30PDF77K
-
DC1389A - Demo Manual2010/04/30PDF193K
-
DC1389A - Design Files2010/04/30ZIP2M
