DC1279A
LT3517EUF | Boost LED Driver, 3V ≤ PVIN ≤ 40V, VLED up to 40V @ 330mA
トップへ
製品概要
製品概要

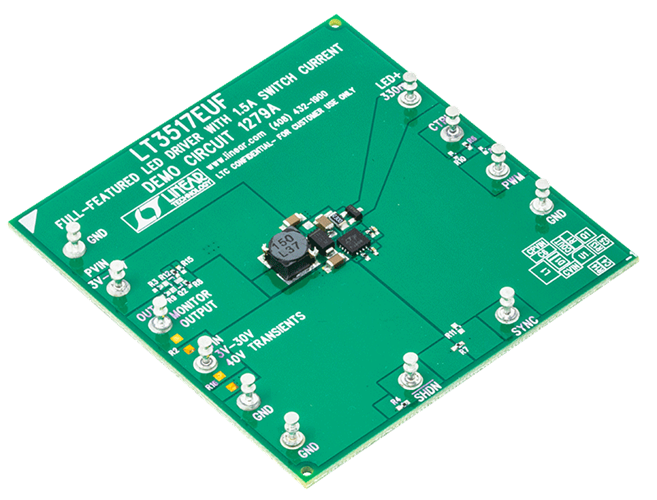

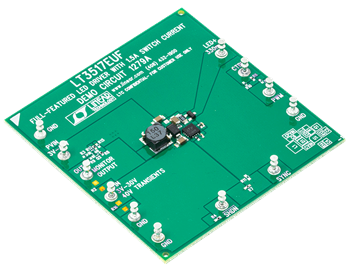

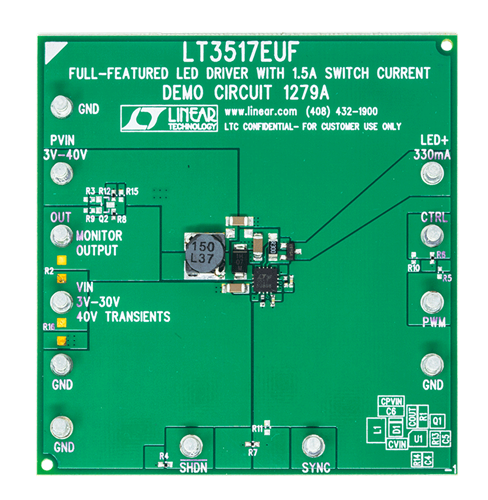

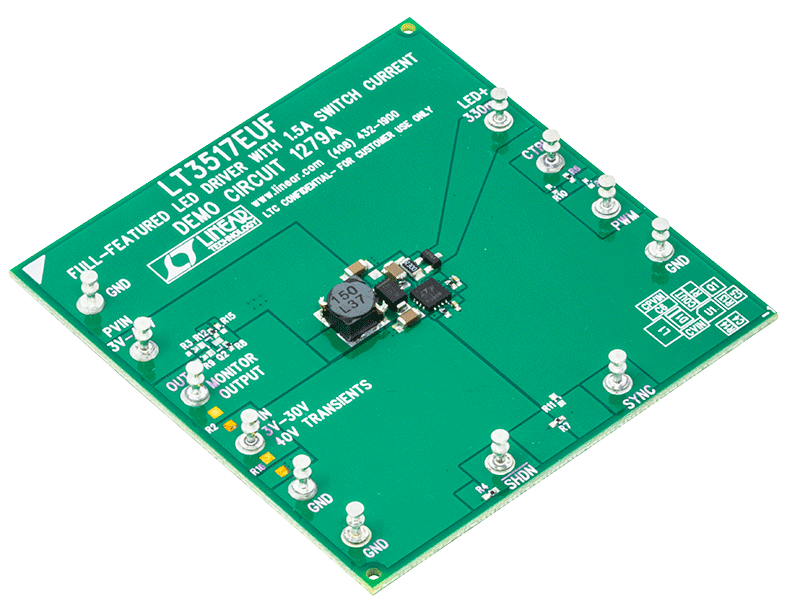

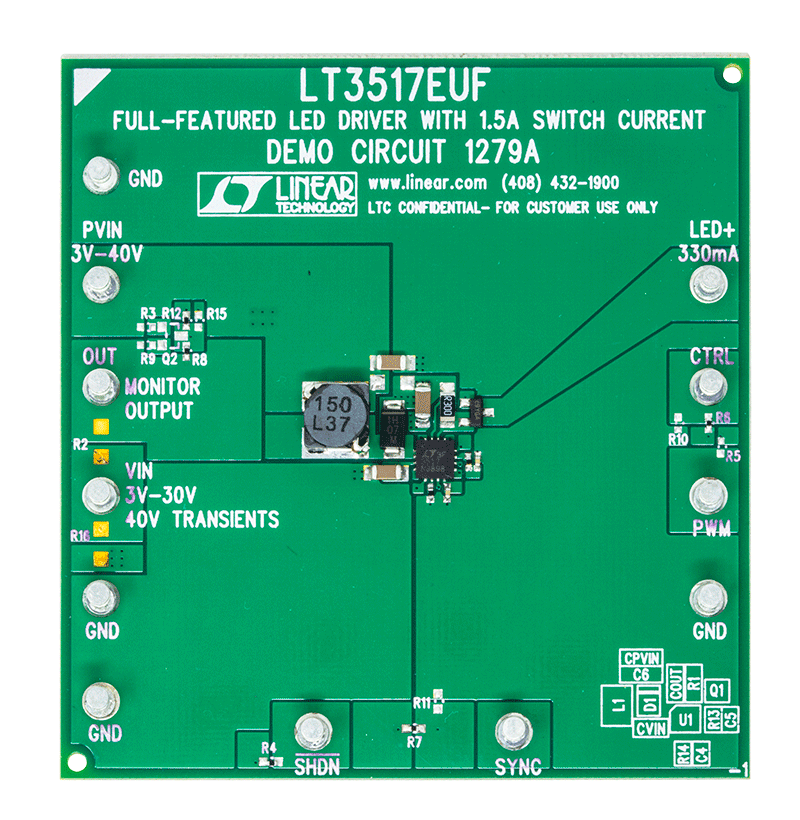

Demonstration Circuit 1279 is a full-featured, multitopology LED driver with 1.5A switch current featuring the LT3518. The board is optimized to drive a 330mA LED string with a total LED voltage between the input voltage and 40V in a boost topology. The input voltage range (VIN) is 3V to 30V, and the supply pin that powers the switcher (PVIN) has an input voltage range of 3V to 40V.
対象となる製品
関連資料
-

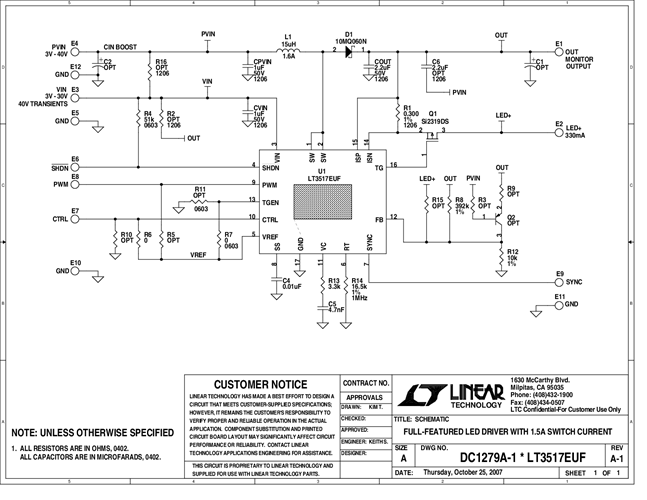

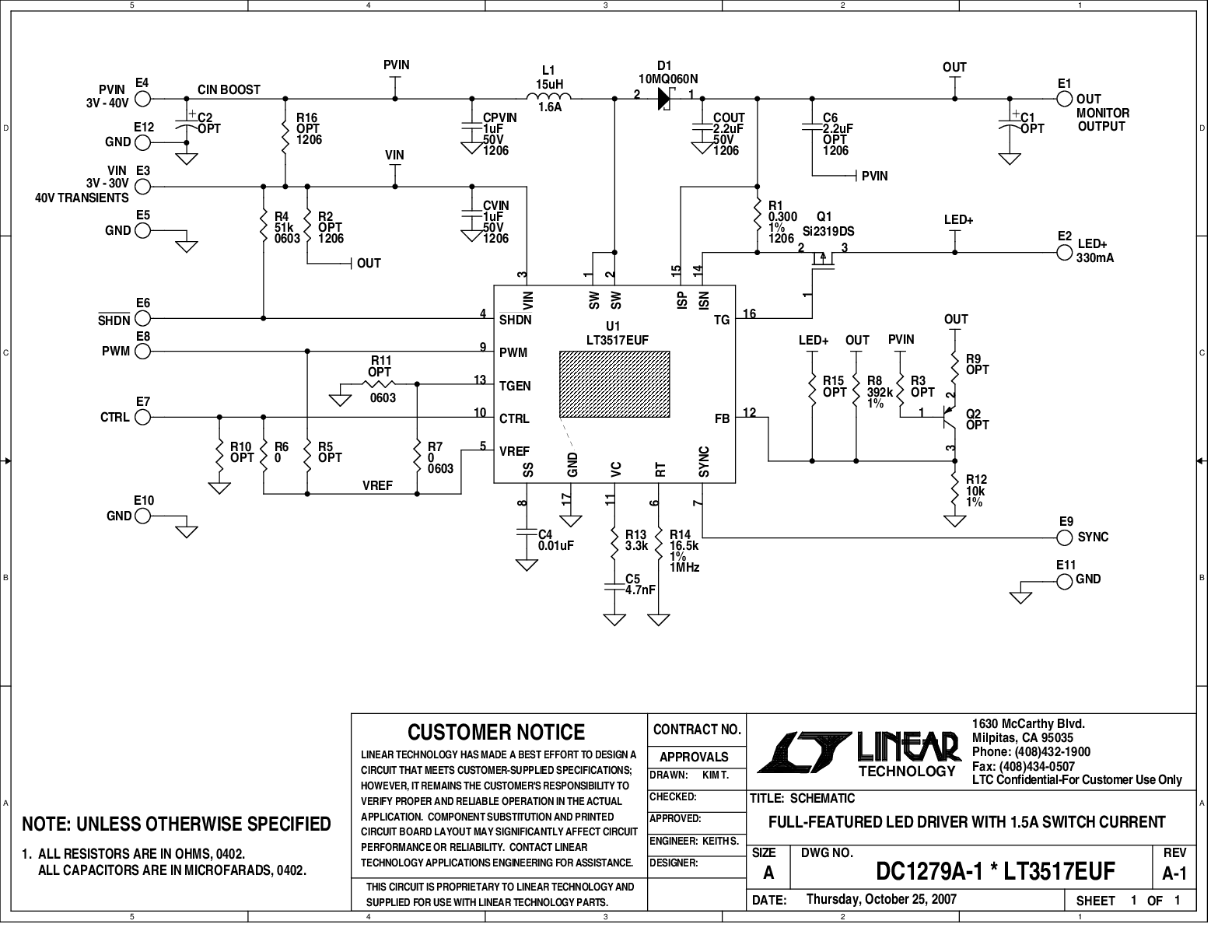

DC1279A - Schematic2009/09/24PDF30K
-
DC1279A - Demo Manual2009/09/24PDF758K
-
DC1279A - Design File2009/09/24ZIP718K
