DC1157A
LT3510EFE Demo Board | 4.5V ≤ VIN ≤ 24V, VOUT1 = 3.3V @ 2A, VOUT2 = 1.8V @ 2A
トップへ
製品概要
製品概要
Demo circuit 1157 is a dual monolithic step-down DC/DC converter featuring the LT3510. The demo circuit is designed for 3.3V and 1.8V outputs from a 4.5V to 24V input. The current capability of each channel is up to 2A. Both regulators features independent input voltage, feedback, soft-start and power good pins and the outputs can be configured to track each other.
対象となる製品
関連資料
-

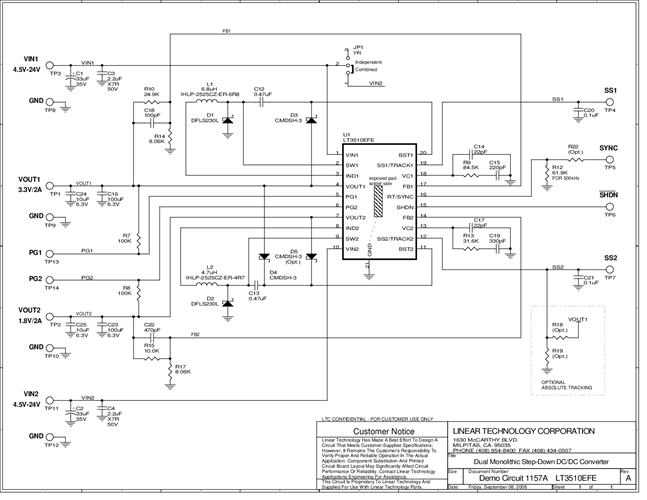

DC1157A - Schematic2009/09/24PDF27K
-
DC1157A - Demo Manual2009/09/24PDF436K
-
DC1157A - Design File2009/09/24ZIP1M
