DC1149A

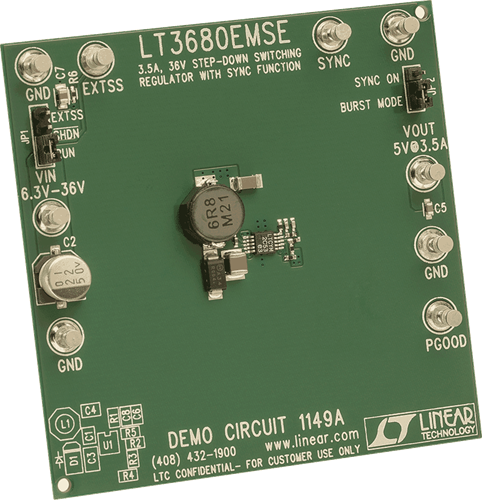

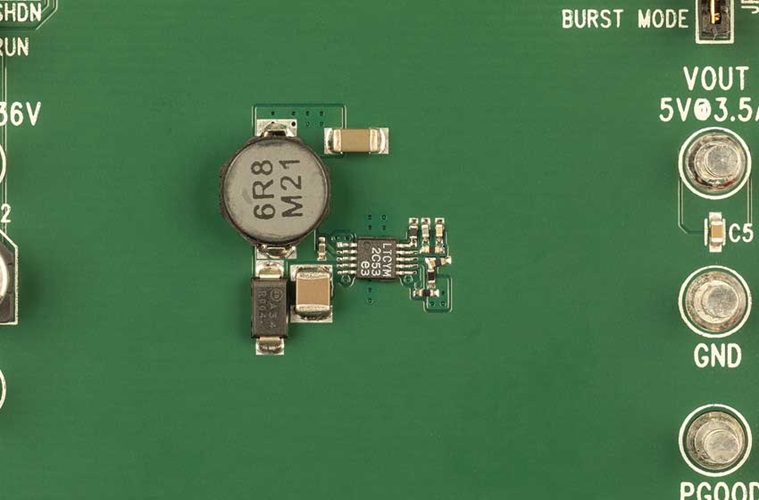

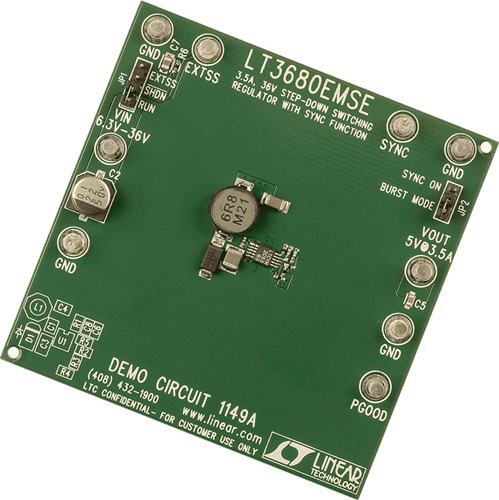

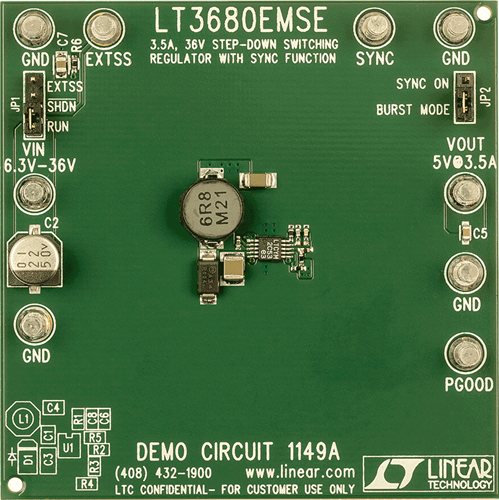

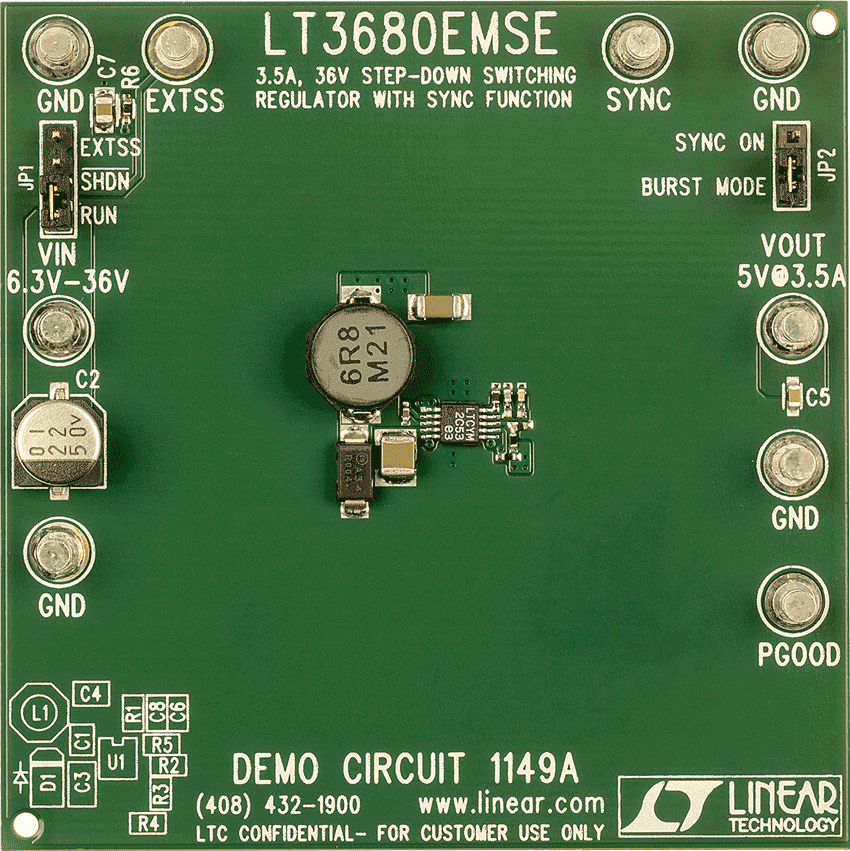

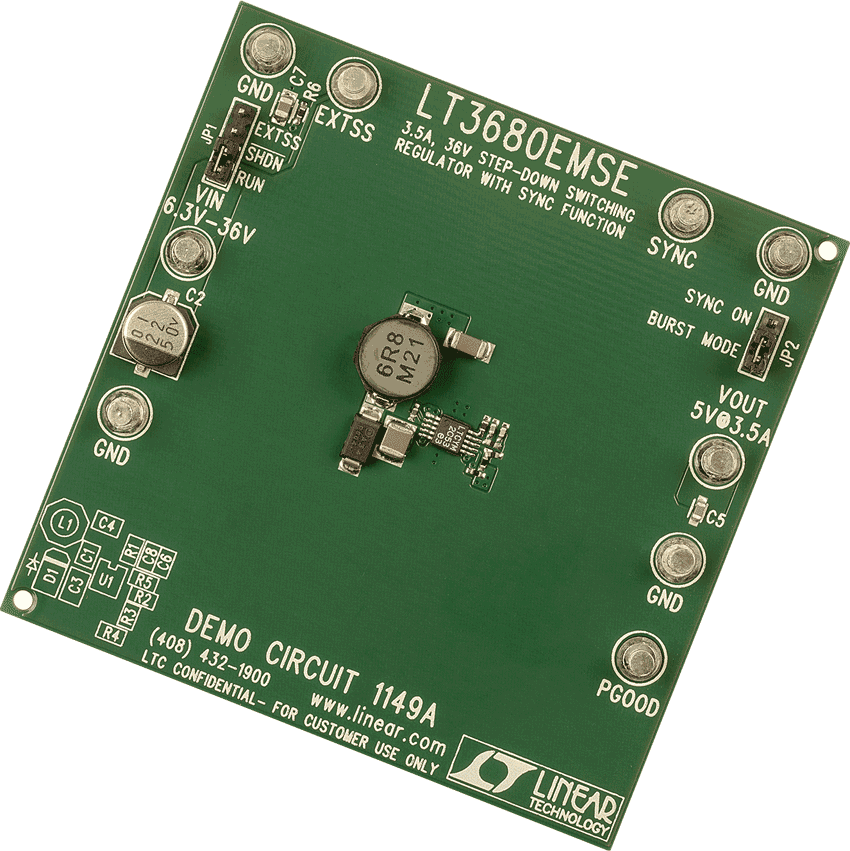

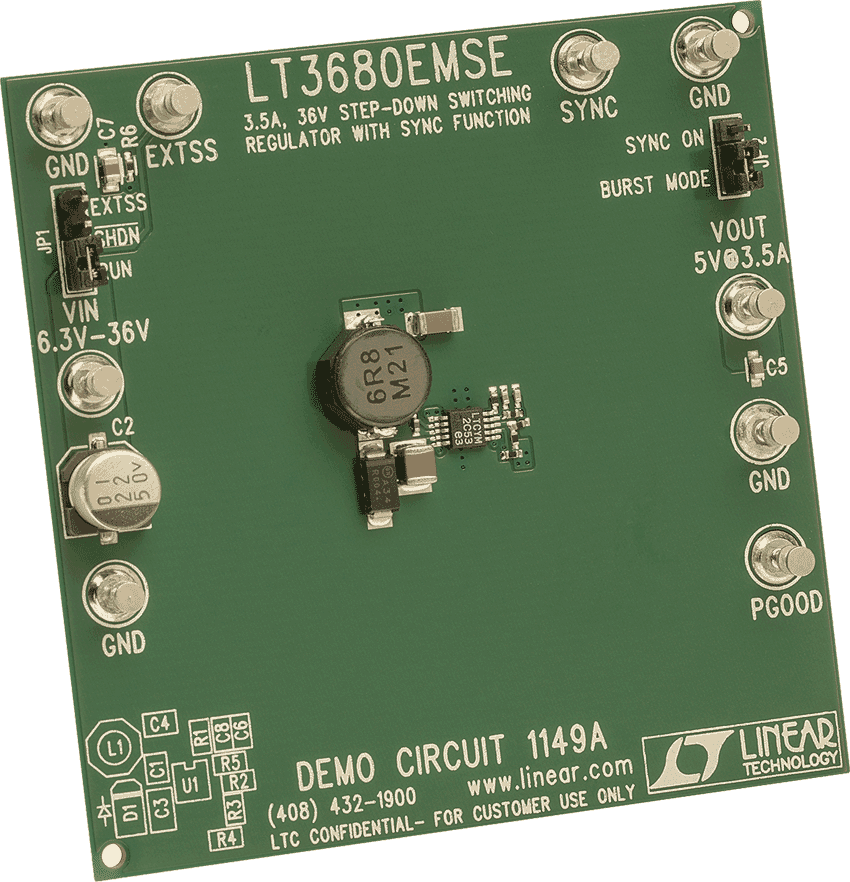

LT3680EMSE Demo Board | 6.3V ≤ VIN ≤ 36V, VOUT = 5V @ 3.5A
トップへ
製品概要
製品概要

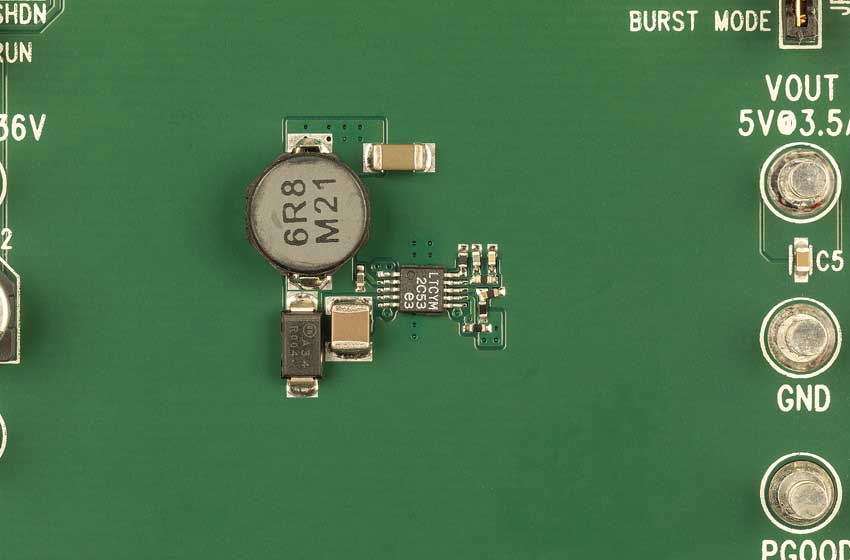

Demonstration circuit 1149 is a monolithic step-down DC/DC switching regulator featuring LT3680. The LT3680 can be synchronized over a 250 kHz to 2 MHz range. The demo board is designed for 5V/3.5A output from a 6.3V to 36V input.
対象となる製品
関連資料
-

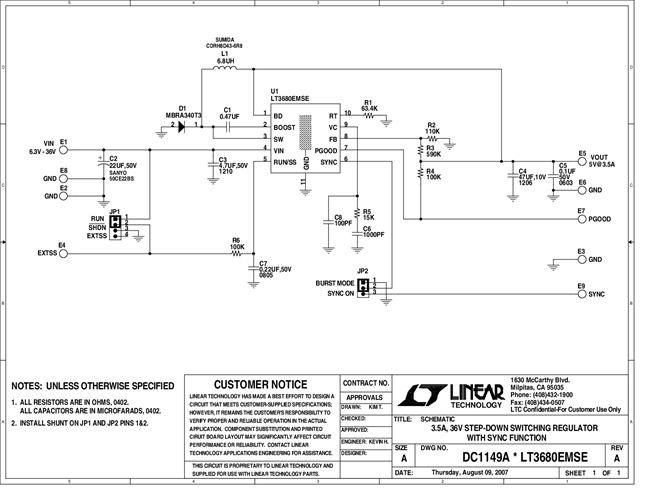

DC1149A - Schematic2009/10/06PDF29K
-
DC1149A - Demo Manual2009/10/06PDF669K
-
DC1149A - Design Files2009/10/06ZIP682K
