製品概要
機能と利点
- 2.7V to 15.0V Wide Operating Voltage Range
- Monitor Up to Eight Voltages
- Sequence Up to Eight Voltages
- Included LED Indicators for System Events
- Included Onboard LDOs for Sequencing/Monitoring
- Daisy-Chaining for Multiple Boards
- Proven 6-Layer, 1oz Copper PCB Layout
- Fully Assembled and Tested
製品概要

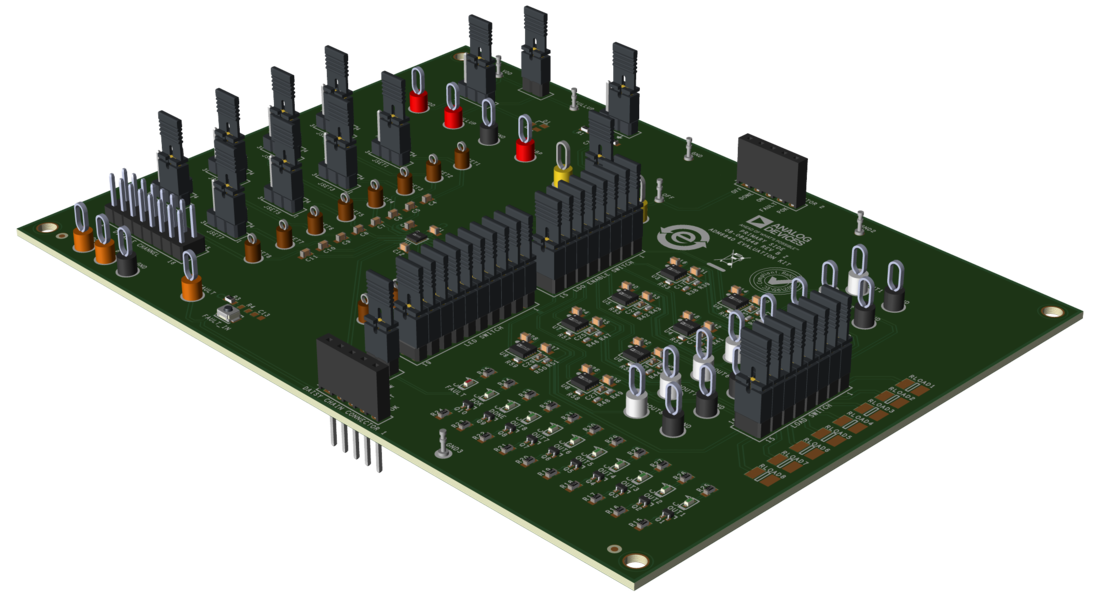

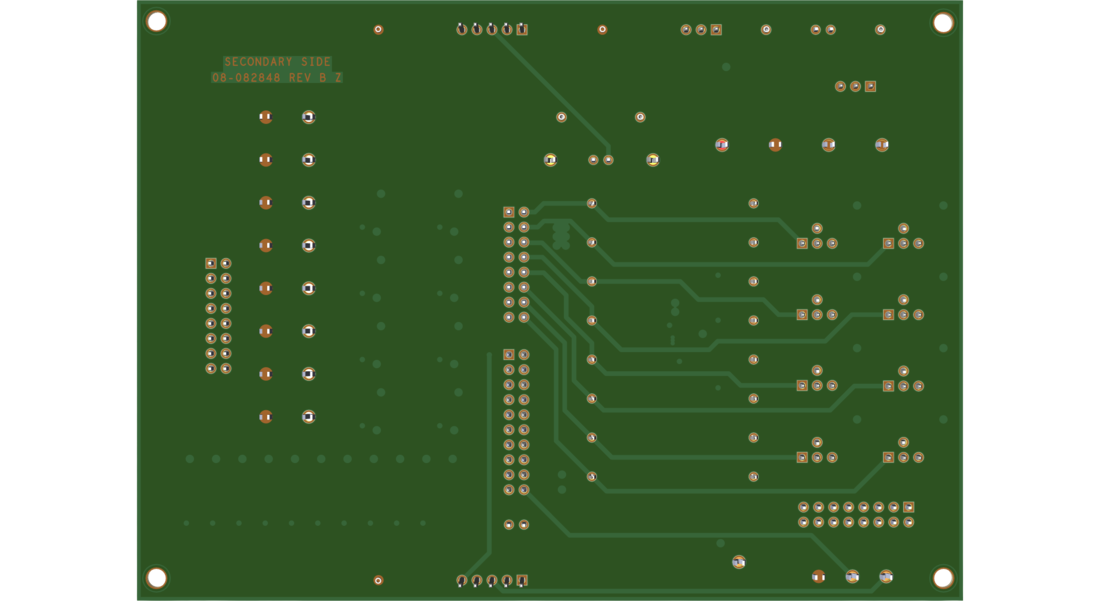

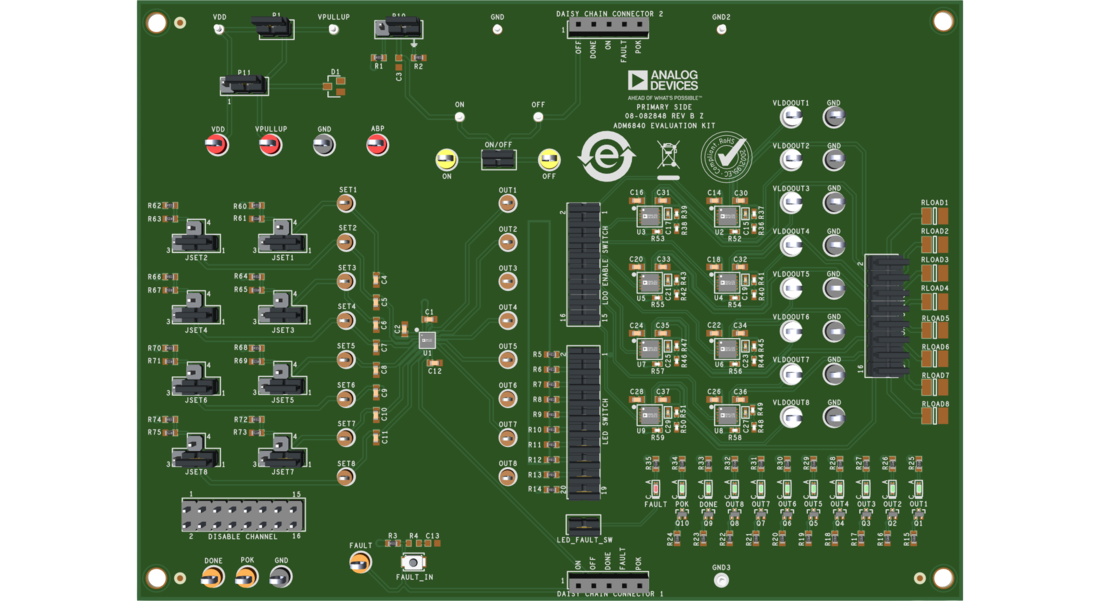

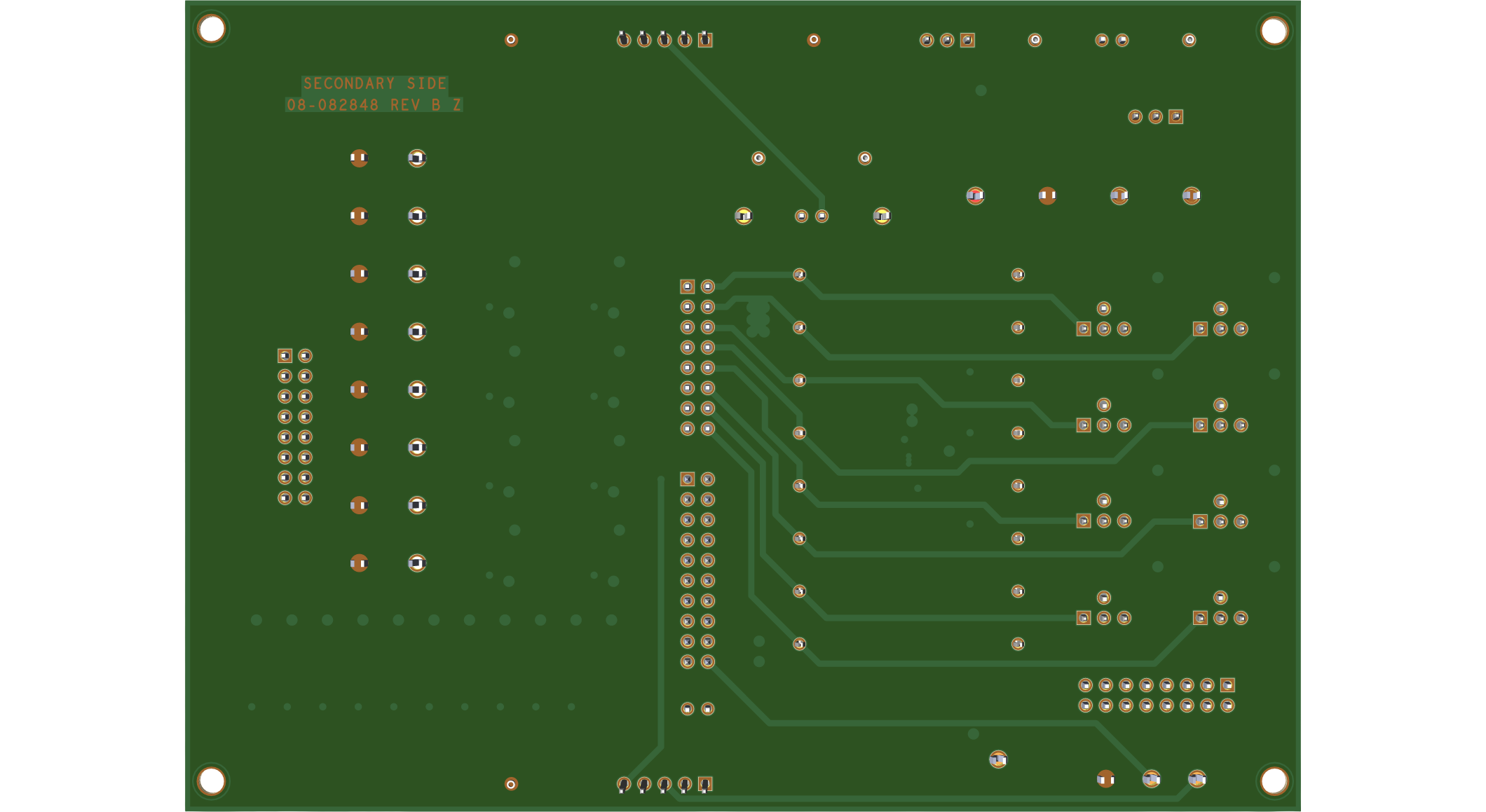

The ADM6840 evaluation kit (EV kit) monitors and sequences up to eight voltages. This ADM6840 provides an adjustable delay as each supply is turned on as well as monitor each power supply voltage.
The ADM6840 EV kit includes an installed ADM6840EAWABFH+T. This product is RoHS compliant.
対象となる製品
はじめに
Required Equipment
- ADM6840 EV kit
- 25V, 1A DC power supply
- Oscilloscope
- Digital multimeter
関連資料
-
ADM6840EVKIT: Evaluates ADM6840 (Rev. 0)2026/03/31PDF2 MB
-
ADM6840EVKIT Gerber Files2026/03/31ZIP733 KB
