Analog and Hybrid Beamforming
Multi-Channel Beamforming Integrated Circuits (BFICs) are the key enabler of single-beam phased array radar and multi-beam hybrid systems. With a growing portfolio of up/downconverters, GaN power amplifiers and T/R modules, clocking, and power management solutions, ADI offers a complete RF signal chain portfolio.
Value and Benefits
- Complete RF Chain: BFICs enable single-beam and multi-beam phased arrays with up/downconverters, GaN PAs, T/R modules, clocking, and power management.
- Flexible Beamforming: Supports analog and hybrid architectures for advanced array designs.
- Reduced SWaP: Lower SWaP with minimized cooling needs.

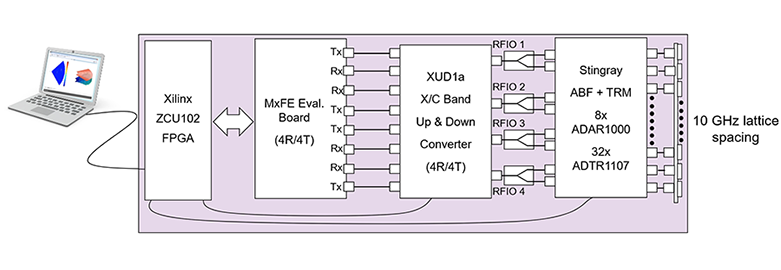

Over-the-Air Pattern Measurements for a 32-Element Hybrid Beamforming Phased Array
This paper summarizes measured receive antenna performance for a commercially available 32-element phased array demonstrator.

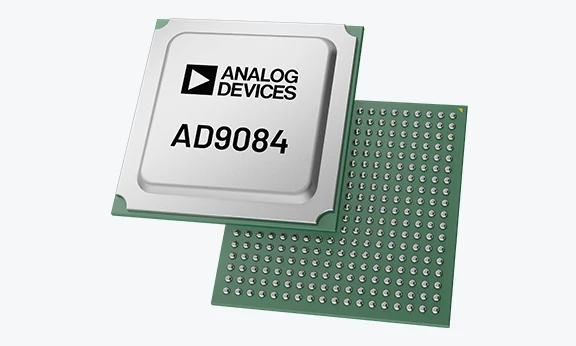

Introducing Apollo MxFE ™: 20 GSPS software-defined radio for radar/EW/COMS/ISR applications.
This monolithic 16 nm CMOS device utilizes state-of-the-art high dynamic range ADC and DAC cores with the best spurious, free dynamic range, and noise spectral density available on the market today.
Meet Our Industry-Leading Beamformers

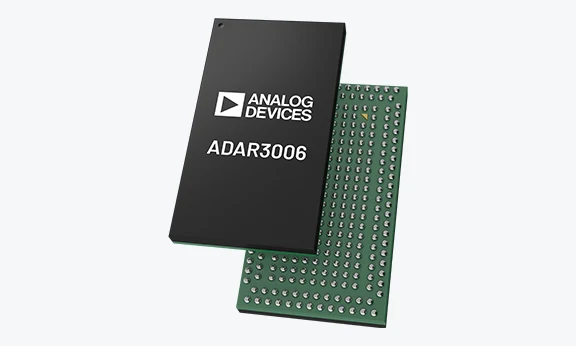

ADI expands true time delay unit portfolio with the ADAR3006. Discover ADI’s newest 10.7 GHz to 12.75 GHz 4-beam/4-element Ku band beamformer.
Evaluation Boards
