MAXREFDES1194

The MAXREFDES1194 is a no-opto flyback DC-DC power supply that delivers five outputs from a 6V to 60V supply voltage. It is designed for equipment that needs multichannel, isolated power supplies with a wide input voltage range.

The MAXREFDES1194 employs the no-opto flyback control technique of the MAX17690. This document explains how the MAX17690 peak current-mode PWM converter can be used to generate five isolated outputs from a 6V to 60V input voltage. An overview of the design specification is shown in Table 1.

Due to its simplicity and low cost, the flyback converter is the preferred choice for low-to-medium isolated DC-DC power-conversion applications. However, the use of an optocoupler or an auxiliary winding on the flyback transformer for voltage feedback across the isolation barrier increases the number of components and design complexity. The MAX17690 eliminates the need for an optocoupler or auxiliary transformer winding and achieves ±5% output voltage regulation over line, load, and temperature variations.

The MAX17690 implements an innovative algorithm to accurately determine the output voltage by sensing the reflected voltage across the primary winding during the flyback time interval. By sampling and regulating this reflected voltage when the secondary current is close to zero, the effects of secondary-side DC losses in the transformer winding, the PCB tracks, and the rectifying diode on output voltage regulation can be minimized. The MAX17690 also compensates for the negative temperature coefficient of the rectifying diode.

Other features include the following:

• 4.5V to 60V Input Voltage Range
• Programmable Switching Frequency from 50kHz to 250kHz
• Programmable Input Enable/UVLO Feature
• Programmable Input Overvoltage Protection
• Adjustable Soft-Start
• 2A/4A Peak Source/Sink Gate Drive Capability
• Hiccup Mode Short-Circuit Protection
• Fast Cycle-by-Cycle Peak Current Limit
• Thermal Shutdown Protection
• Space-Saving, 16-Pin, 3mm x 3mm TQFN Package
• -40°C to +125°C Operating Temperature Range

An isolated no-opto flyback DC-DC converter using the MAX17690 is demonstrated for a five-output application. Table 1 shows an overview of the design specification.

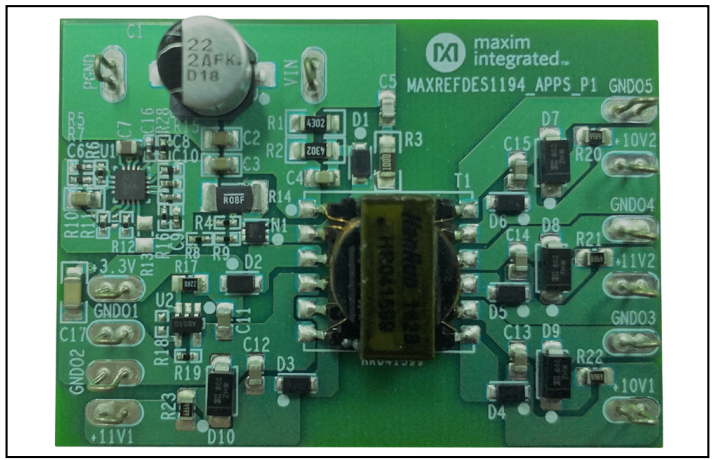

This document describes the hardware shown in Figure 1. It provides a detailed systematic technical guide to designing an isolated no-opto flyback DC-DC converter using the MAX17690 controller. The power supply has been built and tested.

One of the drawbacks encountered in most isolated DC-DC converter topologies is that information relating to the output voltage on the isolated secondary side of the transformer must be communicated back to the primary side to maintain output voltage regulation. In a regular isolated flyback converter, this is normally achieved using an optocoupler feedback circuit or an additional auxiliary winding on the flyback transformer. Optocoupler feedback circuits reduce overall power-supply efficiency, and the extra components increase the cost and physical size of the power supply. In addition, optocoupler feedback circuits are difficult to design reliably due to their limited bandwidth, nonlinearity, high current transfer ratio (CTR) variation, and aging effects. Feedback circuits employing auxiliary transformer windings also exhibit deficiencies. Using an extra winding adds to the flyback transformer’s complexity, physical size, and cost, while load regulation and dynamic response are often poor.

The MAX17690 is a peak current-mode controller designed specifically to eliminate the need for optocoupler or auxiliary transformer winding feedback in the traditional isolated flyback topology, thereby reducing size, cost, and design complexity. It derives information about the isolated output voltage by examining the voltage on the primary-side winding of the flyback transformer.

Other than this uniquely innovative method for regulating the output voltage, the no-opto isolated flyback converter using the MAX17690 follows the same general design process as a traditional flyback converter. To understand the operation and benefits of the no-opto flyback converter, it is useful to review the schematic and typical waveforms of the traditional flyback converter (using the MAX17595) shown in Figure 2.

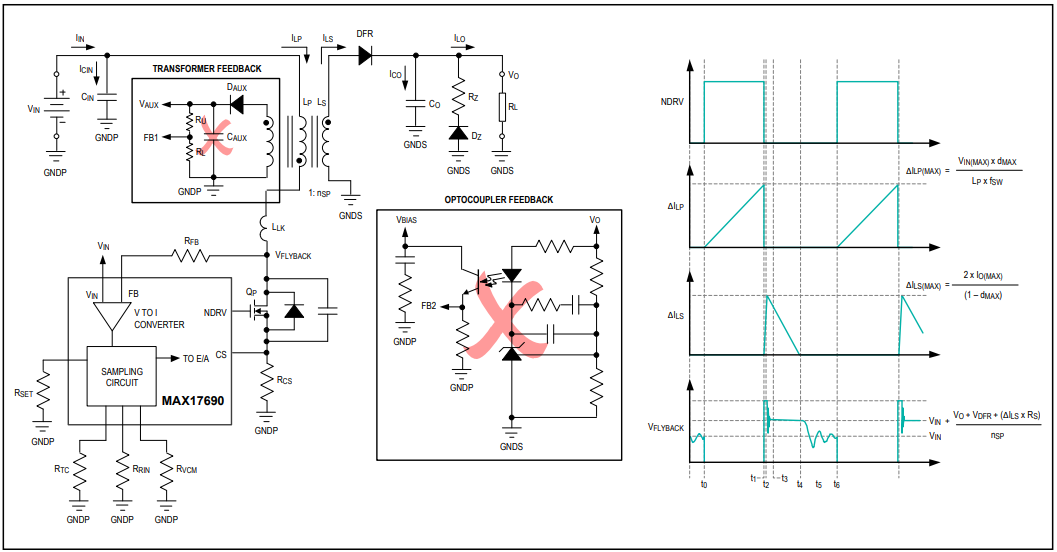

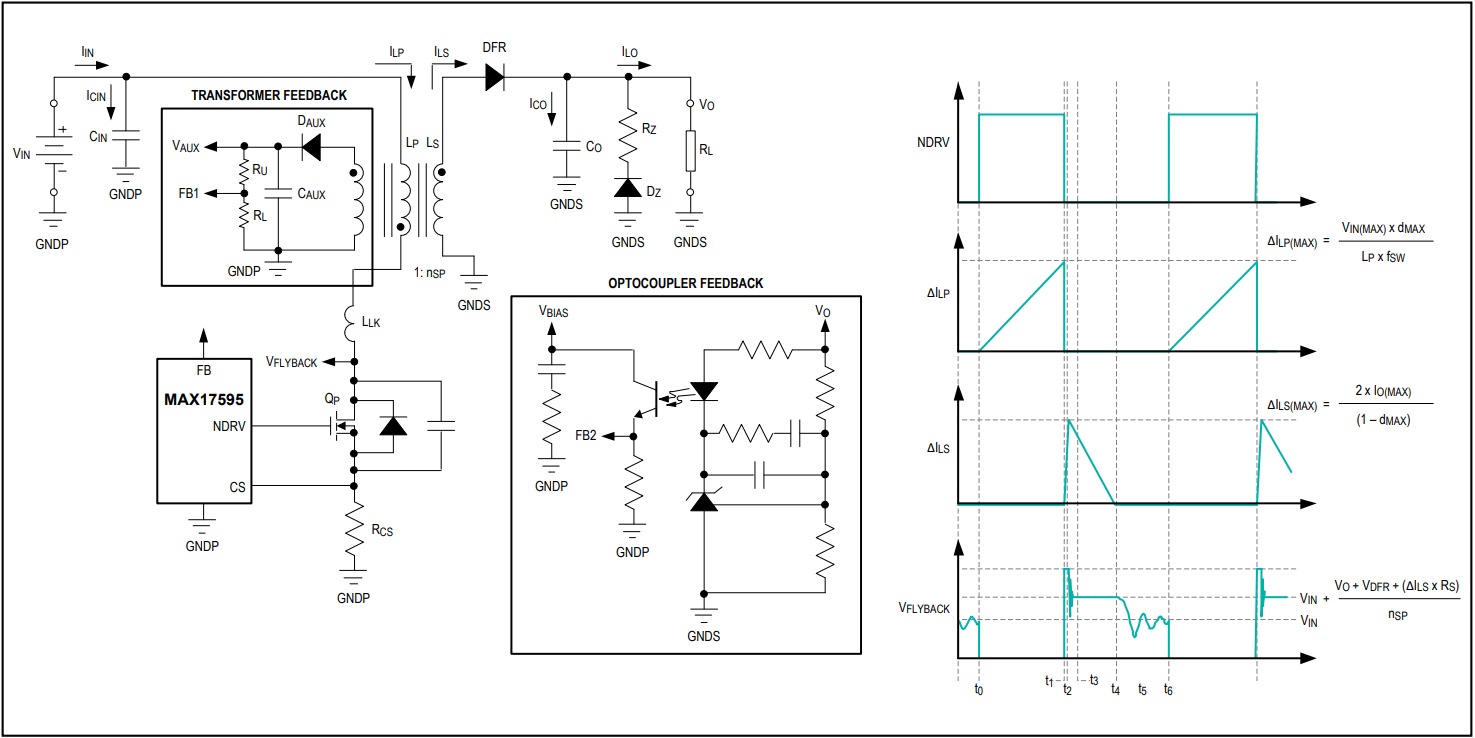

The simplified schematic in Figure 2 illustrates how information about the output voltage is obtained across the isolation barrier in traditional isolated flyback converters. The optocoupler feedback mechanism requires at least 10 components, including an optocoupler and a shunt regulator, in addition to a primary-side bias voltage (V_BIAS) to drive the phototransistor. The error voltage FB2 connects to the FB pin of the flyback controller.

The transformer feedback method requires an additional winding on the primary side of the flyback transformer, a diode, a capacitor, and two resistors to generate a voltage proportional to the output voltage. This voltage is compared to an internal reference in a traditional flyback controller to generate the error voltage.

By including additional innovative features internally in the MAX17690 no-opto flyback controller, Analog Devices has enabled power-supply designers to eliminate the additional components, board area, complexity, and cost associated with both the optocoupler and transformer feedback methods. Figure 3 illustrates a simplified schematic and typical waveforms for an isolated no-opto flyback DC-DC converter using the MAX17690.

By comparing Figure 3 with Figure 2, it is evident that there is no difference in the voltage and current waveforms in the traditional and no-opto flyback topologies. The difference is in the control method used to maintain V_O at its target value over the required load, line, and temperature range. The MAX17690 achieves this with minimum components by forcing the voltage V_FLYBACK during the conduction period of DFR to be precisely the voltage required to maintain a constant V_O. When Q_P turns off, DFR conducts and the drain voltage of Q_P rises to a voltage V_FLYBACK above V_IN. After initial ringing due to transformer leakage inductance, and the junction capacitance of DFR and output capacitance of Q_P, the voltage V_FLYBACK is given by:

where:

V_FLYBACK is the Q_P drain voltage relative to primary ground.

V_DFR(T) is the forward voltage drop of DFR, which has a negative temperature coefficient.

I_LS(t) is the instantaneous secondary transformer current.

R_S(T) is the total DC resistance of the secondary circuit, which has a positive temperature coefficient.

n_SP is the secondary to primary turns ratio of the flyback transformer.

The voltage of interest is (V_FLYBACK - V_IN), since this is a measure of V_O. An internal voltage to current amplifier generates a current proportional to (V_FLYBACK - V_IN). This current then flows through R_SET to generate a ground referenced voltage (V_SET) proportional to (V_FLYBACK - V_IN). This requires that:

Combining this equation with the previous equation for V_FLYBACK, we have:

We need to consider the effect of the temperature dependence of V_DFR and the time dependence of I_LS on the control system. If V_FLYBACK is sampled at a time when I_LS is very close to zero, then the term I_LS(t) x R_S(T) is negligible and can be assumed to be zero in the previous expression. This is the case when the flyback converter is operating in, or close to, discontinuous conduction mode. It is very important to sample the V_FLYBACK voltage before the secondary current reaches zero, since there is a very large oscillation on V_FLYBACK due to the resonance between the primary magnetizing inductance of the flyback transformer and the output capacitance of Q_P as soon as the current reaches zero in the secondary, as shown in Figure 2 and Figure 3. The time at which V_FLYBACK is sampled is set by resistor R_VCM.

The V_DFR term has a significant negative temperature coefficient that must be compensated to ensure acceptable output voltage regulation over the required temperature range. This is achieved by internally connecting a positive temperature coefficient current source to the V_SET pin. The current is set by resistor R_TC connected to ground. The simplest way to understand the temperature compensation mechanism is to think about what needs to happen in the control system when temperature increases. In an uncompensated system, as the temperature increases, V_DFR decreases due to its negative temperature coefficient. Since V_DFR decreases, V_O increases by the same amount, therefore V_FLYBACK remains unchanged. Since V_SET is proportional to V_FLYBACK, V_SET also remains unchanged. Since there is no change in V_SET, there is no change in duty cycle demand to bring V_O back down to its target value.

What needs to happen in the temperature compensated case is, when V_O increases due to the negative temperature coefficient of V_DFR, V_SET needs to increase by an amount just sufficient to bring V_O back to its target value. This is achieved by designing V_SET with a positive temperature coefficient. This is expressed mathematically as:

where:

δV_DFR/δT is the diode’s forward temperature coefficient

δV_TC/δT = 1.85mV/°C

V_TC = 0.55V is the voltage at the TC pin at +25°C.

Rearranging the above expression gives:

The effect of adding the positive temperature coefficient current (TC) to the current in R_FB is equivalent to adding a positive temperature coefficient voltage in series with V_DFR on the secondary side of value:

Substituting from the previous expression, this becomes:

We can now substitute this expression into the expression for V_O as follows:

and finally solve for R_FB:

Values for R_SET, V_SET, and δV_TC/δT can be obtained from the MAX17690 data sheet as follows:

R_SET = 10kΩ

V_SET = 1V

δV_TC/δT = 1.85mV/°C

Values for V_DFR and δV_DFR/δT can be obtained from the output diode data sheet, and n_SP is calculated when the flyback transformer is designed.

The value of R_TC can then be calculated using the expression from earlier, restated below:

The calculated resistor values for R_FB and RT_C should always be verified experimentally and adjusted, if necessary, to achieve optimum performance over the required temperature range. Note that the reference design described in this document has only been verified at room temperature.

Finally, the internal temperature compensation circuitry requires a current proportional to V_IN. R_RIN should be chosen as approximately:

R_RIN = 0.6 x R_FB

Setting the V_FLYBACK Sampling Instant

The MAX17690 generates an internal voltage proportional to the on-time, volt-second product. This enables the device to determine the correct sampling instant for V_FLYBACK during the Q_P off-time. The R_VCM resistor is used to scale this internal voltage to an acceptable internal voltage limit in the device. Selection of this resistor is described in detail in the MAX17690 data sheet.

Design Procedure for the No-Opto Flyback Converter MAX17690

Now that the principle difference between a traditional isolated flyback converter using optocoupler or auxiliary transformer winding feedback and the isolated no-opto flyback converter using the MAX17690 is understood, a practical design example can be illustrated. The converter design process can be divided into three parts: the power stage design, the setup of the MAX17690 no-opto flyback controller, and closing the control loop. This document is intended to complement the information contained in the MAX17690 data sheet.

The following design parameters are used throughout this document:

These symbols are sometimes followed by parentheses to indicate whether minimum or maximum values of the parameters are intended, for example, the symbol V_IN(MIN) is the minimum input voltage. In addition, throughout the design procedure, reference is made to the schematic.

Step 1: Choose a Maximum Duty Cycle

The maximum duty cycle (d_MAX) occurs at maximum output power (P_O(MAX)) and minimum input voltage (V_IN(MIN)) The MAX17690 no-opto flyback controller uses peak current-mode control. Switching power converters using peak current-mode control exhibit subharmonic oscillations at duty cycles greater than 50% unless slope compensation is added to the sensed primary MOSFET current. Slope compensation is added internally in the MAX17690 to allow stable operation up to duty cycles of 66%, as specified in the data sheet. Choosing the maximum allowable duty cycle ensures the highest energy density for the power converter. For the current design, we have chosen:

d_MAX = 0.65

Step 2: Calculate the Minimum Duty Cycle

The MAX17690 derives the current (ΔI_LP) in the primary magnetizing inductance by measuring the voltage (ΔV_RCS) across the current-sense resistor (R_CS) during the on-time of the MOSFET. So:

ΔI_LP is a maximum at d_MAX and V_IN(MIN) and is a minimum at d_MIN and V_IN(MAX) so:

and

Solving the two equations above, we have:

where ΔV_RCS(MIN) and ΔV_RCS(MAX) correspond to the minimum current-limit threshold (20mV) and the maximum current-limit threshold (100mV) of the MAX17690, respectively. So, for V_IN(MIN) = 6V, V_IN(MAX) = 60V, and d_MAX = 0.65, we have:

d_MIN ≈ 0.04

Step 3: Calculate the Maximum Allowable Switching Frequency

The isolated no-opto flyback topology requires the primary side MOSFET to constantly maintain switching, otherwise there is no way to sense the reflected secondary-side voltage at the drain of the primary-side MOSFET. The MAX17690 achieves this by having a critical minimum on-time (t_ON(CRIT)) for which it drives the MOSFET. At a given switching frequency, t_ON(MIN) corresponds to d_MIN. From the data sheet, t_ON(CRIT) for the MOSFET drive output NDRV is 235ns. We can therefore calculate the maximum switching frequency (f_SW(MAX)) as follows:

Since d_MIN is fixed by ΔV_RCS(MIN), ΔV_RCS(MAX), d_MAX, V_IN(MIN), and V_IN(MAX), we can choose a t_ON(MIN), which is arbitrarily larger than t_ON(CRIT) to allow a reasonable design margin. So, if we choose t_ON(MIN) = 400ns, we obtain a new switching frequency as follows:

Note that the MAX17690 should always be operated in the switching frequency range from 50kHz to 250kHz and t_ON(MIN) must be chosen accordingly to ensure that this constraint is met.

Step 4: Calculate Primary Magnetizing Inductance

Maximum input power (P_IN(MAX)) is given by:

For the discontinuous flyback converter, all of the energy stored in the primary magnetizing inductance (L_P) during the MOSFET on-time is transferred to the output during the MOSFET off-time (i.e., the full power transfer occurs during one switching cycle). Therefore, because E = P x t, we have:

The maximum input energy must be stored in L_P during the on-time of the MOSFET, so:

We also know that the peak current in L_P (ΔI_LP(MAX)) occurs at input voltage V_IN(MIN) and MOSFET on-time t_ON(MAX). So:

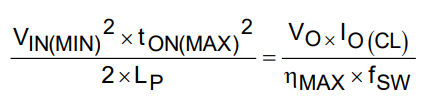

Rearranging this equation and squaring, we have:

and substituting:

we now have:

Finally, by rearranging, we have an expression for L_P:

If we estimate the power converter efficiency η_MAX = 0.65, then with V_IN(MIN) = 6V, d_MAX = 0.65, V_O1 = 3.3V, I_O1(CL) = 60mA, V_O2 = 11V, I_O2(CL) = 60mA, V_O3 = 10V, I_O3(CL) = 1mA, V_O4 = 11V, I_O4(CL) = 40mA, V_O5 = 10V, I_O5(CL) = 1mA, and f_SW = 100kHz, we have:

L_P(MAX) ≈ 49µH

This primary inductance represents the maximum primary inductance since it sets the current-limit threshold. Choosing a larger inductance will set the current-limit threshold at a lower value which would be undesirable. Assuming a ±10% tolerance for the primary inductance gives:

L_P ≈ 40μH±10%

Step 5: Calculate the Secondary to Primary Turns Ratio for the Flyback Transformer

Assume we are operating at the border between discontinuous and continuous conduction modes at V_IN(MIN) and P_O(MAX). Under this condition, the primary-side MOSFET is conducting for (d_MAX x τ_SW) and the secondary-side synchronous rectifier (or diode) is conducting for (1 - d_MAX) x τ_SW. Ideally, the primary volt-seconds per turn must balance with the secondary volt-seconds per turn. However, in practice, the primary to secondary coupling of the transformer is not perfect (giving rise to uncoupled leakage inductance) and both windings have series resistance. Effectively, this means that to obtain the required volt-seconds per turn on the secondary winding we need more volt-seconds per turn on the primary winding. We introduce a transformer efficiency factor (η_T) so that:

and

Assuming η_T = 0.9 and V_F = 0.5V (for a synchronous rectifier), then with V_O1 = 3.3V, V_O2 = 11V, V_O3 = 10V, V_O4 = 11V, V_O5 = 10V, d_MAX = 0.65, and V_IN(MIN) = 6V, we have:

n_S1P ≈ 0.31

n_S2P ≈ 0.93

n_S3P ≈ 0.85

n_S4P ≈ 0.93

n_S5P ≈ 0.85

Typical values of η_T range from 0.65 for an inefficient transformer design to 0.95 for a very efficient transformer design.

Step 6: Calculate Peak and RMS Currents in the Primary Winding of the Flyback Transformer

The peak primary winding current occurs at V_IN(MIN) and d_MAX according to the following equation:

The RMS primary winding current can be calculated from ΔI_LP(MAX) and d_MAX as follows:

Step 7: Calculate Peak and RMS Currents in the Secondary Winding of the Flyback Transformer

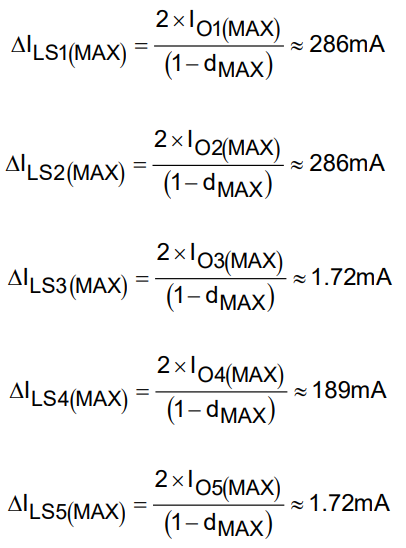

Again, assuming we are operating at the border between discontinuous and continuous conduction modes at V_IN(MIN) and P_O(MAX), the peak secondary winding current is related to I_O(MAX) and d_MAX as follows:

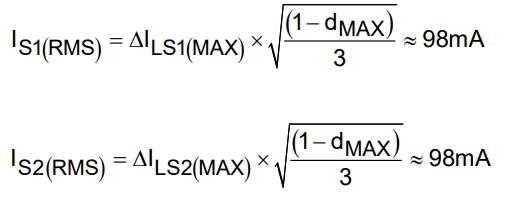

The RMS secondary winding current can be calculated from ΔI_LS(MAX) and d_MAX as follows:

Step 8: Calculate Design Parameters for a Secondary Diode

In a flyback converter, because the secondary diode is reverse biased when the primary MOSFET is conducting, the voltage stress on the diode is the sum of the output voltage and the reflected primary voltage. Choosing the diode with enough margin for the reverse blocking voltage, as indicated in the following equation, should preclude the use of a snubber.

V_SEC,DIODE1 = 1.5 x (n_S1P x V_IN(MAX) + V_O1) ≈ 33V

V_SEC,DIODE2 = 1.5 x (n_S2P x V_IN(MAX) + V_O2) ≈ 100V

V_SEC,DIODE3 = 1.5 x (n_S3P x V_IN(MAX) + V_O3) ≈ 92V

V_SEC,DIODE4 = 1.5 x (n_S4P x V_IN(MAX) + V_O4) ≈ 100V

V_SEC,DIODE5 = 1.5 x (n_S5P x V_IN(MAX) + V_O5) ≈ 92V

Select a diode with low forward-voltage drop to minimize the power loss (given as the product of forward-voltage drop and the average output current) in the diode. Select fast-recovery diodes with a recovery time of less than 50ns or Schottky diodes with low junction capacitance for this purpose.

Step 9: Calculate Design Parameters for Primary-Side MOSFET

The important parameters to consider for the primary-side MOSFET (Q_P) are peak instantaneous current, RMS current, voltage stress, and power losses. Because Q_P and L_P are in series, they experience the same peak and RMS currents, so from Step 6:

I_QP(MAX) = I_LP(MAX) ≈ 0.975A

and

I_QP(RMS) = I_LP(RMS) ≈ 0.454A

When Q_P turns off, V_O is reflected to the primary side of the flyback transformer plus V_IN(MAX) is applied across the drain-source of Q_P. In addition, until Q_S starts to conduct, there is no path for the leakage inductance energy to flow through. This causes the drain-source voltage of Q_P to rise even further. The factor of 1.5 in the following equation represents this additional voltage rise; however, this factor can be higher or lower depending on the transformer and PCB leakage inductances:

Allowing for a reasonable design margin, the ON Semiconductor FDMA86251 was chosen for this design with the following specifications:

The power losses in Q_P can be approximated as follows:

P_TOT = P_CON + P_CDS + P_SW ≈ 60mW

where:

P_CON is the loss due to I_QP(RMS) flowing through the drainsource on-resistance of Q_P:

P_CON = I_QP(RMS)2 x R_DS(ON) ≈ 49mW

P_CDS is the loss due to the energy in the drain-source output capacitance being dissipated in Q_P at turn-on:

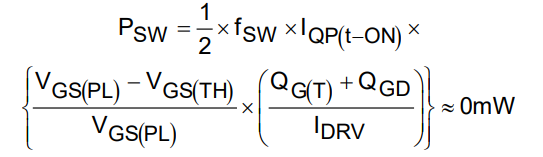

And P_SW is the turn-on voltage-current transition loss that occurs as the drain-source voltage decreases and the drain current increases during the turn-on transition:

where I_DRV is the maximum drive current capability of the NDRV output of the MAX17690 and I_QP(t-ON) is the instantaneous current in Q_P at turn-on. Since the flyback converter is operating in discontinuous conduction mode, I_QP(t-ON) is zero and therefore P_SW is also zero.

Step 10: Select the RCD Snubber Components

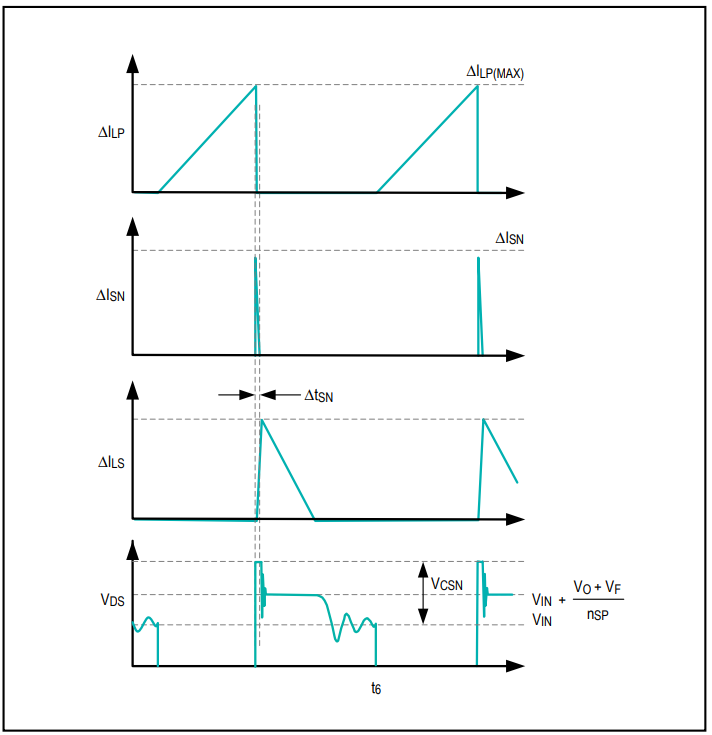

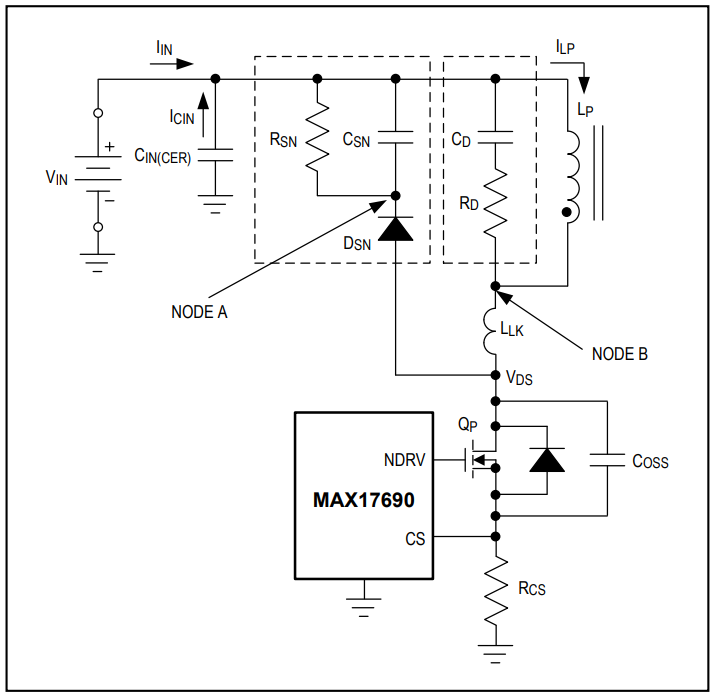

Referring to Figure 4, when Q_P turns off, I_LP charges the output capacitance (C_OSS) of Q_P. When the voltage across C_OSS exceeds the input voltage plus the reflected secondary to primary voltage, the secondary-side diode (or synchronous switch) turns on. Since the diode (or synchronous switch) is now on, the energy stored in the primary magnetizing inductance is transferred to the secondary. However, the energy stored in the leakage inductance will continue to charge C_OSS since there is nowhere else for it to go. Since the voltage across C_OSS is the same as the voltage across Q_P, if the energy stored in the leakage inductance charges C_OSS to a voltage level greater than the maximum allowable drain-source voltage of Q_P, the MOSFET fails.

One way to avoid this situation is to add a suitable RCD snubber across the primary winding of the transformer. In Figure 4, the snubber is labelled R_SN, C_SN, and D_SN.

In this situation, when Q_P turns off, the voltage at Node A is:

V_NODEA = V_CSN + V_IN

When the secondary-side diode (or synchronous switch) turns on, the voltage at Node B is:

So, the voltage across the leakage inductance is:

So:

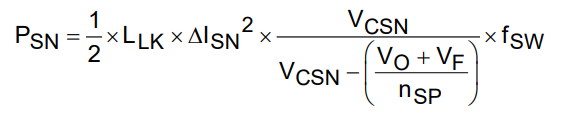

The average power dissipated in the snubber network is:

Substituting Δt_SN into this expression, we have:

The leakage inductance energy is dissipated in R_SN, so from:

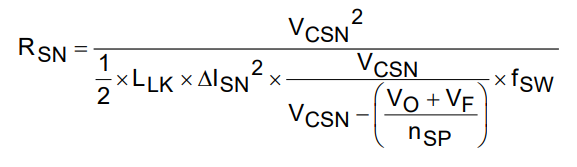

we can calculate the required R_SN as follows:

Over one switching cycle we must have:

So, we can calculate the required C_SN as follows:

Generally, ΔV_CSN should be kept to approximately 10% to 30% of V_CSN. Figure 5 illustrates V_CSN, ΔI_SN, and Δt_SN. The voltage across the snubber capacitor (V_CSN) should be selected so that:

V_CSN < Q_P(_DSMAX) – V_IN(MAX)

Choosing too large a value for V_CSN causes the voltage on the drain of Q_P to get too close its maximum allowable drain-source voltage, while choosing too small a value results in higher power losses in the snubber resistor. A reasonable value should result in a maximum drain voltage on Q_P that is approximately 75% of its maximum allowable value. The worst-case condition for the snubber circuit occurs at maximum output power when:

ΔI_SN = I_LP(MAX)

Assuming the leakage inductance is 5% of the primary inductance, then choosing V_CSN = 50V and ΔV_CSN = 2.5V, we get the following approximate values:

P_SN = 125mW

R_SN = 20kΩ

C_SN = 10nF

Finally, we consider the snubber diode (D_SN). This diode should have at least the same voltage rating as the MOSFET (Q_P). Although the average forward current is very low, it must have a peak repetitive current rating greater than I_LP(MAX).

Step 11: Calculate the Required Current-Sense Resistor

From Step 4, we have the maximum input power given by:

For the discontinuous flyback converter all the energy stored in L_P during the MOSFET on-time is transferred to the output during the MOSFET off-time (i.e., the full power transfer occurs during one switching cycle). Therefore, since E = P x t, we have:

The maximum input energy must be stored in L_P during the on-time of the MOSFET, so:

Therefore:

and

From Step 2 we have:

so

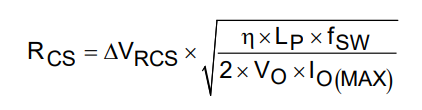

Substituting values for ΔV_RCS, η, L_P, f_SW, V_O, and I_O(MAX) we have:

R_CS ≈ 103mΩ

where ΔV_RCS = 100mV, the maximum CS current-limit threshold of the MAX17690. We can choose a standard 80mΩ resistor for R_CS.

Step 12: Calculate and Select the Input Capacitors

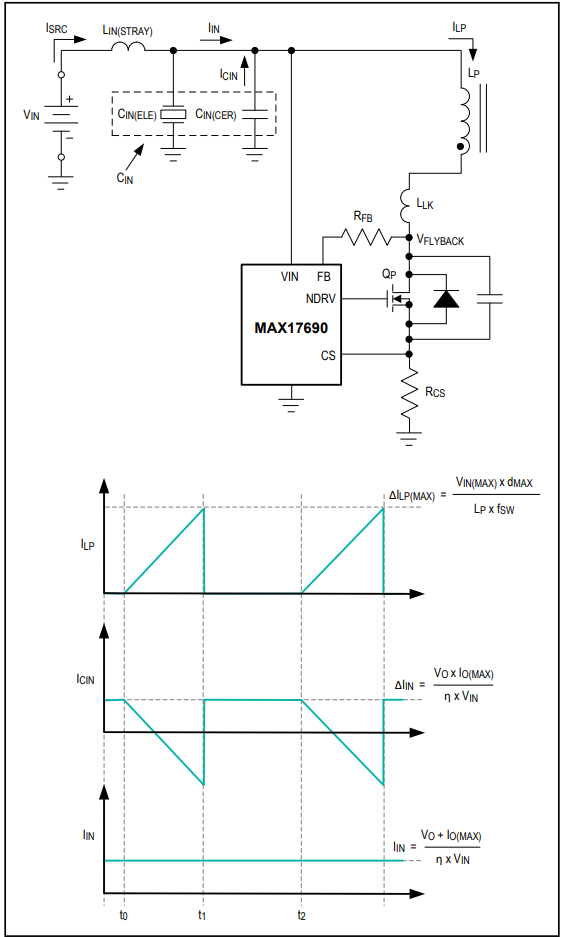

Figure 6 shows a simplified schematic of the primary side of the flyback converter and the associated current waveforms. In steady-state operation, the converter draws a pulsed high-frequency current from the input capacitor (C_IN). This current leads to a high-frequency ripple voltage across the capacitor according to the following expression:

It is the ripple voltage arising from the amp second product through the input capacitor.

During the Q_P on-time interval from t₀ to t₁, the capacitor is supplying current to the primary inductance L_P of the flyback transformer and its voltage is decreasing. During the Q_P off-time time interval from t₁ to t₂, no current is flowing in L_P, and current is being supplied to capacitor from the input voltage source. According to the charge balance law, the decrease in capacitor voltage during time t₀ to t₁ must equal the increase in capacitor voltage during time t₁ to t₂. So:

And finally, since:

we have:

For maximum high-frequency ripple voltage requirement ΔV_CIN, we can now calculate the required minimum C_IN.

An additional high-frequency ripple voltage occurs at the input due to the ESR of the input capacitor. This ripple voltage is generally much smaller than the amp second product voltage ripple and can be minimized by choosing a capacitor with low ESR.

There is high-frequency AC current flowing in C_IN, as shown in the center waveform of Figure 7. The selected capacitor must be specified to tolerate this maximum RMS current (I_CIN(RMS)). From the simplified schematic:

I_LP = I_IN + I_CIN

Therefore:

where:

and from Step 6:

So:

The maximum RMS current in the input capacitor occurs at d_MAX, ΔI_LP(MAX), I_O(MAX), and V_IN(MIN).

I_CIN(RMS) ≈ 0.38A_RMS

An additional high-frequency ripple voltage is present due to the RMS current flowing through the ESR of the capacitor. Ceramic capacitors are generally used for limiting high-frequency ripple due to their high AC current capability and low ESR.

In addition to using a ceramic capacitor for high-frequency input ripple-voltage control as described above, an electrolytic capacitor is sometimes inserted at the input of a flyback converter to limit the input voltage deviation when there is a rapid output load change. A 100% load change gives rise to an input current transient of:

During this transient, there is a voltage drop across any series stray inductance (L_IN(STRAY)) that exists between the input voltage source and the input capacitor of the power supply. So from:

we have:

We now have two values for C_IN. One for input high-frequency ripple-voltage control:

and a second for transient input voltage control:

If C_IN(ELE) > C_IN(CER), both ceramic and electrolytic capacitors must be used at the input of the power supply and ΔV_CIN should be limited to approximately 75mV to keep the AC current in the ESR of the electrolytic capacitor within acceptable limits. Otherwise, C_IN(ELE) is not required. In this case, the value of C_IN(CER) can be significantly reduced since there is no longer any requirement to limit ΔV_CIN to less than 60mV. Based on the current design specification, we have:

C_IN(CER) ≈ 14.5µF

and:

C_IN(ELE)  ≈ 23µH

Since C_IN(ELE) > C_IN(CER), an electrolytic capacitor is not required. We can now recalculate C_IN(CER) based on ΔV_CIN = 300mV:

C_IN(CER) ≈ 3µF

Step 13: Calculate and Select the Output Capacitor

High-frequency ripple voltage requirements are also used to determine the value of the output capacitor in a flyback converter.

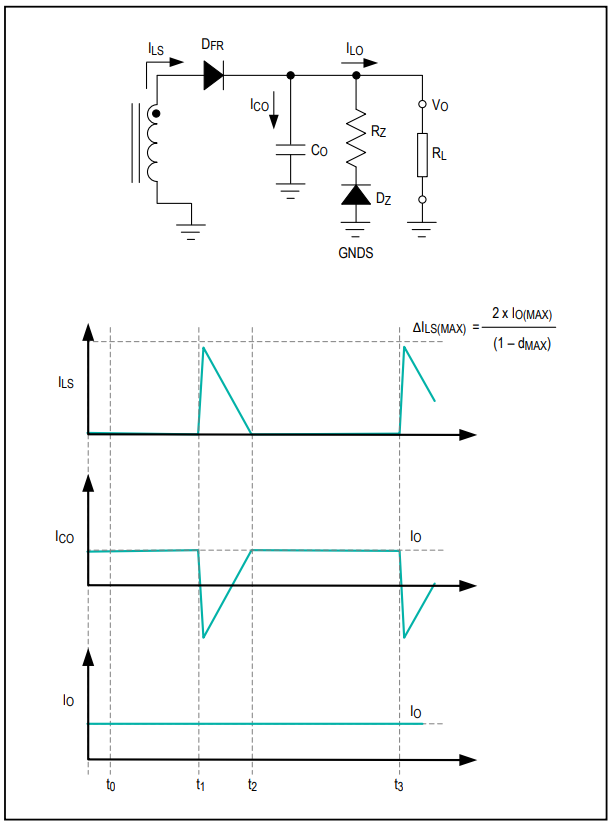

Figure 7 shows a simplified schematic of the secondary side of the flyback converter and the associated current waveforms.

In steady-state operation, the load draws a DC current from the secondary side of the flyback converter. By examining the secondary current waveforms, we see that C_O is supplying the full output current (I_O) to the load during the time interval from t₂ to t₃. During this time interval, the voltage across C_O decreases. At time t₃, Q_P has just turned off and the secondary rectifying diode DFR (or the secondary synchronous switch, Q_S) starts to conduct supplying current to the load and to C_O. The charging and discharging of C_O leads to a high-frequency ripple voltage at the output according to the following expression:

Again, as with the input capacitor, this is the ripple voltage arising from the amp second product through the output capacitor.

By the capacitor charge balance law, the decrease in capacitor voltage during time t₂ to t₃ must equal the increase in capacitor voltage during time t₁ to t₂. When the capacitor is discharging, we have:

Finally, since:

we have:

At maximum output current, the discontinuous flyback converter should ideally operate on the border between discontinuous and continuous conduction modes and so d_MAX should be substituted in the above equation.

For maximum high-frequency ripple voltage requirement ΔV_CO, we can now calculate the required minimum C_O:

C_O1 ≈ 20µF

C_O2 ≈ 10µF

C_O3 ≈ 1µF

C_O4 ≈ 10µF

C_O5 ≈ 1µF

As with the input capacitor, an additional high-frequency ripple voltage occurs at the output due to the output capacitor’s ESR and can be minimized by choosing a capacitor with low ESR.

Step 14: Setting Up the Switching Frequency

The MAX17690 can operate at switching frequencies between 50kHz and 250kHz (subject to the considerations in Step 3). A lower switching frequency optimizes the design for efficiency, whereas increasing the switching frequency allows for smaller inductive and capacitive components sizes and costs. A switching frequency of 128kHz was chosen in Step 3. Resistor R15 sets the switching frequency according to the following expression:

where R15 is in kΩ and f_SW is in Hz.

Step 15: Setting Up the Soft-Start Time

Capacitor C6 connected between the SS pin and SGND programs the soft-start time. A precision internal 5μA current source charges the soft-start capacitor C6. During the soft-start time, the voltage at the SS pin is used as a reference for the internal error amplifier during startup. The soft-start feature reduces inrush current during startup. Since the reference voltage for the internal error amplifier is ramping up linearly, so too is the output voltage during soft-start. The soft-start capacitor is chosen based on the required soft-start time (10ms) as follows:

C8 = 5 x t_SS ≈ 50nF

where C8 is in nF and t_SS is in ms. A standard 47nF capacitor was chosen.

Step 16: Setting Up the UVLO and OVI Resistors

A resistor-divider network of R5, R6, and R7 from V_IN to SGND sets the input undervoltage lockout threshold and the output overvoltage inhibit threshold. The MAX17690 does not commence its startup operation until the voltage on the EN/UVLO pin (R7/R6 node) exceeds 1.215V (typ). When the voltage on the OVI pin (R6/R5 node) exceeds 1.215V (typ), the MAX17690 will stop switching, thus inhibiting the output. Both pins have built-in hysteresis to avoid unstable turn-on/turn-off at the UVLO/EN and OVI thresholds. After the device is enabled, if the voltage on the UVLO/EN pin drops below 1.1V (typ), the controller will turn off, and after the device is OVI inhibited, it will turn back on when the voltage at the OVI pin drops below 1.1V (typ). Whenever the controller turns on, it will go through the soft-start sequence. For the current design, resistors R5 = 10kΩ, R6 = 105kΩ, and R7 = 392kΩ give rise to an UVLO/EN threshold of 5.36V and an OVI threshold of 61.6V.

Step 17: Placing Decoupling Capacitors on V_IN and INTVCC

As previously discussed, the MAX17690 no-opto flyback controller compares the voltage V_FLYBACK to V_IN. This voltage difference is converted to a proportional current that flows in R5. The voltage across R5 is sampled and compared to an internal reference by the error amplifier. The output of the error amplifier is used to regulate the output voltage. The V_IN pin should be directly connected to the input voltage supply. For robust and accurate operation, a ceramic capacitor (C6 = 1µF) should be placed between V_IN and SGND as close as possible to the IC.

V_IN powers the internal low dropout regulator of the MAX17690. The regulated output of the LDO is connected to the INTVCC pin. A ceramic capacitor (C7 = 2.2µF, min) should be connected between the INTVCC and PGND pins for the stable operation over the full temperature range. Place this capacitor as close as possible to the IC.

Step 18: Setting Up the Feedback Components

R_SET, R_FB, R_RIN, R_VCM, and R_TC are all critically important to achieving optimum output voltage regulation across all specified line, load, and temperature ranges.

R_SET resistor: This resistor value is optimized based on the IC’s internal voltage to current amplifier and should not be changed.

R10 = R_SET = 10kΩ

R_FB resistor: The feedback resistor is calculated according to the following equation:

From the MAX17690 data sheet, V_SET = 1V. The two resistors R8 = 100kΩ and R9 = 27kΩ form R_FB. Using one high-value resistor and one low-value resistor in series allows slight adjustment to the series resistance combination so that the output voltage can be fine-tuned to its required value, if necessary.

R_RIN resistor: The internal temperature compensation circuitry requires a current proportional to V_IN. R_RIN is calculated according to the following equation:

R_RIN ≈ 0.6 x R_FB

R_VCM resistor: The MAX17690 generates an internal voltage proportional to the on-time volt-second product. This enables the device to determine the correct sampling instant for V_FLYBACK during the Q_P off-time. Resistor R6 is used to scale this internal voltage to an acceptable internal voltage limit in the device. To calculate the resistor, we must first calculate a scaling constant as follows:

where d_MAX = 0.65 and f_SW = 100,000Hz. After K_C is calculated, the R12 value can be selected from the table below by choosing the resistance value that corresponds to the next largest K_C.

In the present case, R12 = 121kΩ.

R_TC resistor: The value of RTC can then be calculated using the previous expression, restated below:

This completes the setup of the MAX17690 no-opto flyback controller.
