Overview

Features and Benefits

  • CoolStep™
  • Short Detection
  • SpreadCycle™
  • Stall Detection
  • StealthChop2™
  • StallGuard4™
  • MicroPlyer™
  • 1 to 256 Microsteps
  • 2ARMS, 28V

Product Details

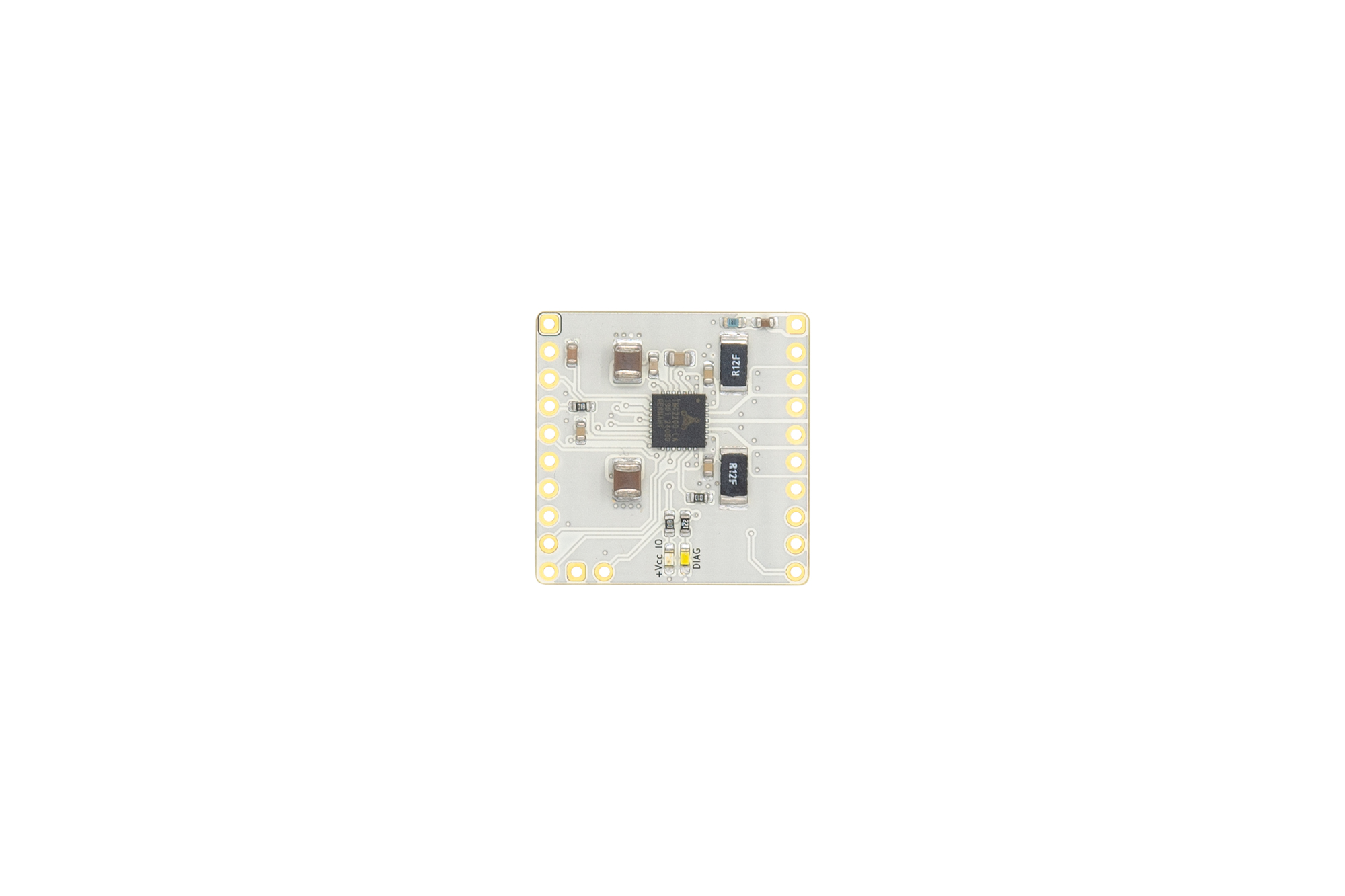

The TMC2209 breakout board is a development board with the dedicated TMC2209-LA chip. It is designed to give users the chance to rapidly prototype their applications - making it possible to immediately check how the motor performs with TMC chips while developing the application's software.

Applicable Parts

Documentation & Resources

  • View All (3)
  • Data Sheet (1)
  • Evaluation Design File (1)
  • Application Note (1)
    • Document Type
