Overview
Features and Benefits
- Compatible with Arduino
- Compatible with Trinamic breakout boards (BOBs)
- Reliable connection with screw clamps
- Soldering options
Product Details

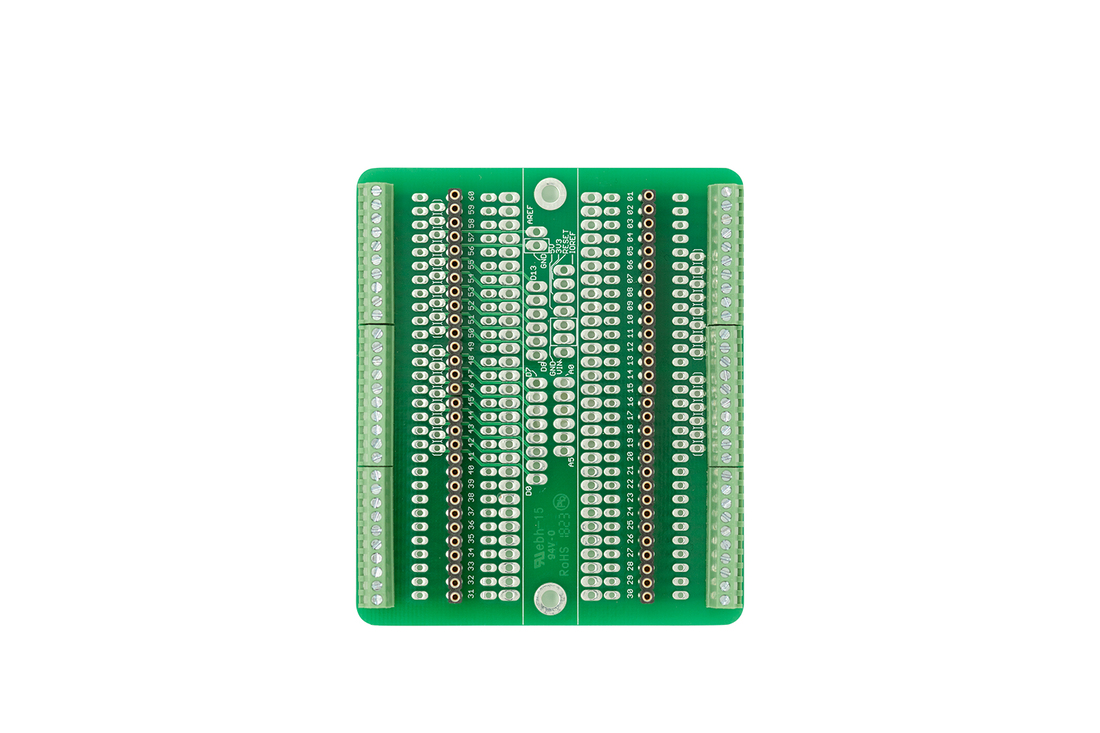

TMC-Schraubstock carrier board provides a simple and easy to use test platform for all available ADI TRINAMIC breakout boards (BOBs), which allows easy testing within your setup as well as direct connection to an Arduino.
The board is provided unpopulated but with different connectors and headers included for full freedom of use.
Documentation & Resources
-
TMC Schraubstock V10 Data Sheet5/23/2018PDF4M
-
Bom Tmc Schraubstock - Design Files (Rev. 11)5/23/2018XLSX10K
-
Tmc Schraubstock 1 Ecad - Design Files (Rev. 1)5/23/2018ZIP37K
-
Gerber Schraubstock - Design Files (Rev. 11)5/23/2018ZIP40K
